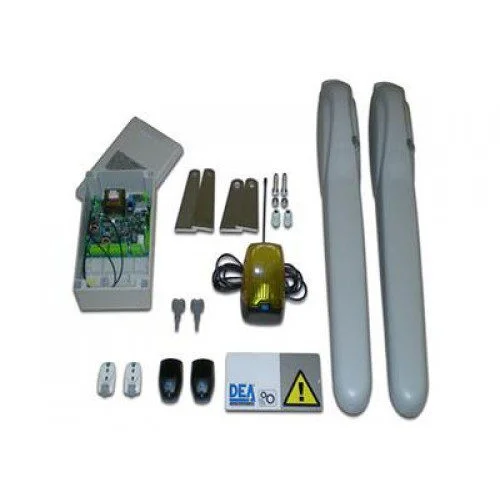

DEA MAC swing gate motor kit with twin operators, control box, remotes and safety accessories
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

DEA MAC Swing Gate Motor Kit

230V electromechanical swing gate ram kit for leaves up to 3m and 400kg, with 334mm stroke, self-locking operation, DE@NET control board, LINEAR photocells, receiver, blinker light and brackets.





AED 2,575

Product price:AED 2,575
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

DEA MAC Swing Gate Motor is a residential electromechanical swing gate automation kit for Abu Dhabi customers who need reliable gate movement for daily use. The DEA MAC range is designed for swing gate leaves up to 3 m long and weighing up to 400 kg. It is available in 230 V and 24 V versions, with compact ram-style operators, self-locking operation, robust mechanical gears, and compatibility with DEA DE@NET control boards. This kit is suitable for residential and apartment-style gate installations where smooth operation, safety accessories, and easy manual release are required.

Key Features and Technical Specifications

  • Brand: DEA SYSTEM
  • Model: MAC
  • Product type: Electromechanical ram operator for swing gates
  • Application: Residential and apartment swing gates
  • Maximum gate leaf length: Up to 3 m
  • Maximum gate leaf weight: Up to 400 kg
  • Versions: Available in 230 V and 24 V
  • Standard MAC motor power supply: 230 V AC ±10%, 50/60 Hz
  • Maximum power absorption: 300 W
  • Maximum thrust: 1650 N
  • 90° opening time: 16 seconds
  • Duty cycle: 18 cycles/hour
  • Maximum cycles in 24 hours: 90
  • Built-in capacitor: 8 µF
  • Operating temperature: -20°C to +50°C
  • Motor thermal protection: 150°C
  • Weight with packing: 8.8 kg
  • Sound pressure: Less than 70 dBA
  • Protection level: IPX4
  • Stroke: 334 mm
  • Opening angle: Up to 110°
  • Fixing plate to be welded: Included with all models
  • Mechanical stops: Optional
  • Adjustable fixing plates: Optional
  • Control board compatibility: DEA DE@NET range
  • NETLINK compatibility: Supported with compatible DEA devices

Use Cases

  • Residential swing gates
  • Apartment entrance gates
  • Villa swing gate automation
  • Light commercial gate entrances
  • Parking entrance gates
  • Double-leaf swing gate installations
  • Gate automation projects requiring compact ram operators

Compatibility and Installation Notes

The DEA MAC Swing Gate Motor is compatible with swing gate leaves up to 3 m and 400 kg, depending on gate structure, hinge condition, wind exposure, and installation geometry. Correct bracket positioning, welding of fixing plates, safe wiring, control board programming, photocell alignment, force adjustment, and final safety testing are required for reliable operation. Professional installation is recommended because swing gate automation must be installed according to safety standards and manufacturer instructions. For official technical details, check the DEA MAC product brochure before installation or specification approval.

Packing Includes

  • 2 x DEA MAC swing gate motors
  • 1 x Integrated control unit
  • 2 x DEA GT2 remote controls
  • 1 x LINEAR pair of photocells
  • 1 x Built-in receiver
  • 1 x Blinker light
  • 1 x Bracket
  • 1 x Push button

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable gate automation products with local support, product guidance, and after-sales assistance. We help customers choose the right swing gate motor kit for smooth performance, safe operation, and long-term reliability.

Buy DEA MAC Swing Gate Motor today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “DEA MAC Swing Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The DEA MAC is a ram-style electromechanical operator — a compact linear motor where the output rod (ram) extends and retracts to push and pull the gate leaf through its arc. Unlike articulated arm motors (DEA GEKO) that use a folding arm, or underground motors (DEA GHOST 100) that are concealed below ground, the MAC’s ram mounts on the gate pillar and attaches directly to the gate leaf via a bracket and welded fixing plate. The compact ram body keeps the motor close to the pillar face, making it suitable for installations with limited side clearance.

The DEA MAC includes a fixing plate that must be welded to the gate leaf during installation — the only swing gate motor in the POWERgate Abu Dhabi range with a welded mounting requirement. Welding ensures the bracket cannot loosen under repeated 1650N thrust cycles, providing a permanent, vibration-proof fixing point. For Abu Dhabi gates made from welded steel or iron frames, this is straightforward for a qualified metal fabricator. However, aluminium profile gates or powder-coated gates require care to avoid damaging the finish during welding, and professional installation is essential.

The DEA MAC carries an IPX4 rating — the X indicates solid particle (dust) protection has not been formally tested or rated, while 4 confirms water splash protection from any direction. This is the same approach as the BFT PHOBOS AC range: dust protection exists in practice but is not certified. For Abu Dhabi’s outdoor environment where fine sand and dust are constant, the DEA MAC should be installed on a sheltered pillar face with reasonable cover rather than fully exposed. Regular cleaning of the ram and bracket area helps maintain long-term performance.

The DEA MAC and DEA GHOST 100 are both DEA motors for 3.0–3.5m/400kg gates, but operate very differently. The MAC is a surface-mounted 230V ram operator at 300W/1650N/IPX4 with a welded fixing plate and 110° opening. The GHOST 100 is a concealed underground motor at 250W/250Nm/IP67 with built-in mechanical stops, 180° opening capability, and three duty cycle options. Choose the MAC for a visible surface installation with straightforward wiring. Choose the GHOST 100 where gate aesthetics require a completely concealed underground motor.

The DEA MAC supports NETLINK — DEA SYSTEM’s proprietary digital network protocol for connecting gate automation devices. With a compatible DEA NETLINK interface, the MAC’s integrated control board can be networked with intercoms, access control readers, GSM openers, and monitoring systems over a single cable bus, rather than independent wiring for each device. This expands the MAC’s capability beyond simple remote-control gate operation into a fully networked access control system. The DE@NET control board family supports NETLINK alongside the standard kit accessories: 2 GT2 remotes, LINEAR photocells, blinker, and push button.

The DEA MAC carries a 24-month manufacturer warranty. The most critical installation requirement is the welded fixing plate: an incorrectly welded or inadequately penetrating weld will fail under the 1650N thrust, causing bracket detachment and motor damage. The gate leaf must also move completely freely by hand before installation — stiff hinges cause the 300W motor to overload repeatedly and trigger the 150°C thermal protection. The IPX4 housing requires a sheltered position. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com for warranty support.
