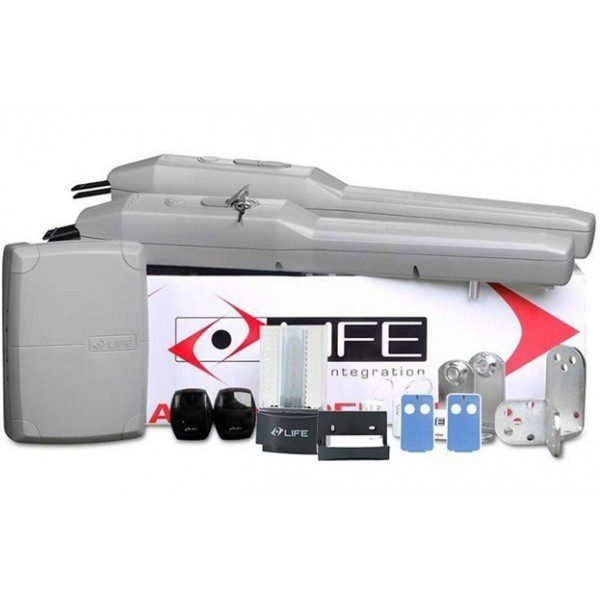

LIFE Optimo OP3 Swing Gate Motor

LIFE’s Optimo range is confirmed available in both 230V AC and 24V DC versions. The 24V version connects via a step-down transformer or dedicated 24V supply and enables battery backup integration — the gate continues operating during Abu Dhabi power cuts without manual release. The 24V motor also produces lower acoustic noise per cycle than the 230V AC version. For Abu Dhabi villa installations where power reliability or quiet operation is a priority, the 24V Optimo variant is the preferred specification. POWERgate Abu Dhabi can confirm current availability of the 24V OP3 version and compatible 24V control boards.

The LIFE Optimo OP3 UNI’s release mechanism is described as protected against water and foreign bodies — the manual release access point on the motor housing has a sealed cover preventing water ingress and debris from jamming the release mechanism. In Abu Dhabi’s outdoor environment where dust, sand, and occasional rain can clog unprotected release points over time, a sealed release cover ensures the manual override remains operable during a power cut years after installation. This is a design detail not always published on competing motors and reflects LIFE’s focus on long-term outdoor reliability.

LIFE explicitly states that for gate leaves exceeding 3.0 metres, an electric lock is compulsory on the Optimo OP3 system — not recommended, but mandatory. Beyond 3m, the lever force a gate leaf generates at the latch point exceeds what the OP3’s internal mechanical self-lock can reliably hold under wind load or physical pressure. For Abu Dhabi sites with windy exposure or solid-panel gate designs that catch wind, LIFE also recommends an electric lock even for leaves within the 3m limit. This is a more specific and firm guidance than most manufacturers publish, reflecting LIFE’s conservative engineering approach.

The LIFE Optimo OP3 UNI delivers 1800N of linear thrust through its 325mm rod stroke. For a standard Abu Dhabi villa gate — welded square-hollow steel or aluminium profile, up to 3.0m leaf, well-balanced on quality hinges — 1800N is adequate. The no-encoder irreversible motor relies on mechanical stops and the control board’s force management to protect the gate from over-travel. In windy conditions or with heavier solid-panel gates, the 200N difference from the 2000N variant in the other OP3 kit becomes relevant — the higher-thrust model is recommended for these conditions to maintain a comfortable force margin.

The LIFE Optimo OP3 carries a 24-month manufacturer warranty. The gate leaf weight maximum is not published by LIFE for this model — the correct weight limit must be verified against LIFE’s limit-on-use chart before installation. In wind-exposed Abu Dhabi locations, reduce usage limits and fit an electric lock even within the 3m specification. The pre-wired 1m connector cables must reach the GE UNI RS DL control unit without extension; plan cable routing carefully during bracket installation. The IP54 rating requires a sheltered pillar position away from direct water spray. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
