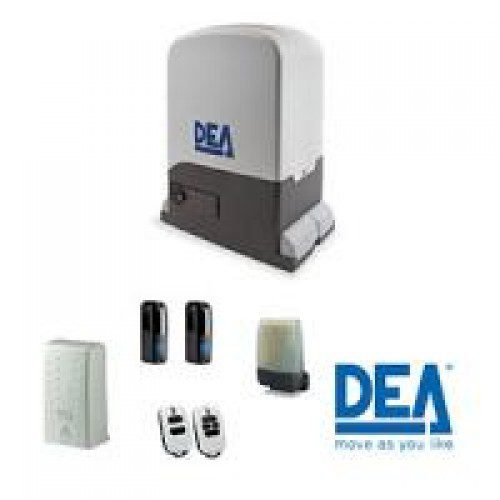

DEA REV KIT

DEA Sliding Gate Motor in UAE.

DEA REV KIT 1400 KG

DEA REV 1400 Kg Sliding Gate Motor in UAE.

• REV Automation for industrial sliding gates up to 1400 kg
• 230V ~ operators with control board, limit switches and encoder
• COD. 616000.
• Self-locking with limit switches
• Speed adjustment and slow down in opening and closing.
• Motor control by encoder and obstacle detection.

Technical info: REV220.

• Motor power supply (V) 230V ~ ± 10 % (50/60 Hz).
• Maximum power absorption (W) 500.
• Max thrust (N) 900.
• Duty cycle (cycles/hours) for an 8m leaf length : 22 for gates up to 1400kg.
• N. max. cycles in 24h. for an 8m leaf length: 220 for gates up to 1400kg.
• Built-in capacitor (μF) 14.
• Operating temperature (°C) -20 ÷ 50.
• Motor thermal protection (°C) 150.
• Speed (m/min) 10.
• Standard pinion Z18.
• Weight with packing (Kg) 18.

What’s Included

• 1 x REV220 Motor with electromechanical limit switch.
• 1 x NET230N Integrated control unit.
• 2 x Dea Gt2 Remotes control.
• 1 x LINEAR Pair of Photocells.
• 1 x Built in Receiver.
• 1 x Blinker Light
• 1 x 4m Nylon Rack.
• 1 x Push Button.
