ERREKA ARES Swing Gate Motor

Product Overview

ERREKA ARES Swing Gate Motor is a 230Vac residential electromechanical operator for swing gates up to 4 m per leaf. It is suitable for Abu Dhabi customers who need a simple, powerful, and cost-effective swing gate automation solution. The ARES system supports pedestrian opening, obstacle detection, practical key unlocking, electronic soft stop, and reliable operation in temperatures from -25°C to +60°C. With 2200N maximum force, IP43 protection, and locking operation, it is designed for residential gate automation where professional installation and correct gate sizing are required.

Key Features and Technical Specifications

• Product name: ERREKA ARES
• Model / kit: ARES76
• Operator type: Residential electromechanical swing gate motor
• Power supply: 230Vac
• Maximum gate length: 3 m to 4 m, depending on motor version
• Recommended version for gates over 2.5 m: 400 mm spindle model
• BGRBI-BGRBD version: 300 mm spindle, 100° maximum opening angle, 18 mm/s speed, for 3 m long doors
• BGRBIL-BGRBDL version: 400 mm spindle, 120° maximum opening angle, 12 mm/s speed, for 4 m long doors
• Maximum gate weight: 300 kg
• BGRB: Maximum weight 700 kg for gates up to 1.7 m long
• BGRRBL: Maximum weight 700 kg for gates up to 2.7 m long
• Maximum force: 2200N
• Locking: Yes
• Protection class: IP43
• Maximum opening angle: 100°–120°
• Pedestrian opening option: Yes
• Obstacle detection: Yes
• Practical key unlocking system: Yes
• Electronic soft stop: Yes
• Operating temperature: -25°C to +60°C
• Programming: Straightforward programming
• Installation type: Simple operator with easy assembly
• Electrolock note: Electrolock is obligatory in unlocking models, and in locking models when leaves are over 1.80 m long

Use Cases

• Residential swing gates
• Villa entrance gates
• Private driveway gates
• Residential parking entrances
• Light commercial swing gates within approved limits
• Swing gates requiring pedestrian opening
• Gates requiring a simple 230Vac electromechanical operator

Compatibility and Installation Notes

ERREKA ARES Swing Gate Motor is compatible with residential swing gates up to 4 m per leaf when the correct motor version, spindle length, and gate weight limits are selected. The 400 mm spindle version is recommended for gates over 2.5 m, while electrolock requirements must be checked carefully, especially for unlocking models and locking models with leaves over 1.80 m. Installation requires correct bracket positioning, gate alignment, control panel wiring, photocell connection, force adjustment, and safety testing. Professional installation is recommended to ensure smooth operation, safe obstacle detection, correct soft-stop setup, and long-term reliability. For more details, check the official ARES motor product information.

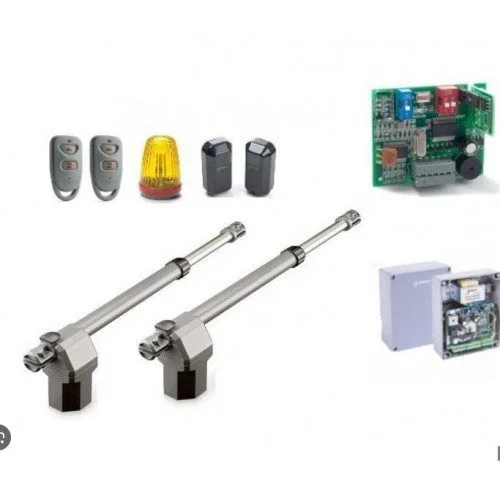

Packing Includes

• 2 x ARES motors: BGRBIL + BGRBDL
• 1 x VIVO-M201 control panel
• 1 x IRRE2-250 receiver
• 2 x IRIS transmitters IR02
• 1 x FT06 photocell
