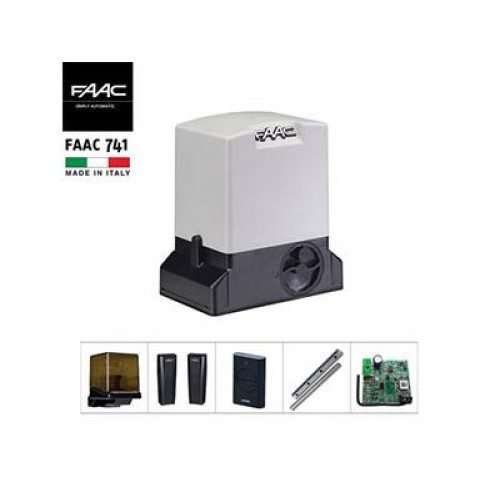

FAAC 741 sliding gate motor kit with photocells, receiver and accessories
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

FAAC 741 Sliding Gate Motor 900kg

230V sliding gate gearmotor for gates up to 900kg, with 500W power, 12 m/min speed, magnetic limit switch, optical encoder, IP44 protection, Z16 module 4 pinion and 740D control board.



AED 1,675

Product price:AED 1,675
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

FAAC 741 motor is a 230V sliding gate gearmotor designed for residential sliding gates up to 900kg. It is suitable for Abu Dhabi customers who need reliable automatic gate operation for villas, private entrances, and controlled vehicle access points. The FAAC 741 E Z16 version includes a built-in prewired control unit, simplified display programming, encoder-based obstacle reverse function, and manual release for operation during power failure. Its non-reversing gearmotor design helps keep the gate mechanically locked without requiring an electric lock in standard installations.

Key Features and Technical Specifications

  • Product model: FAAC 741 E Z16
  • Product type: 230V sliding gate gearmotor
  • Part number: 1097815
  • Application: Residential sliding gates
  • Maximum gate weight: 900kg
  • Maximum leaf width: 15m
  • Power supply: 220–240V AC, 50/60Hz
  • Power consumption: 500W
  • Maximum speed: 12 m/min
  • Use frequency: 40%
  • Limit switch type: Inductive / magnetic limit switch information appears in official FAAC product data
  • Obstacle detection: Encoder
  • Programming: Simplified display programming
  • Control unit: Built-in prewired control unit
  • Anti-crushing protection: Electronic torque control
  • Manual operation: Key-protected release device for power failure use
  • Pinion: Z16 module 4
  • Protection rating: IP44
  • Operating ambient temperature: -20°C to +55°C
  • Thermal protection: 140°C
  • Gearmotor type: Non-reversing
  • Electric lock requirement: Not required for standard non-reversing operation

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Private parking entrances
  • Controlled home access points
  • Light commercial gate automation
  • Abu Dhabi property entrance automation
  • Sliding gate replacement motor projects

Compatibility and Installation Notes

The FAAC 741 motor is compatible with sliding gates up to 900kg and up to 15m leaf width, provided the gate structure is mechanically smooth, correctly aligned, and fitted with suitable rack, safety devices, and end stops. Installation requires proper 230V electrical supply, secure foundation fixing, accurate rack-to-pinion alignment, photocell safety positioning, force adjustment, and testing of obstacle detection. For more installation and technical details, refer to the official FAAC technical information. Professional installation is recommended because incorrect wiring, rack alignment, or safety-device setup can reduce performance and create unsafe gate movement.

Packing Includes

  • 1 x FAAC 741 E Z16 gearmotor with electronic control unit and integrated encoder
  • 4 x Nylon rack, 1 meter each
  • 1 x RP 433 SLH plug-in receiver, 1 channel
  • 1 x XLED flashing light
  • 1 x Lock with key
  • 1 x Pair of FAAC XP 20D photocells
  • 1 x FAAC XT2 433 SLH LR two-channel transmitter
  • 1 x Push button

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies FAAC gate automation products with local support, product guidance, and installation-focused assistance for reliable sliding gate performance. We help Abu Dhabi customers choose the right motor, accessories, and safety setup for smooth gate operation.

Buy FAAC 741 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “FAAC 741 Sliding Gate Motor 900kg”

Your email address will not be published. Required fields are marked *

Both the FAAC 741 and the FAAC 740 use 230V, 12 m/min, Z16 M4 pinion, IP44, +55°C, encoder obstacle detection, SLH radio, XP 20D photocells, and XT2 LR transmitter. The 741 steps up to 900 kg at 500W, 40% duty, simplified display programming, and a non-reversing gearmotor design. The 740 handles 500 kg at 350W and 30% duty. The 741 explicitly states no electric lock is required for standard installations. At AED 1,675, it is AED 400 more than the 740 for double the gate weight capacity.

The FAAC 741’s non-reversing gearmotor means the internal gearbox cannot be back-driven by external force — a person or vehicle cannot push or pull the gate along its track without engaging the manual release. This passive mechanical locking replaces the function of an electric lock on a sliding gate. FAAC explicitly states that an electric lock is not required for standard non-reversing operation, saving the cost of an electric lock and its wiring. For Abu Dhabi residential gates where security against forced manual movement is important, the non-reversing design provides passive gate security without additional hardware.

The FAAC 741 includes a simplified display programming interface on the built-in prewired control unit, allowing force adjustment, operating parameters, and encoder settings to be configured through a readable display rather than trimmers or jumpers alone. The FAAC 740 uses board-based adjustment without a dedicated display. For Abu Dhabi installers commissioning the 741, the display reduces the risk of misconfiguring force limits, simplifies post-installation adjustments, and makes the system more accessible for future maintenance without specialist equipment or board disassembly.

The FAAC 741’s 40% duty cycle (S3) means the motor can run for 24 minutes of every hour, compared to the FAAC 740’s 30% (18 minutes per hour). For a 900 kg residential villa gate in Abu Dhabi averaging 15–25 gate cycles per day, 40% provides a comfortable margin. At 12 m/min with a typical 4–5m gate, each full cycle takes approximately 40–50 seconds of motor run time, meaning 40% duty supports well over 50 cycles per hour before thermal rest is needed. Standard Abu Dhabi residential use remains well within this limit.

The FAAC 741 carries a 24-month FAAC manufacturer warranty. Kit includes: 1 x FAAC 741 E Z16 gearmotor with prewired control unit and integrated encoder, 4 x 1m nylon rack, 1 x RP 433 SLH 1-channel receiver, 1 x XLED flashing light, 1 x lock with key, 1 x FAAC XP 20D photocell pair, 1 x XT2 433 SLH LR 2-channel transmitter, and 1 x push button. Foundation base plate must be sourced separately. An electric lock is not required in standard non-reversing installations. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
