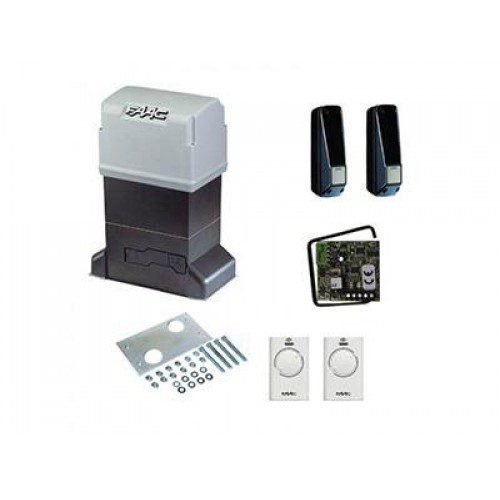

FAAC 746 sliding gate motor kit with photocells, receiver, remotes and hardware
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

FAAC 746 ER Z16 Sliding Gate Motor 600 Kg

230V electromechanical sliding gate operator for leaves up to 600 kg, with oil-bath gearmotor, 780D control board, encoder obstacle detection, magnetic limits, IP44 protection, and rack drive.



AED 1,800

Product price:AED 1,800
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

FAAC 746 gate motor is a 230V electromechanical sliding gate operator designed for gates up to 600 kg. It is suitable for Abu Dhabi customers who need reliable automation for residential, apartment, light commercial, or industrial sliding gate applications. The FAAC 746 ER Z16 uses an oil-bath gearmotor, encoder obstacle detection, magnetic limit switch system, and 780D control board for controlled gate movement. Its non-reversing design helps keep the gate mechanically locked when the motor is not operating, reducing the need for an additional electric lock in standard installations.

Key Features and Technical Specifications

  • Brand: FAAC
  • Product model: 746 ER Z16
  • Product type: Electromechanical sliding gate operator
  • Application: Sliding gates operated by rack drive
  • Maximum leaf weight: 600 kg
  • Maximum leaf length: 40 m
  • Power supply voltage: 220–240V AC, 50/60 Hz
  • Maximum power: 400W
  • Maximum thrust force: 810N
  • Pinion: Z16 Module 4
  • Leaf speed: 9.6 m/min
  • Use frequency: 70% at 25°C, 50% at 55°C
  • Ambient operating temperature: -20°C to +55°C
  • Protection rating: IP44
  • Gearmotor weight: 14 kg
  • Dimensions: 275 x 191 x 336 mm
  • Built-in electronic board: 780D with display and programming buttons
  • Obstacle detection: Encoder-based adjustable sensitivity
  • Limit switch type: Magnetic limit switches
  • Mechanical force limitation: Twin-disk clutch in oil bath
  • Manual release: Key-protected release system
  • Foundation plate: Supplied separately by manufacturer
  • Rack: Supplied separately by manufacturer

Use Cases

Compatibility and Installation Notes

FAAC 746 gate motor is compatible with horizontal sliding gates within the manufacturer’s rated limits, especially the 746 ER Z16 version for gates up to 600 kg using a Module 4 rack. Installation requires a correctly prepared gate structure, smooth gate movement, proper rack alignment, magnetic limit switch positioning, safe electrical wiring, and suitable safety accessories based on site risk assessment. The manufacturer states that a foundation plate and rack are required but supplied separately. For correct setup and safety guidance, refer to the official FAAC installation manual. Professional installation is recommended to ensure safe force adjustment, obstacle detection, electrical protection, and long-term motor reliability.

Packing Includes

  • FAAC 746 ER Z16 gearmotor
  • Integrated 780D electronic control board with protective cover
  • Magnetic limit switch sensor
  • Z16 Module 4 pinion with hand guard
  • Key release system
  • Gearmotor bracket guards
  • Cable glands for board compartment
  • Casing screws with screw caps
  • Terminal boards
  • Earth cable lug
  • Adhesive hazard warning sign
  • Opening and closing magnetic limit switches with magnets, spacers, mounting hardware, and screws

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies genuine automation solutions with local technical support, product guidance, and installation assistance for sliding gate systems. We help customers choose the correct FAAC gate motor based on gate weight, usage level, and site requirements.

Buy FAAC 746 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “FAAC 746 ER Z16 Sliding Gate Motor 600 Kg”

Your email address will not be published. Required fields are marked *

The FAAC 746 ER Z16 and the FAAC 741 are both 230V non-reversing FAAC sliding gate motors with IP44 and encoder obstacle detection. The 746 ER steps up with oil-bath gearmotor, twin-disk clutch mechanical force limiter, 780D control board, 810N thrust, 40m max leaf, 70% duty at 25°C, and 9.6 m/min. The 741 handles 900 kg at 12 m/min, 40% duty, 500W, with a complete accessory kit. The 746 ER is the heavy-duty oil-bath FAAC motor for 600 kg; the 741 is the residential 900 kg complete kit option.

The FAAC 746 ER’s oil-bath gearmotor immerses all gear contact surfaces in oil, providing consistent lubrication at the higher duty cycles the 746 is designed for. Unlike grease-lubricated motors (740, 741), oil maintains constant film coverage under sustained load at elevated temperatures. The twin-disk clutch in oil bath is a mechanical force limitation device: two friction discs transmit motor torque to the output shaft, but slip at a pre-set torque threshold, cutting gate force before the encoder’s electronic obstacle detection activates. This provides a dual-layer force protection system specific to the 746 ER.

FAAC specifies the 746 ER’s duty cycle as 70% at 25°C and 50% at 55°C — the only motor in the POWERgate Abu Dhabi range to publish temperature-dependent duty ratings. At Abu Dhabi’s summer ambient temperatures of 45–48°C, the motor operates closer to the 50% ceiling rather than the 70% specification. Buyers should plan gate cycle frequency based on the 50% figure for Abu Dhabi summer conditions rather than the 70% ambient-20°C figure, as cycle rates that appear comfortable in cooler conditions can cause thermal stress during peak summer months.

The FAAC 746 ER Z16’s 40m maximum leaf length is the longest in the FAAC sliding gate range in the POWERgate Abu Dhabi catalogue, significantly exceeding the FAAC 740 and 741 at 15m. A 40m gate is an extraordinary industrial specification, typically found at Abu Dhabi perimeter boundary gates, wide logistics yard entrances, or military compound access roads. The 746 ER’s 810N maximum thrust is also the highest published FAAC sliding gate force, providing the rack-engagement force needed to maintain reliable movement across a long, heavy track installation.

The FAAC 746 ER Z16 carries a 24-month FAAC manufacturer warranty. Standard packing includes: 1 x 746 ER Z16 oil-bath gearmotor, 780D control board with cover, magnetic limit switches with mounting hardware, Z16 M4 pinion with hand guard, key release system, bracket guards, cable glands, and earth lug. Foundation plate and rack are supplied separately by FAAC and must be ordered alongside. Photocells, remote controls, receiver, flashing light, and push button are not included. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
