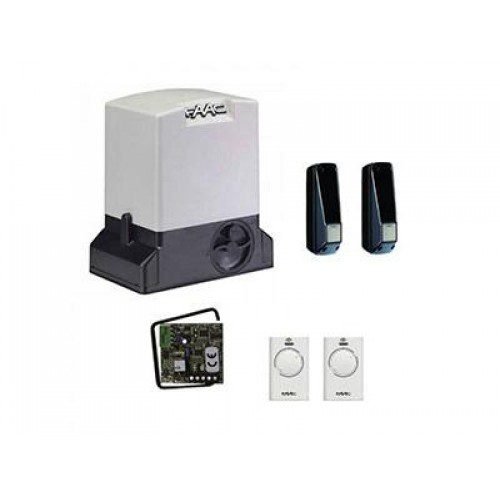

FAAC 740 sliding gate motor kit with photocells, remote controls and receiver
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

FAAC 740 500 KG Sliding Gate Motor

230V electromechanical sliding gate gearmotor for gates up to 500 kg, with 740D control unit, optical encoder, magnetic limit switch, Z16 module 4 pinion, IP44 protection and 12 m/min leaf speed.





AED 1,275

Product price:AED 1,275
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

FAAC 740 Sliding Gate Motor is a 230V gearmotor designed for residential sliding gates up to 500 kg in Abu Dhabi. It offers reliable gate automation with a 12 m/min leaf speed, magnetic limit switch, optical encoder, and incorporated 740D electronic equipment. The motor supports smooth opening and closing, while the encoder helps manage obstacle detection and slowdown during operation. With IP44 protection, 30% use frequency, and a compact 295 x 181 x 320 mm body, this sliding gate motor is suitable for villas, private entrances, and light commercial access points where dependable FAAC automation is required. A similar 500kg sliding gate motor is the MOTORLINE BRAVO500.

Key Features and Technical Specifications

  • Brand: FAAC
  • Product model: FAAC 740
  • Gearmotor model: 740 E Z16 with encoder
  • Product type: 230V sliding gate gearmotor
  • Maximum leaf weight: 500 kg
  • Maximum leaf width: 15 m
  • Leaf speed: 12 m/min
  • Use frequency: S3 – 30%
  • Power supply voltage: 220-240V~ 50/60 Hz
  • Electric motor: Asynchronous single phase
  • Maximum power: 350 W
  • Maximum torque: 18 Nm
  • Maximum expressed force: 450 N
  • Reduction ratio: 1:25
  • Limit switch: Magnetic
  • Pinion: Z16 module 4
  • Encoder: Optical encoder
  • Force adjustment: Via electronic control board
  • Operating ambient temperature: -20°C to +55°C
  • Thermal protection: 140°C
  • Protection class: IP44
  • Weight: 10 kg
  • Dimensions: 295 x 181 x 320 mm
  • Electronic equipment: 740D incorporated
  • Speed adjustment and motor control: No

Use Cases

Compatibility and Installation Notes

The FAAC 740 Sliding Gate Motor is compatible with sliding gates up to 500 kg and up to 15 m leaf width, provided the gate track, rack, wheels, end stops, foundation base, and power supply are correctly prepared. Installation should include proper mechanical alignment, secure rack positioning, limit switch setup, photocell safety connection, force adjustment, and testing of the encoder reverse function. Professional installation is recommended to protect the motor, improve safety, and ensure smooth long-term operation. For more official product and installation details, refer to the FAAC technical page.

Packing Includes

  • 1 x FAAC 740 E Z16 gearmotor with electronic control unit and integrated encoder
  • 4 x Nylon rack, 1 metre each
  • 1 x Plug-in receiver 1 channel RP 433 SLH
  • 1 x XLED flashing light
  • 1 x Lock with key
  • 1 x Pair of FAAC XP 20D photocells
  • 1 x 2-channel transmitter XT2 433 SLH LR
  • 1 x Push button

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies FAAC automation products with local support, product guidance, and installation-focused assistance for customers who need reliable sliding gate motor solutions. We help buyers choose the correct accessories and setup for safe, smooth, and long-lasting gate automation.

Buy FAAC 740 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “FAAC 740 500 KG Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The FAAC 740 (model 740 E Z16) is a 230V asynchronous single-phase gearmotor for residential sliding gates up to 500 kg and 15m leaf. It delivers 450N maximum force at 12 m/min through a 1:25 reduction ratio and Z16 M4 pinion, with an incorporated 740D electronic control unit, optical encoder for obstacle detection and slowdown, and magnetic limit switch. At AED 1,275 with a complete kit, it is the entry-level FAAC sliding gate product in the POWERgate Abu Dhabi range for Abu Dhabi villa and light commercial installations.

The FAAC 740’s optical encoder detects motor shaft rotation using a light beam interrupted by a slotted disc. Each slot-pass generates a pulse, counted by the 740D board to track exact gate position. An optical encoder provides high resolution position counts at a fixed rate per revolution. Virtual encoders (used by BENINCA and others) estimate position from motor current; Hall Effect sensors (CENTURION) use magnets. Optical encoders offer precise, noise-immune position counting but require clean conditions — contamination of the optical path by Abu Dhabi dust can affect signal quality, making a sealed, ventilated housing important.

FAAC explicitly states the 740 has no speed adjustment and no motor control function — the gate moves at a fixed 12 m/min throughout the cycle. Speed cannot be reduced or increased via the 740D board. This contrasts with motors like the Ditec NeoS (adjustable 0.1–0.4 m/s) or CENTURION D5 SMART (varies with load). For Abu Dhabi residential gates where 12 m/min is acceptable, this is not a limitation. However, installers cannot tune the speed to reduce vehicle waiting time or to slow movement near a pedestrian-sensitive entrance without upgrading to a different model.

The FAAC 740 kit includes an XT2 433 SLH LR 2-channel transmitter and RP 433 SLH 1-channel plug-in receiver. SLH (Selective Learning Hopping) is FAAC’s proprietary rolling code radio protocol operating at 433.92 MHz. The LR (Long Range) suffix on the XT2 confirms extended transmission distance. SLH remotes are paired only to SLH receivers; generic 433 MHz remotes are not compatible. The FAAC XP 20D photocells included in the kit are FAAC’s outdoor beam safety sensors aligned with FAAC’s wiring standard for the 740D control board.

The FAAC 740 carries a 24-month FAAC manufacturer warranty. Kit includes: 1 x 740 E Z16 gearmotor with 740D control unit and optical encoder, 4 x 1m nylon rack, 1 x RP 433 SLH 1-channel receiver, 1 x XLED flashing light, 1 x lock with key, 1 x FAAC XP 20D photocell pair, 1 x XT2 433 SLH LR 2-channel transmitter, and 1 x push button. Foundation base plate must be sourced separately. The 1:25 reduction ratio and 18 Nm torque are fixed with no installer adjustment. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
