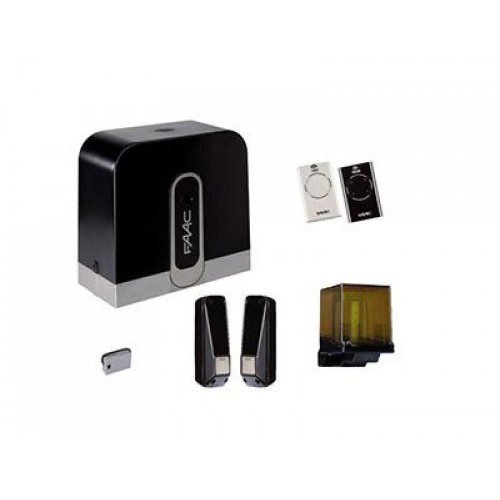

FAAC C720 sliding gate motor kit with remotes, photocells and flashing light
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

FAAC C720 400 Kg Sliding Gate Motor

24V sliding gate operator for gates up to 400 kg, with E720 board, anti-crushing system, virtual encoder obstacle reversal, magnetic limit switches, IP44 protection, and Z28 M4 pinion.



AED 1,755

Product price:AED 1,755
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

FAAC C720 Sliding Gate Motor is a 24V low-voltage gearmotor for residential sliding gates up to 400 kg. It is suitable for Abu Dhabi villas and private entrances where fast, safe, and efficient sliding gate automation is required. The C720 uses FAAC’s patented moving-axis reduction principle for high mechanical efficiency, with magnetic limit switches and an integrated electronic control unit for anti-crushing safety. Its compact design, adjustable speed, and obstacle detection function make it a reliable option for residential access automation where professional installation and correct safety setup are essential.

Key Features and Technical Specifications

  • Brand: FAAC
  • Model: C720
  • Product type: 24V low-voltage sliding gate gearmotor
  • Suitable use: Residential sliding gates
  • Maximum leaf weight: 400 kg
  • Power supply: 230V AC, 50 Hz
  • Motor supply: 24V DC
  • Power: 170 W
  • Current: 7 A
  • Electric motor speed: 3200 rpm
  • Maximum torque: 18 Nm
  • Thrust: 320 N
  • Pinion: Z28 module 4
  • Gate speed: Up to 18 m/min in FAAC sliding gate range catalogue
  • Limit switches: Magnetic
  • Protection class: IP44
  • Operating ambient temperature: -20°C to +55°C
  • Weight: 8 kg
  • Dimensions: 300 x 180 x 280 mm
  • Integrated electronic board: E720 electronic board
  • Safety function: Anti-crushing system with virtual encoder for obstacle reversal
  • Photocell compatibility: Traditional and BUS photocells can be connected to the board
  • Receiver options: XF433 MHz or XF868 MHz, compatible with FAAC transmitters
  • Packing details: Not specified by manufacturer

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Private parking entrances
  • Small gated access points
  • Home automation upgrades
  • Light residential access control systems

Compatibility and Installation Notes

FAAC C720 Sliding Gate Motor is compatible with residential sliding gates up to 400 kg when the gate is mechanically smooth, properly aligned, and fitted with a suitable rack, foundation base, electrical supply, limit switch setup, and safety accessories. Installation should be carried out by a qualified gate automation technician because the control board, photocells, obstacle detection, travel limits, and force settings must be configured correctly for safe operation. For more technical guidance, refer to the official FAAC support documentation before installation.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable gate automation products with local product guidance, installation support, and after-sales assistance for Abu Dhabi customers. We help buyers choose the right motor, accessories, and safety setup for smooth daily gate operation.

Buy FAAC C720 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “FAAC C720 400 Kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The FAAC C720 and the FAAC 740 are both FAAC residential sliding gate motors with IP44, magnetic limit switches, and anti-crushing safety. The C720 uses a 24V DC motor at 170W, patented moving-axis reduction, Z28 M4 pinion, E720 board, up to 18 m/min, 400 kg, and BUS photocell compatibility. The FAAC 740 uses a 230V asynchronous motor at 350W, standard reduction, Z16 pinion, 740D board, 12 m/min, and 500 kg. Choose the C720 for battery backup, higher speed, and FAAC BUS compatibility; the 740 for heavier 500 kg gates on standard 230V supply.

The FAAC C720 uses FAAC’s patented moving-axis reduction principle — a proprietary gearbox architecture where the axis of the output gear shifts position as the motor runs, producing high mechanical efficiency with fewer gear stages than a conventional fixed-axis gearbox. This geometry reduces internal friction losses, converting more of the 170W motor input into useful gate-moving force rather than heat. The result is the C720’s ability to drive a 400 kg gate at up to 18 m/min from only 170W and 24V — significantly more efficient than the 230V motors in the FAAC range at higher wattage.

The FAAC C720’s Z28 Module 4 pinion has 28 teeth, the highest tooth count of any FAAC sliding gate motor in the POWERgate Abu Dhabi range. The 740, 741, 746, and 844 all use Z16 pinions (16 teeth). More teeth on the pinion means a larger effective pitch circle diameter, producing a higher gate speed from the same motor RPM. At 3200 rpm motor speed, the Z28 pinion achieves up to 18 m/min gate movement — 50% faster than the Z16-based FAAC motors at 9.5–12 m/min — while remaining within the 400 kg gate weight rating.

The FAAC C720’s E720 board accepts both traditional photocells (standard NC-contact wiring) and FAAC BUS photocells (a digital bus protocol where multiple devices share a single cable with device addressing). BUS photocells communicate status, fault codes, and alignment data digitally to the E720, allowing the board to distinguish between a genuine beam interruption and a photocell alignment fault or cable issue. The board also supports XF433 MHz or XF868 MHz plug-in receiver modules, giving the installer frequency choice based on Abu Dhabi site radio conditions.

The FAAC C720 carries a 24-month FAAC manufacturer warranty. FAAC does not specify the standard kit packing for the C720 in the available product documentation — confirm exact kit contents with POWERgate Abu Dhabi before ordering. At 8 kg, it is the lightest FAAC motor in the range. Accessories typically required for a complete installation include photocells (traditional or BUS), an XF433 or XF868 receiver module, remote controls, flashing light, rack, foundation plate, and push button. Battery backup connects via the 24V board. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
