Product Overview
FAAC 844 ER Gate Motor is a heavy-duty sliding gate operator designed for commercial and industrial vehicle access in Abu Dhabi. The FAAC 844 ER Z16 model supports sliding gate leaves up to 1,800kg and is suitable for medium-transit entrances where strength, reliability, and anti-crushing safety are required. It uses a 230V electromechanical gearmotor with incorporated 780D control equipment, oil-bath twin-disk clutch, magnetic or inductive limit switch depending on model version, and a manual release system for power failure situations. This motor is a strong choice for large sliding gates requiring controlled, secure, and durable automation.
Key Features and Technical Specifications
- Brand: FAAC
- Product model: 844 ER Z16
- Application: Sliding gate automation
- Maximum gate leaf weight: 1,800kg
- Maximum gate leaf width: 40m
- Power supply: 220–240V AC, 50/60Hz
- Electric motor: Asynchronous single-phase
- Electronic equipment: 780D incorporated
- Maximum power: 650W / 660W depending on source specification
- Maximum torque: 35Nm / 37Nm depending on source specification
- Maximum thrust: 110 daN / 1,160N depending on source specification
- Reduction ratio: 1:30
- Gate speed: 9.5m/min for Z16 version
- Use frequency: 70%
- Pinion: Z16 module 4
- Limit switch: Magnetic or inductive, depending on model version
- Force adjustment: Twin-disk clutch in oil bath and electronic control
- Operating ambient temperature: -20°C to +55°C
- Thermal protection: 120°C
- Protection class: IP44
- Gearmotor weight: 14.5kg
- Oil type: FAAC XD 220 / FAAC HP oil, depending on document reference
- Gearmotor overall dimensions: 277 x 155 x 388mm
- Non-reversing gearmotor; no electric lock required for standard mechanical locking
- Manual release system for power failure or malfunction situations
- Designed for vehicle access control only
Use Cases
- Commercial sliding gates
- Industrial sliding gates
- Warehouse entrance gates
- Factory access gates
- Large parking entrances
- Heavy-duty villa or estate gates
- Vehicle access control points
- Medium-transit gate automation systems
Compatibility and Installation Notes
FAAC 844 ER Gate Motor is compatible with sliding gates up to 1,800kg when the gate structure, track, wheels, rack alignment, foundation, electrical supply, and safety accessories are suitable for automation. Installation requires correct gearmotor positioning, secure foundation mounting, rack or pinion alignment, limit switch adjustment, photocell positioning, earthing, and control-board programming. For more installation and technical knowledge, review the official 844 ER technical manual. Professional installation is recommended because FAAC requires proper safety-device checks, clutch adjustment, gate movement testing, and periodic inspection by qualified personnel.

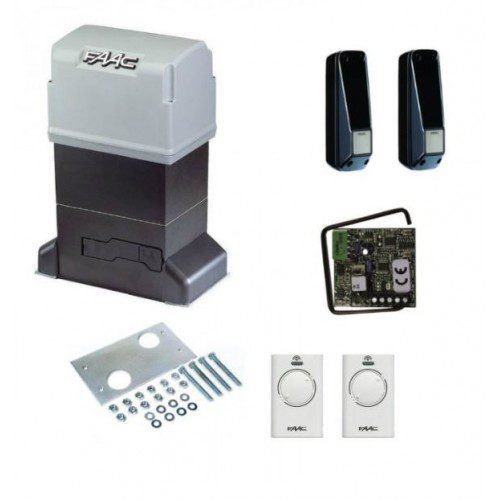

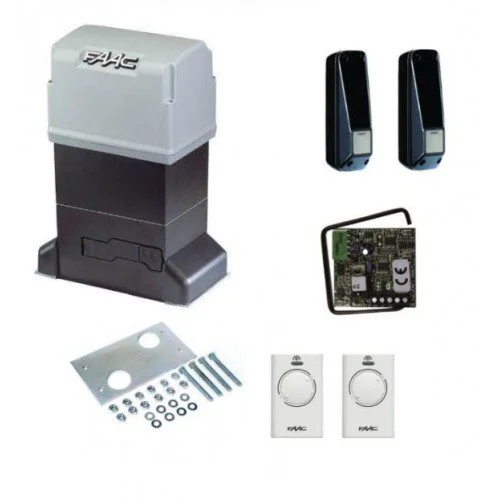

Packing Includes
- 1 x FAAC 844 E R Z16 gearmotor
- 2 x RP 433 SLH 1-channel plug-in receivers
- 1 x XLED flashing light
- 1 x push button
- 1 x lock with key
- 1 x foundation plate
- 1 x pair of FAAC XP 30 photocells
- 1 x FAAC XT2 433 SLH LR 2-channel transmitter
- 4 x nylon rack, 1m each
