Product Overview

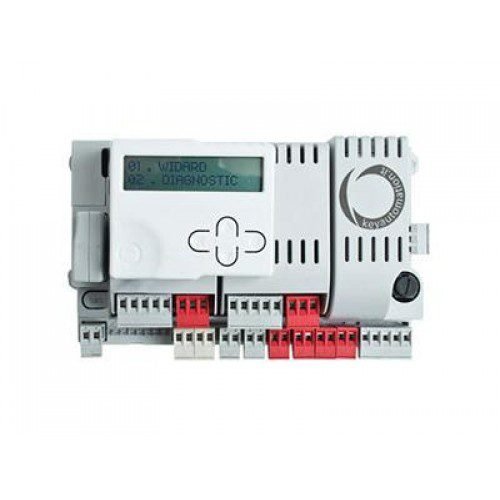

KEY 14A Control Board is a modular 24Vdc control unit designed for Key Automation motors used in swing gates, sliding gates, barriers, and garage doors. It supports one or two 24Vdc motors, depending on the selected power module and installation setup. For Abu Dhabi automation projects, this board is suitable for gate control board replacement, system upgrades, and professional maintenance where programmable safety, lighting, slowdown, and obstacle detection functions are required. It is a flexible “One For All” control platform, but it must be programmed with the required display or wireless programming module.
Key Features and Technical Specifications
- Brand: Key Automation
- Product model: 14A
- Product type: Modular control unit / gate control board
- Motor compatibility: One or two 24Vdc motors, depending on power module configuration
- Suitable systems: Swing gates, sliding gates, barriers, and garage doors with compatible Key Automation motors
- Programming requirement: DYL display module or KUBE PRO wireless module is mandatory for programming
- Power module compatibility: PO24 24Vdc 10A power module
- Logic mainboard reference: MA24
- Boxed control unit model: 14AB2 for two 24Vdc motors with 250VA transformer
- Input voltage for 14AB2 boxed version: 230Vac, 50/60Hz
- Peak power for 14AB2 boxed version: 300W
- Maximum flashing light power: 25W
- Maximum courtesy light power: 15W
- Protection rating for 14AB2 boxed version: IP54
- Operating temperature: -20°C to +55°C
- Product dimensions for 14AB2 boxed version: 222 x 110 x 275mm
- Night Light System support for LED light control during night hours
- Supports up to 20 additional Key Garden lighting points when used in compatible systems
- Compatible with main home automation systems
- Amperometric obstacle detection with movement inversion
- Standard or programmable slowdown during opening and closing
- Programmable automatic partial closing
- Separate OPEN, STOP, and CLOSE inputs
- PP and PARTIAL input
- Safety edge support: 8.2K ohm NC
- Photo 1 and Photo 2 safety inputs
- LED visualization for inputs and safety devices
- Optional safety edge test
- LED courtesy light output
- Open gate indicator output
- Plug-in programmable 4-channel radio receiver support
- Compatible with motors with or without encoder
- Flashing light output with user indicator
- Electrolock output
- Optional battery backup
Use Cases
- Automatic gate control board replacement
- Swing gate automation systems
- Sliding gate automation systems
- Barrier automation control
- Garage door automation systems
- Residential villa gate automation
- Commercial entrance gates
- Industrial access automation
- Parking entrance automation
- Abu Dhabi gate maintenance and upgrade projects
Compatibility and Installation Notes
The KEY 14A Control Board must be matched with compatible Key Automation 24Vdc motors and the correct power module before installation. It is not a universal PCB for every gate motor, so the installer must confirm the motor type, power module, encoder requirement, safety inputs, photocells, electrolock wiring, LED outputs, radio receiver, and backup battery setup. Programming cannot be completed properly without the DYL display module or KUBE PRO wireless module. Professional installation is strongly recommended because incorrect wiring, wrong motor pairing, or unsafe parameter settings can damage the system or create hazardous gate movement. For wiring, configuration, and safety details, review the official Key Automation 14A installation manual before installation.
Packing Includes
- 1 x KEY Automation 14A control board / control unit
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies gate control boards for local customers who need accurate product matching, reliable replacement support, and practical automation guidance. A modular board like the KEY 14A must be selected carefully, because the wrong module or missing programming accessory can delay installation and increase repair costs.
Buy KEY 14A Control Board today from POWERgate Abu Dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.
