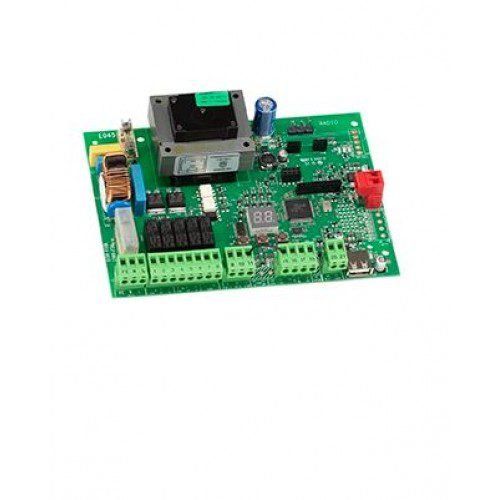

FAAC E045S Control Board for Swing Gate Motor

Product Overview

FAAC E045S control board is an electronic control unit for 230V swing-leaf gate automation systems in Abu Dhabi. It can manage one or two operators, making it suitable for single-leaf and double-leaf swing gate installations. The board supports FAAC 2easy and OMNIdec technologies, allowing compatibility with XF 433/XF 868 quick-insert radio modules, external receivers, and BUS-connected photocells. With adjustable thrust power, multiple operating logics, pause time control, encoder use, BUS device registration, and self-learning functions, it gives installers flexible control over gate movement and safety settings.

Key Features and Technical Specifications

• Brand: FAAC
• Model: E045S
• Product type: Electronic control board for swing gate automation
• Item code: 790077
• Application: 230V swing-leaf gate automations
• Number of operators: One or two operators
• Power supply voltage: 220–240V AC, 50/60Hz
• Compatible radio modules: XF 433 and XF 868 quick-insert modules
• Receiver compatibility: External receivers supported
• Photocell compatibility: XP 15B and XP 20B D photocells through BUS connection
• Traditional photocell support: BUS XIB interface provided
• Supported technologies: 2easy and OMNIdec
• Operating logic options: Semi-automatic, automatic, semi-automatic step-by-step, automatic step-by-step, auto security step-by-step, semi-automatic B, C, and dead-man
• Pause time: Programmable from 0 to 9 minutes 50 seconds
• Number of motors: Selectable
• Thrust power: Adjustable on 50 levels for each motor independently
• Encoder use: Selectable
• Leaf delay time in closing: Programmable from 0 to 1 minute 30 seconds
• BUS 2easy device registration: Selectable
• Motor power control: Motor 1 and Motor 2 independently
• Working time learning: Simple self-learning up to 4 minutes 10 seconds
• SAFEcoder support: Open, closed, and deceleration positions can be learned with SAFEcoder absolute encoder
• Advanced programming: Reversing stroke and ram stroke

Use Cases

• Swing gate control board replacement
• Residential swing gate automation
• Villa gate motor control systems
• Double-leaf gate automation
• Single-leaf gate automation
• Commercial entrance gates
• Access automation maintenance
• FAAC swing gate motor upgrades in Abu Dhabi

Compatibility and Installation Notes

The FAAC E045S control board is designed for 230V swing-leaf gate automation systems and can control one or two compatible operators. Before installation, the technician must check the motor wiring, power supply, photocell configuration, encoder setup, BUS 2easy devices, radio receiver module, thrust force, operating logic, and leaf delay settings. Professional installation is strongly recommended because incorrect programming or unsafe wiring can damage the control board or create dangerous gate movement. For full wiring and setup instructions, installers should review the official FAAC E045S installation manual.

Packing Includes

• 1 x FAAC E045S electronic control board
