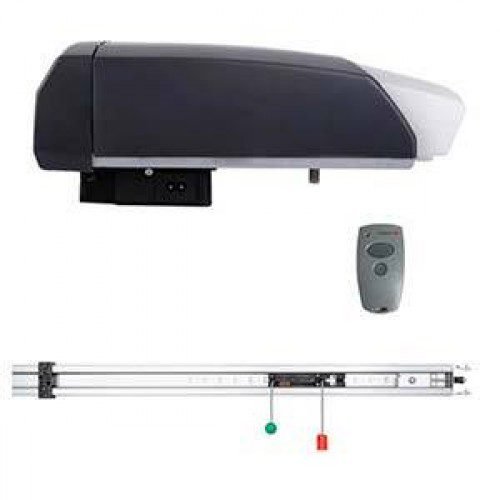

Marantec Comfort 270 | Garage Door Opener

Marantec Comfort 270 Garage Door Opener is a 24V DC garage door operator designed for Abu Dhabi homes, villas, private garages, and light commercial entrances. The correct Comfort 270 bi.linked item number is 183502, not 183501; 183501 belongs to Comfort 260. The Comfort 270 delivers 750N push and pull force, supports garage doors up to 165 kg, and offers smooth soft-start and soft-stop operation. It includes LED lighting, LC display programming, obstacle-sensitive operation, and expandable control connections for accessories such as light barriers, wicket door contact, battery backup, and expansion modules.

Key Features and Technical Specifications

• Product name: Marantec Comfort 270 Garage Door Opener 868 MHz bi.linked
• Verified item number: 183502
• Current successor item number: 196002
• Motor type: 24 V DC motor
• Push and pull force: 750 N
• Maximum running speed: 16 cm/s
• Maximum gate/door weight: 165 kg
• Maximum double-walled sectional door width: 5.5 m
• Maximum single-wall sectional door width: 5.5 m
• Maximum overhead door width: 5 m
• Maximum tipping and canopy gate width: 5 m
• Maximum tilt and canopy gate height: 2.25 m
• Maximum cycles per hour: 4
• Maximum cycles per day: 28
• Operating voltage: 230 V / 1~
• Nominal frequency: 50/60 Hz
• Rated current: 1.1 A
• Power consumption: 0.25 kW
• Standby power consumption: 4 W
• Control voltage: 24 V DC
• Illuminant: 8 LED module
• Protection class: IP20 motor unit
• Protection class: II
• Continuous sound pressure level: 70 dB(A) max
• Dimensions: 190 × 125 × 360 mm
• Weight: 3.5 kg
• Operating temperature: -20°C to +60°C
• Control features: soft start, soft stop, soft run, blocking protection, runtime limit, electronic limit stop, cycle counter, maintenance interval, and error memory
• Connectivity: push button, light barrier, holding circuit, pluggable radio receiver, MS-Bus expansion boards, handheld programmer, expansion modules, and battery backup connection

Use Cases

• Residential garage doors in Abu Dhabi villas
• Sectional garage doors up to 5.5 m wide
• Up-and-over garage doors up to 5 m wide
• Canopy and tipping garage doors up to 5 m wide
• Private parking entrances
• Light commercial garage access points
• Warehouse-style garage doors within the verified 165 kg door weight limit
• Automation upgrades where soft operation, LED lighting, and radio control are required

Compatibility and Installation Notes

The Comfort 270 is suitable for up-and-over, sectional, tipping, canopy, and overhead garage doors within the verified size and weight limits. Professional installation is strongly recommended because the opener must be matched with the correct Marantec opener rail, balanced door movement, safety accessories, 230V power supply, travel limits, force settings, and photocell/light barrier wiring where required. For technical installation guidance, check the official Marantec Comfort 270 product information. (Marantec Shop)

Packing Includes

• 1 × Motor unit with integrated control
• 1 × Digital 921 module receiver, 868 MHz bi.linked
• 1 × Digital 572 micro hand transmitter, 2-channel, 868 MHz bi.linked
• 1 × Universal installation set for up-and-over and sectional doors
• 1 × Mains cable with Euro plug type C, 1,500 mm

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products with local support for buyers who need reliable product selection, technical guidance, and after-sales assistance. The Marantec Comfort 270 is a serious garage door opener, but choosing the wrong SKU, rail, receiver, or accessory set can waste money. PowerGate Abu Dhabi helps customers match the correct operator to the door size, weight, and site requirement.

Buy Marantec Comfort 270 today from POWERgate Abu Dhabi. Call/WhatsApp: +971544825472 or email us: sales@powergatead.com.
