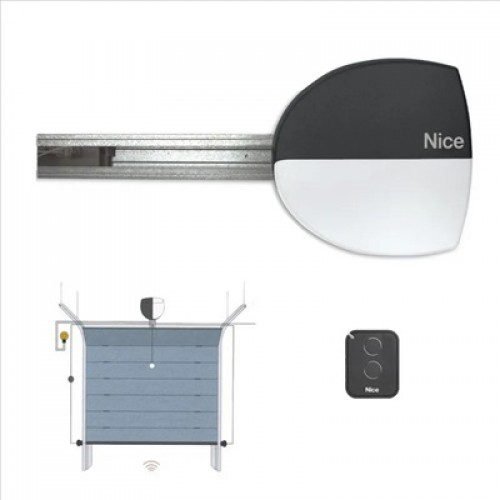

Nice Spinbuskit garage door motor with guide rail, remote control, and door diagram
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Nice Spinbuskit 20/22/23 BD Garage Door Motor

24Vdc garage door automation kit with SN6021 gear motor, 650N force, 0.20 m/s speed, BlueBUS wiring, OXIBD receiver, ON2E transmitter, LED courtesy light and IP40-rated protection.



AED 1,600

Product price:AED 1,600
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Nice Spinbuskit garage door motor is a 24Vdc automation kit for sectional and up-and-over garage doors in Abu Dhabi. The Spinbuskit 20/22/23 BD range is designed for sectional doors up to 10.5 m² and up-and-over garage doors up to 11.8 m². It uses the SN6021 gear motor with built-in control, BlueBUS technology, adjustable installation options, obstacle detection, LED courtesy lighting, and optional battery backup support. The kit is suitable for customers who need reliable garage door automation with clean operation, low standby consumption, and flexible rail options for different garage layouts.

Key Features and Technical Specifications

  • Product type: Garage door automation kit.
  • Brand: Nice.
  • Range: Spinbuskit 20/22/23 BD.
  • Gear motor code: SN6021.
  • Motor type: 24Vdc electromechanical gear motor.
  • Door compatibility: Sectional and up-and-over garage doors.
  • Maximum sectional door area: 10.5 m².
  • Maximum up-and-over door area: 11.8 m².
  • Power supply: 230Vac, 50/60Hz.
  • Absorption: 0.8A.
  • Power: 270W.
  • Maximum force: 650N.
  • Speed: 0.20 m/s.
  • Working cycle: 50 cycles/day.
  • Protection level: IP40.
  • Working temperature: -20°C to +55°C.
  • Dimensions: 311 × 327 × 105 mm.
  • Weight: 3.6 kg.
  • BlueBUS system: Supported for two-wire photocell connection.
  • Standby consumption with radio connected: 5.2W.
  • Standby consumption with battery or Solemyo kit: 0.036W.
  • Optional battery backup: PS124 battery support.
  • Courtesy light: Built-in LED light.
  • Safety functions: Obstacle detection and automatic working time programming.
  • Rail versions: SPIN20KCE, SPIN22KCE, and SPIN23KCE depending on kit configuration.

Use Cases

Compatibility and Installation Notes

Nice Spinbuskit garage door motor is compatible with sectional doors up to 10.5 m² and up-and-over garage doors up to 11.8 m², provided the door is correctly balanced, mechanically smooth, and suitable for the selected rail version. Professional installation is strongly recommended because rail alignment, release positioning, BlueBUS wiring, force learning, safety photocell setup, and limit programming must be completed correctly for safe operation. For installation and technical setup guidance, refer to the Nice technical manual.

Packing Includes

  • 1 × Nice SN6021 garage door gear motor with built-in control unit.
  • 1 × OXIBD plug-in bidirectional radio receiver.
  • 1 × ON2E transmitter, 433.92 MHz, 2-channel.
  • 1 × Rail according to selected kit version:
    • SPIN20BDKCE: Guide in 3 pieces of 1 m.
    • SPIN22BDKCE: Guide in 1 piece of 3 m + 1 piece of 1 m.
    • SPIN23BDKCE: Guide of 3 m.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies Nice garage door automation products with local support, product selection guidance, and installation-focused assistance. Buyers get help choosing the correct Spinbuskit version, compatible rail configuration, and safety accessories for dependable garage door operation.

Buy Spinbuskit today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “Nice Spinbuskit 20/22/23 BD Garage Door Motor”

Your email address will not be published. Required fields are marked *

The three Nice Spinbuskit versions use the same SN6021 motor and differ only in rail configuration. SPIN20BDKCE includes a guide in three equal 1m sections. SPIN22BDKCE includes a guide in one 3m section plus one 1m section. SPIN23BDKCE includes a single 3m guide only. The three-piece 1m version is easiest to transport and manoeuvre in tight Abu Dhabi garage ceilings; the single 3m section is most rigid but requires more space during fitting. All deliver identical motor performance.

Most garage operators rate sectional doors higher than up-and-over because sectional panels distribute weight across hinges and rollers. The Nice Spinbuskit reverses this with 10.5 m² sectional but 11.8 m² up-and-over. NICE’s limit reflects that the specific sectional door panel arrangement, folding mechanism, and spring configuration create varying friction and resistance profiles. For this SN6021 motor and rail geometry, correctly balanced up-and-over doors present a lower effective load profile than the range of sectional door configurations within the same area.

The Nice SpinBus has 0.8W mains standby; the Nice Spinbuskit draws 5.2W with its OXIBD radio receiver connected. The OXIBD is a bidirectional receiver that continuously monitors for incoming transmitter commands and sends status confirmations — its bidirectional processing circuit draws more power than a standard one-way receiver at idle. Both drop to 0.036W on battery/Solemyo, where the electronics operate in a minimal power state. For Abu Dhabi installations on a tight electricity budget, the 5.2W standby is worth factoring into the running cost calculation.

The Nice garage opener range includes three different transmitter models across its kits. The ON2E (in the Spinbuskit) is a standard 2-channel 433.92 MHz rolling-code remote — compact and straightforward. The MYGO4 (in the SpinBus) is a 4-channel version of the same family for multi-access-point control. The FLO2RE (in the SPIN40 and SN6041) is NICE’s legacy 2-channel rolling-code format with a different casing profile. All work with 433.92 MHz NICE receivers but use different encoding families that are not cross-compatible.

The Nice Spinbuskit includes: 1× SN6021 gearmotor with built-in control unit, 1× OXIBD bidirectional plug-in receiver, 1× ON2E 2-channel 433.92 MHz transmitter, and 1× rail in the selected version (3×1m, 3m+1m, or 3m). No photocells are included — these must be sourced separately, along with a push button, safety edges, and any BlueBUS accessories. Compatible with PS124 backup battery and Solemyo solar. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
