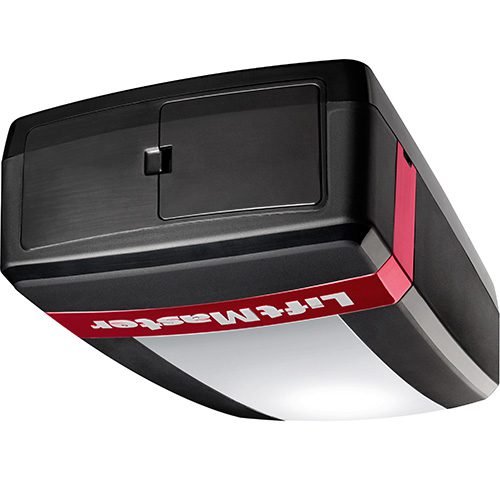

LiftMaster LM80EV DC Sectional Garage Door Opener

LiftMaster LM80EV DC sectional garage door opener with 800 N pulling force, belt drive, LED courtesy light, Security+2.0 radio, and 130 kg door capacity.



AED 1,260

Product price:AED 1,260
Total options:
Order total:
- +
Category: Tags: , , , Brand:

LM80EV garage opener is a DC sectional garage door operator designed for steel spring-balanced garage doors in Abu Dhabi homes, villas, private garages, and light commercial entrances. The LiftMaster LM80EV DC combines an 800 N pulling force, belt-drive operation, LED courtesy lighting, and Security+2.0 encrypted rolling code technology for reliable daily access control. It supports doors up to 130 kg and offers fast opening performance up to 200 mm per second. The opener is also myQ-capable when used with the required optional gateway and safety accessories, making it suitable for customers who want smarter garage door monitoring and control.

Key Features and Technical Specifications

  • Brand: LiftMaster
  • Product model: LM80EV DC
  • Product type: Sectional garage door opener
  • Motor type: 24V DC motor with permanent lubrication
  • Drive system: Belt drive with one-piece rail
  • Input voltage: 220–240V AC, 50–60Hz
  • Maximum peak pulling force: 800 N
  • Maximum opening speed: 200 mm/s
  • Maximum lifting capacity: 130 kg
  • Maximum lifting under spring tension: 12 kg
  • Door suitability: Steel spring-balanced doors
  • Radio frequency: 433.92 MHz and 868 MHz AM
  • Security technology: Security+2.0 encrypted rolling code
  • Memory capacity: Up to 180 memory registers
  • Courtesy light: LED
  • Operating function: Soft start/stop
  • Safety function: Automatic stop and obstacle detection
  • Smart control: myQ capable with optional myQ Gateway 828EV and Safety IR Beams 771ESA
  • Warranty: 2 years

Use Cases

  • Residential sectional garage doors
  • Villa garage doors
  • Private parking entrances
  • Light commercial garage access
  • Steel spring-balanced garage doors
  • Smart garage door automation with optional myQ accessories
  • Properties requiring encrypted remote access control

Compatibility and Installation Notes

The LiftMaster LM80EV DC is suitable for steel spring-balanced sectional garage doors within the verified 130 kg lifting capacity. For myQ smartphone control, the opener requires additional compatible accessories, including the myQ Gateway 828EV and Safety IR Beams 771ESA. Installation should be handled by a trained technician because garage door balance, spring tension, force limits, safety reverse response, rail alignment, and electrical input must be correctly checked before operation. For more technical product and accessory details, review the official LiftMaster Middle East product information.

Packing Includes

  • 1 x LiftMaster LM80EV DC garage door opener
  • 2 x ME960-LM transmitter accessories
  • 1 x 128EV wireless wall control

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products with local support for buyers who need correct product selection, technical guidance, and reliable after-sales assistance. This LM80EV opener is a strong choice for Abu Dhabi customers who want a trusted LiftMaster sectional garage door solution with encrypted remote access and smart upgrade capability.

Buy LM80EV opener today from PowerGate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “LiftMaster LM80EV DC Sectional Garage Door Opener”

Your email address will not be published. Required fields are marked *

The LiftMaster LM80EV’s one-piece rail arrives as a single assembled section, requiring the installer to align and mount it in one piece during ceiling installation. The LiftMaster LM100EV’s two-piece trolley on steel rail allows separate sections to be mounted independently, which can be easier in confined Abu Dhabi garage spaces where manoeuvring a full-length single rail is difficult. For standard villa garages, the one-piece rail provides a simpler component count; for tighter spaces, two-piece offers more flexibility during fitting.

The LiftMaster LM80EV’s 800N at 130 kg is the entry-level force specification in the LiftMaster ceiling-mounted sectional range. The LM100EV steps up to 1000N at 150 kg; the LM130EV reaches 1300N at 200 kg. For standard Abu Dhabi villa single-car garage doors — typically 2.4–3m wide, 2.1m high, and well under 130 kg when correctly spring-balanced — 800N provides a sufficient force margin for reliable daily operation without the additional cost of higher-rated models.

Despite having a lower force rating, the LiftMaster LM80EV carries the same dual 433+868 MHz receiver, 180-register memory, Security+2.0 encryption, LED courtesy light, myQ capability, and soft start/stop as the LM100EV. This means buyers do not sacrifice smart features or radio security by choosing the lower-force model. For standard Abu Dhabi villa garage doors under 130 kg where 800N is sufficient, the LM80EV delivers the full LiftMaster feature set at the range’s most accessible price.

The LiftMaster LM80EV’s permanent lubrication DC motor is sealed at the factory with lubricant that lasts the motor’s operational lifetime — no periodic oil or grease maintenance is required. The 12 kg maximum lifting under spring tension confirms the motor only overcomes the small residual load after the springs counterbalance the door’s weight. A 130 kg door properly spring-balanced places just 12 kg on the LM80EV during operation, well within its 800N capacity and explaining why the low-force model suits most standard Abu Dhabi villa doors.

At AED 1,260, the LiftMaster LM80EV is the most affordable ceiling-mounted opener in the LiftMaster range at POWERgate Abu Dhabi, below the LM100EV (AED 1,450), LM130EV (AED 1,575), and LM3800TXSA wall-mount (AED 1,750). Standard kit includes: 1× LM80EV DC opener, 2× ME960-LM Security+2.0 transmitters, and 1× 128EV Wireless Wall Control. myQ gateway, safety IR beams, rail, and photocells must be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
