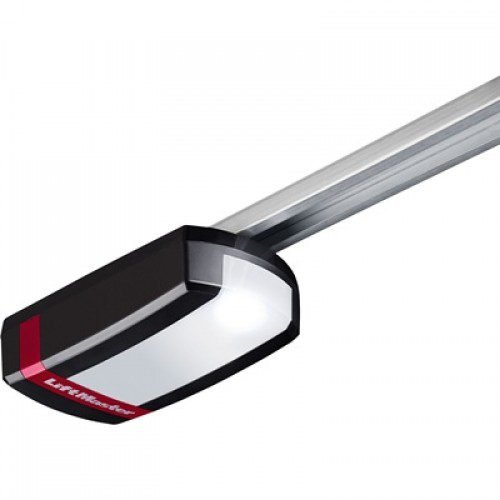

LiftMaster LM100EV garage door opener with rail and illuminated motor housing
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

LiftMaster LM100EV Sectional | Garage Door Opener

1000N 24V DC sectional garage door opener with belt drive, steel rail, LED courtesy light, Security+2.0 rolling code, 180 memory registers, soft start/stop and myQ-ready smart control.



AED 1,450

Product price:AED 1,450
Total options:
Order total:
- +
Category: Tags: , , , Brand:

LiftMaster LM100EV Garage Door Opener is a 24V DC sectional garage door motor designed for steel spring-balanced doors in Abu Dhabi homes, villas, garages, and light commercial entrances. It delivers a 1000N peak pulling force, supports doors up to 150kg, and opens at up to 200mm per second. The belt drive with steel rail helps provide smoother operation, while LED courtesy lighting improves garage visibility. Security+2.0 encrypted rolling code technology adds safer remote access, and myQ functionality can be enabled with additional compatible accessories.

Key Features and Technical Specifications

  • Product model: LiftMaster LM100EV
  • Product type: DC sectional garage door opener
  • Motor: 24V DC motor with permanent lubrication
  • Drive system: Belt drive with two-piece trolley on steel rail
  • Input voltage: 220–240V AC, 50–60Hz
  • Maximum peak pulling force: 1000N
  • Maximum lifting capacity: 150kg
  • Maximum lifting under spring tension: 12kg
  • Opening speed: Up to 200mm/sec
  • Radio frequency: 433.92 MHz and 868 MHz AM
  • Security technology: Security+2.0 encrypted rolling code
  • Memory capacity: Up to 180 memory registers
  • Courtesy light: LED
  • Function: Soft start/stop
  • Safety function: Automatic stop and obstacle detection
  • Smart control: myQ capable with additional 828EV Gateway and 771ESA Safety IR Beams
  • Warranty: 2 years, according to LiftMaster Middle East product listing
  • Suitable door type: Steel spring-balanced sectional doors

Use Cases

  • Residential sectional garage doors
  • Villa garage entrances
  • Private parking garage doors
  • Light commercial garage doors
  • Steel spring-balanced sectional doors
  • Controlled access garage automation
  • Properties requiring encrypted remote operation
  • Garage doors needing LED courtesy lighting and soft operation

Compatibility and Installation Notes

The LiftMaster LM100EV is suitable for steel spring-balanced sectional garage doors with a maximum door weight of 150kg and correct spring tension. Professional installation is strongly recommended because the door must be balanced, the rail and belt drive must be aligned, travel limits must be programmed, and obstacle detection must be tested before use. myQ smartphone control requires separate compatible accessories, including the 828EV Gateway and 771ESA Safety IR Beams. For technical setup and safety guidance, check the official LiftMaster Middle East product information before installation. (LiftMaster Middle East)

Packing Includes

  • 1 x LiftMaster LM100EV sectional garage door opener motor
  • 2 x ME960-LM transmitter accessories
  • 1 x 128EV Wireless Wall Control

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products for local Abu Dhabi customers who need reliable product guidance, correct model selection, and after-sales support. Buyers get practical help choosing the right garage door opener for sectional doors, along with support for compatible accessories and installation requirements.

Buy LiftMaster LM100EV today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “LiftMaster LM100EV Sectional | Garage Door Opener”

Your email address will not be published. Required fields are marked *

Standard rolling code changes the transmitted code on each button press to prevent replay attacks. LiftMaster’s Security+2.0 adds a second layer: an encrypted dialogue between the transmitter and receiver before the door responds, confirming the command source is genuine. This means even capturing the changing rolling code sequence cannot trigger the door — the receiver also validates the transmitter’s identity in real time. For Abu Dhabi villas in densely housed compounds where signal interception is a realistic concern, Security+2.0 provides a higher cryptographic assurance than rolling code alone.

Yes — the LiftMaster LM100EV’s support for both 433.92 MHz and 868 MHz AM frequencies makes it the only dual-frequency garage door motor in the POWERgate Abu Dhabi range. 868 MHz is less congested in the UAE than 433 MHz, which is used by many home devices, intercoms, and gate motors. Operating on 868 MHz reduces the chance of interference in Abu Dhabi properties with multiple 433 MHz automation devices already installed on the same compound.

The LiftMaster LM100EV’s myQ capability requires two additional accessories not included in standard packing: the 828EV myQ Gateway (connects the opener to Wi-Fi for cloud control) and the 771ESA Safety IR Beams (required safety device for myQ-enabled operation). Once installed, myQ allows smartphone open, close, and status monitoring from anywhere, real-time alerts when the garage door is left open, and integration with Amazon Key and compatible smart home systems — relevant for Abu Dhabi homeowners managing garage access remotely.

The 150 kg maximum door weight is the total weight of the door panels before spring balancing. The 12 kg maximum lifting under spring tension is the residual load the motor must overcome after the springs counterbalance the door — meaning a properly spring-balanced 150 kg door places only approximately 12 kg of actual lifting force on the LM100EV motor during operation. This figure confirms the door must be correctly spring-balanced before installation; an unbalanced door places the full 150 kg load on the motor and will exceed its 1000N force capacity.

The 128EV Wireless Wall Control is LiftMaster’s battery-powered wireless wall button — no wiring between the wall control and the motor unit is required, simplifying installation in Abu Dhabi garages where running a control wire along walls or ceiling is impractical. The permanent lubrication motor requires no oil or grease maintenance. Standard kit: LM100EV opener, 2× ME960-LM transmitters, and 1× 128EV Wireless Wall Control. myQ accessories, rail, and photocells must be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
