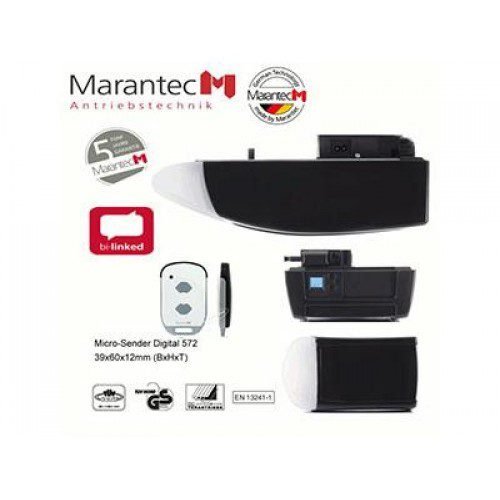

Marantec Comfort 280 | Garage Door Motor

Marantec Comfort 280 garage door motor is a powerful 24V DC operator for heavy residential garage doors in Abu Dhabi. It is designed for garage doors up to 200 kg, with a maximum door width of 6.0 m and a travel speed of 16 cm/s. The Comfort 280 belongs to Marantec’s Comfort 200 series and includes LED lighting, sensitive obstacle detection, soft-start and soft-stop operation, and simple programming through an integrated control system. The official article number for this set is 183503. The rough packing data includes extra accessories, but the standard official scope should be followed unless your supplier confirms otherwise.

Key Features and Technical Specifications

• Product type: Garage door operator for sectional, up-and-over, retractable, tipping, and canopy doors.
• Model: Marantec Comfort 280.
• Article number: 183503.
• Motor type: 24V DC motor.
• Maximum push and pull force: 1000N.
• Maximum door weight: 200 kg.
• Maximum door width: 6.0 m.
• Maximum travel speed: 16 cm/s.
• Operating voltage: 230V / 1~ / 50Hz.
• LED lighting: 8 LED module.
• Standby power input: 4W.
• Soft-start and soft-stop function: Available.
• Separate opening and closing speed adjustment: Available.
• Integrated control: Included with illuminated LC display.
• Obstacle detection: Supported.
• Battery backup connection: Supported as an optional expansion.
• Photocell connection: Supported.
• Wicket door contact connection: Supported.
• Expansion board connection: Supported.
• Automatic closing function: Available only when used with a photocell.
• Door compatibility: Up-and-over doors, single-walled sectional doors, double-walled sectional doors, retractable up-and-over doors, and canopy doors within official limits.

Use Cases

• Residential garage doors.
• Villa sectional garage doors.
• Heavy overhead garage doors.
• Private parking entrances.
• Double-walled sectional garage doors.
• Up-and-over and canopy garage doors.
• Small commercial garage doors where door weight and dimensions match the official limits.

Compatibility and Installation Notes

Marantec Comfort 280 garage door motor is suitable for doors up to 200 kg and up to 6.0 m wide, provided the door is correctly balanced, mechanically smooth, and compatible with Marantec opener rails. Professional installation is recommended because correct rail selection, spring balance, travel limit programming, force adjustment, safety input wiring, and photocell configuration directly affect safe operation. For setup and safety guidance, refer to the official Marantec installation manual search.

Packing Includes

• 1 × Motor unit with integrated control.
• 1 × Digital 921 module receiver, 868 MHz bi.linked.
• 1 × Digital 572 Micro handheld transmitter, 2-channel, 868 MHz bi.linked.
• 1 × Universal installation set for up-and-over and sectional doors.
• 1 × Mains cable with Euro plug type C, 1,500 mm.
