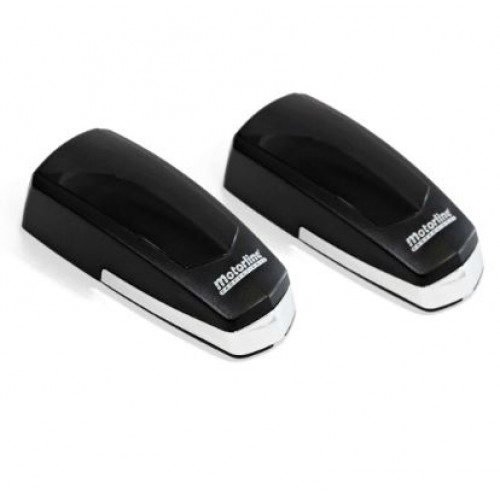

MOTORLINE MF30 Photocell Sensors

Product Overview

MOTORLINE MF30 Photocell Sensors are modulated infrared safety photocells for automatic gate and door automation systems in Abu Dhabi. The official MOTORLINE MF30 kit has a nominal detection range of 25 meters and works as a transmitter and receiver photocell pair for obstacle detection. It is designed to improve automation safety by sending a signal to the control board when the infrared beam is interrupted. These photocells are suitable for professional gate, barrier, and garage door automation installations where reliable wired safety detection is required. (motorline.pt)

Key Features and Technical Specifications

• Brand: MOTORLINE
• Product model: MF30
• Product type: Modulated infrared photocell kit
• Installation type: Wired photocells
• Maximum distance / nominal range: 25 m
• Input voltage: 12Vac–24Vac / 12Vdc–24Vdc–36Vdc
• Standby current: RX 30mA / TX 30mA
• Rated current: RX/TX 60mA
• Frequency: 50–60Hz
• Working temperature: -25°C to +70°C
• Infrared wavelength: 940nm
• Isolation class: Class 3
• Relay output switching capacity: 30Vdc, 1A
• Recommended installation height: 500 mm
• Dimensions shown in manual: 41 mm × 100 mm
• Contact selection: NC/NO jumper selection
• IP rating: Not specified by manufacturer

Use Cases

• Residential automatic gates
• Villa sliding gate automation
• Swing gate safety systems
• Garage door automation
• Parking barrier safety detection
• Commercial gate entrances
• Warehouse access automation
• Automatic door and gate motor safety circuits where compatible

Compatibility and Installation Notes

The MOTORLINE MF30 Photocell Sensors should be used with compatible automation control boards that support photocell safety inputs and the required low-voltage power supply. The transmitter and receiver must be mounted facing each other, aligned correctly, and installed at the recommended height for reliable obstacle detection. For more setup guidance, review the official MF30 user and installer manual. Professional installation is recommended to ensure correct wiring, NC/NO contact selection, alignment, and safe gate operation in Abu Dhabi automation systems.

Packing Includes

• 1 × MOTORLINE MF30 transmitter photocell
• 1 × MOTORLINE MF30 receiver photocell

Why Buy from PowerGate Abu Dhabi

PowerGate Abu Dhabi supplies reliable gate automation accessories with local support, product guidance, and after-sales assistance for customers in Abu Dhabi. We help buyers select the correct photocell sensors for their automation system and support proper compatibility before installation.

Buy MOTORLINE MF30 today from PowerGate Abu Dhabi. Call/WhatsApp: +971544825472 or email us: sales@powergatead.com.
