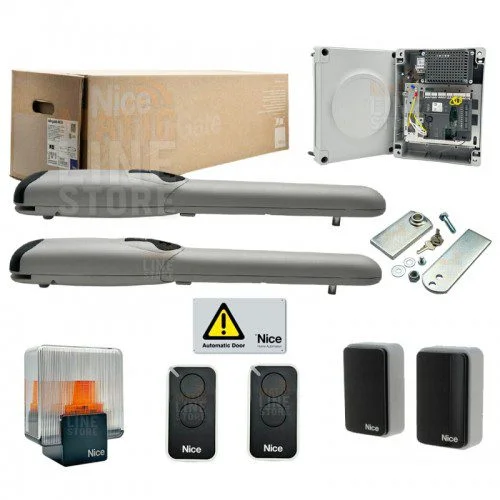

Nice WINGOKIT 4024 BD swing gate opener kit with motors, controls and sensors
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

NICE WINGOKIT 4024 BD Swing Gate Opener

24V electromechanical linear swing gate kit for leaves up to 2 m, with WG4024 motors, MC424L control unit, OXIBD receiver, ON2E transmitters, EPM photocells and ELDC flashing light.



AED 2,450

Product price:AED 2,450
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

NICE WINGOKIT 4024 BD is a 24V electromechanical swing gate opener kit for residential gate automation in Abu Dhabi. It is designed for swing gate leaves up to 2 m and uses external surface-mounted Wingo gear motors with bidirectional radio technology. This kit is suitable for villa gates, gated homes, and residential entrances where smooth movement, quiet operation, and reliable safety accessories are required. The official Nice technical documentation lists WINGO4024BDKCE as a 24Vdc external mounting kit for leaves up to 2 m.

Key Features and Technical Specifications

  • Brand: Nice
  • Product name: WingoKit 4024 BD
  • Official code: WINGO4024BDKCE
  • Product type: Swing gate automation kit
  • Motor model: WG4024
  • Motor type: Electromechanical gear motor for swing gates or doors with leaf opening
  • Installation type: External surface mounted
  • Motor power input: 24V
  • Maximum leaf length: Up to 2 m
  • Maximum leaf weight: Follow official Nice usage-limit chart; maximum chart value shown up to 400 kg depending on leaf length and installation conditions
  • Maximum absorption: 3.5 A
  • Nominal absorption: 2 A
  • Maximum absorbed power: 85 W
  • Nominal absorbed power: 50 W
  • Protection grade: IP44
  • Travel: 320 mm
  • Loadless speed: 0.018 m/s
  • Maximum thrust: 1500 N
  • Nominal thrust: 500 N
  • Operating temperature: -20°C to +50°C
  • Cycles per hour at nominal torque: 40 cycles/hour
  • Estimated durability: 80,000 to 250,000 manoeuvre cycles, depending on installation conditions
  • Insulation class: A
  • Dimensions: 770 x 98 x 95 mm
  • Weight: 6 kg per gear motor
  • Control unit: MC424L 24Vdc control unit
  • Receiver: OXIBD bidirectional plug-in receiver, 433.92 MHz
  • Remote controls: ON2E 433.92 MHz, 2-channel transmitters
  • Photocells: EPM external relay photocells, medium size
  • Flashing light: ELDC LED flashing light, 12–36 Vdc
  • Optional battery backup: PS124, not included unless supplied separately
  • Smart configuration support: Compatible with Nice BiDi WiFi, Pro-View, O-View, Core gateway, or IT4WIFI where supported and supplied separately
  • Obstacle detection: Supported through the MC424L control unit’s amperometric motor-force system
  • Automatic limit switch detection and work-time memorisation: Supported by MC424L
  • Official technical data confirmed from Nice Wingo and MC424L documentation. (Nice)

Use Cases

  • Abu Dhabi villa swing gates
  • Residential entrance gates
  • Gated home automation
  • Private property access gates
  • Residential compound entrances
  • Light commercial gates where size and duty cycle are suitable
  • Two-leaf swing gate automation systems
  • Parking entrance swing gates with compatible gate structure

Compatibility and Installation Notes

The NICE WINGOKIT 4024 BD should be selected after checking gate leaf length, gate leaf weight, hinge geometry, rear and front bracket position, opening angle, mechanical stops, cable routing, photocell position, and control unit location. The gate structure must be mechanically safe, balanced, and suitable for automation before installation. Professional installation is recommended because 24V motor wiring, MC424L setup, photocell alignment, receiver programming, force adjustment, obstacle detection settings, and final safety testing must be completed correctly. For official installation guidance, refer to the Nice Wingo installation manual, which includes product limits, technical specifications, wiring notes, and safety checks.

Packing Includes

  • 2 x WG4024 electromechanical swing gate motors
  • 1 x MC424L 24Vdc control unit
  • 1 x OXIBD bidirectional plug-in receiver, 433.92 MHz
  • 2 x ON2E 433.92 MHz 2-channel transmitters
  • 1 x EPM pair of external relay photocells
  • 1 x ELDC LED flashing light, 12–36 Vdc
  • 1 x TS warning sign plate

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable swing gate automation products locally for Abu Dhabi customers, with support for selecting the correct motor kit, accessories, and installation setup. We help buyers choose suitable Nice gate automation solutions for safe, smooth, and long-lasting residential gate performance.

Buy NICE WINGOKIT 4024 BD today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “NICE WINGOKIT 4024 BD Swing Gate Opener”

Your email address will not be published. Required fields are marked *

The NICE WINGOKIT 4024 BD and the NICE WINGO4KIT BD both handle 2m gates with 320mm stroke, 1500N max / 500N nominal, 770 × 98 × 95mm. The 4024 BD uses 24V DC at 50W nominal / 85W max, 2A/3.5A absorption, 40 cycles/hour, MC424L control unit, and ELDC 12-36V DC flashing light. The 230V WINGO4KIT uses 130W/200W, 0.5A/1.5A, 30 cycles/hour, and MC800. Choose the 4024 BD for 24V battery-backup capability and higher cycle rate; the 230V WINGO4KIT for mains-only simplicity.

The NICE WG4024 motor is rated insulation class A, meaning its winding insulation withstands a maximum continuous temperature of 105°C. This is the lowest insulation class in the POWERgate Abu Dhabi range — other motors use class F (155°C) or class B (130°C). For Abu Dhabi outdoor gate pillars in direct summer sun, ambient temperatures of 45°C combined with motor self-heating under frequent cycles can push winding temperatures toward the 105°C ceiling. Sheltered mounting away from direct prolonged sun exposure is strongly recommended for the WG4024 in Abu Dhabi.

The MC424L is NICE’s dedicated 24V control unit for the WG4024 and compatible Wingo 24V motors. It provides automatic limit switch detection and work-time memorisation — the panel learns the gate’s open and close travel times automatically during commissioning, rather than requiring the installer to manually set mechanical stops or run-time values. The MC424L also manages the 40 cycles/hour cycling, integrates the OXIBD bidirectional receiver, connects the EPM photocells, and provides fault detection for the gate system.

The NICE WINGOKIT 4024 BD’s MC424L uses amperometric obstacle detection — monitoring the WG4024 motor’s current draw in real time. When an obstacle blocks the gate, the motor’s current increases as it works harder against the resistance. The MC424L detects this current spike and stops or reverses the gate to comply with safety requirements. Unlike encoder-based detection, amperometric monitoring works without a dedicated position encoder, using the motor’s own electrical signature as the safety sensor — a simpler and mechanically robust approach well-suited to the WG4024’s 24V DC design.

The NICE WINGOKIT 4024 BD is compatible with five NICE smart integration options, all supplied separately: BiDi WiFi (wireless bidirectional add-on), Pro-View (NICE’s professional monitoring platform), O-View (NICE’s app-based operator overview tool), Core gateway (NICE’s smart home hub connecting gate automation to wider home systems), and IT4WIFI (standalone WiFi module for smartphone control). For Abu Dhabi villa owners wanting smartphone gate control or home automation integration on a 24V WINGO system, these options upgrade the WINGOKIT 4024 BD beyond a standalone radio-only gate kit.

The NICE WINGOKIT 4024 BD carries a 24-month manufacturer warranty. The insulation class A (105°C) limit requires sheltered mounting in Abu Dhabi — sun-exposed pillar positions risk exceeding the winding temperature ceiling in peak summer. The optional PS124 backup battery is recommended for power-cut resilience on a 24V system. The MC424L auto-learning must complete correctly during commissioning — a failed learn cycle means incorrect obstacle detection thresholds. Gate must be balanced and friction-free before installation. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
