Product Overview
RIB K2200 motor is an irreversible sliding gate operator for gates weighing up to 2,200kg, suitable for heavy residential, commercial, warehouse, and large parking entrance automation in Abu Dhabi. The K2200 is available with L1-CRX control board and either electromechanical limit switches or magnetic limit switches. It includes gradual start, electronic force adjustment, soft-stop on approach, and electronic brake as standard features. The official RIB data lists 230V power supply, 0.16 m/s operating speed, IP44 protection, and 70% service rating for the K2200.
Key Features and Technical Specifications
- Brand: RIB
- Product model: K2200
- Product type: Irreversible sliding gate operator
- Maximum gate weight: 2,200kg
- Versions: K2200 FCE with electromechanical limit switches; K2200 FCM with magnetic limit switches
- Control board: Built-in L1-CRX pc board
- Power supply: 230V
- Operating speed: 0.16 m/s
- Maximum thrust force: 1,150N
- Maximum torque: 39Nm
- Current draw: 1.1A
- Rack module: Module 4
- Actuator weight: 15kg
- Protection grade: IP44
- Operating temperature: -10°C to +55°C
- Suggested daily cycles: 500
- Service rating: 70%
- Guaranteed consecutive cycles: 15 cycles / 10m
- Standard control features: Gradual start, electronic force adjustment, soft-stop on approach, and electronic brake
- Manual release: Personalized key or Allen key, depending on version/setup
- Optional accessory: ACG4665 probe for keeping the operator warm in low-temperature conditions
Use Cases
- Heavy residential sliding gates
- Commercial entrance gates
- Parking access gates
- Warehouse sliding gates
- Large villa entrance gates
- Gated community access points
- Vehicle access automation in Abu Dhabi
Compatibility and Installation Notes
The RIB K2200 motor is compatible with sliding gates up to 2,200kg when the gate moves smoothly, has correct mechanical stops, suitable Module 4 rack, properly aligned photocells, safety edges where required, and a secure 230V electrical supply. Installation must include correct rack-to-pinion clearance, limit switch adjustment, safety-device testing, and force setup through the L1-CRX control board. For more technical setup details, refer to the official installation manual. Professional installation is recommended because a heavy sliding gate requires accurate mechanical alignment, safe electrical wiring, and full compliance with gate safety requirements.

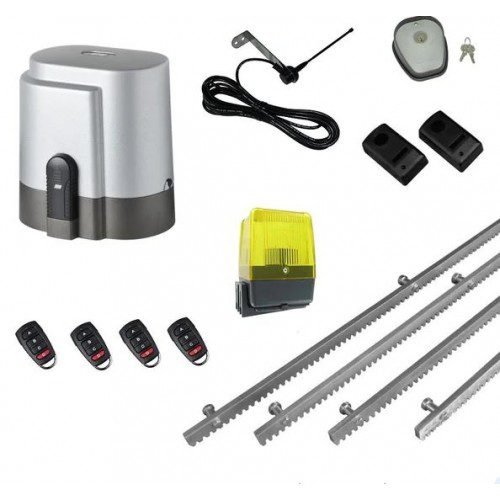

Packing Includes
- 1 x RIB K2200 operator equipped with built-in L1-CRX pc board
- 1 x APP card for Bluetooth control
- 1 x SUN 2CH two-channel transmitter
- 1 x Pair of FIT SIM photocells
- 1 x SAIL blinker with built-in 433MHz antenna
- 1 x Warning plate and instruction manuals
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies reliable gate automation products with local support, product guidance, and installation-focused assistance for Abu Dhabi customers. We help buyers choose suitable motors, safety accessories, and compatible installation parts for smooth long-term gate operation.
Buy RIB K2200 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
