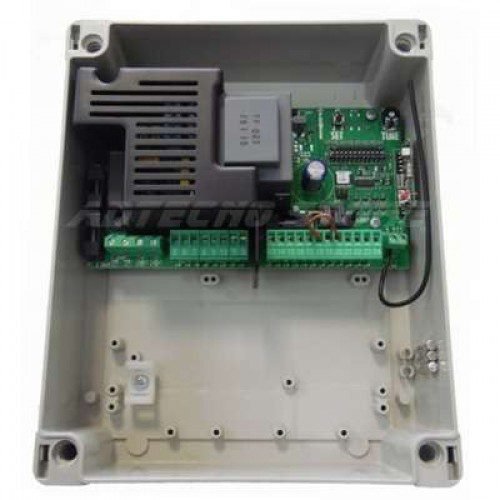

Somfy CB 230 RTS swing gate control cabinet with internal PCB, transformer, terminals and antenna wire.

✓ 100% Genuine Brand Product

★ 1 Year Warranty

➤ UAE Wide Delivery

⚙ Technical Support

Somfy CB 230 RTS Swing Gate Control Board

Name: Somfy CB 230 RTS control board | POWERgate Abu Dhabi
Price: 825 AED
Availability: InStock

230V swing gate control cabinet with RTS 433.42 MHz radio, 128 memorisable channels, IP44 housing, 24Vac accessory output, safety edge support, orange light output and real-time diagnostics.

AED 825

Optional Services: Professional installation +1-Year Warranty (+AED 190)

Product price:	AED 825
Total options:
Order total:

- +

Category: Gate Control Boards Tags: Control Board, RTS Gate Control, Somfy CB 230 RTS, Swing Gate Brand: SOMFY

Product Overview

Somfy CB 230 RTS control board is a 230V control cabinet for swing gate automation systems in Abu Dhabi. It is designed for residential swing gates and is used with compatible Somfy 230V motors, including Ixengo L 230V applications. The unit supports RTS radio control, one-button gate travel learning, one-button remote programming, soft stop, adjustable torque, plug-in terminal blocks, and real-time operating status diagnostics. It is a practical replacement or upgrade module for installers who need safe, structured control of swing gate motors, accessories, photocells, safety edges, and warning lights.

Key Features and Technical Specifications

Brand: Somfy.
Model: CB 230 RTS.
Reference number: 1841212.
Product type: Swing gate control board / control cabinet.
Application: Swing gate motorisation control.
Compatible motor type: Somfy 230V swing gate motors.
Common application: Ixengo L 230V gate automation system.
Power supply: 220/230V, 50/60Hz.
Maximum motor power: 520W.
Radio technology: RTS.
Somfy radio frequency: 433.42 MHz.
Number of memorisable channels: 128.
Protection rating: IP44.
Climatic operating conditions: -20°C to +60°C.
Dimensions: 236 × 194 × 100 mm.
Safety input type: Dry contact NC.
Safety compatibility: TX/RX photoelectric cells, reflex photocell, and 8.2 kΩ resistive safety edge.
Wired control input: Dry contact NO.
Orange light output: 230V, 60W.
Accessories power supply output: 24Vac, 315mA max.
Offset aerial input: RTS antenna compatible.
Automatic closing mode: Programmable timed reclosing from 0 to 120 seconds.
Pedestrian opening control: Available for motorised gate leaf by M1.
Lock release / electric lock release: Configurable active or inactive.
Settings: 2 buttons, 12 DIP switches, trimmer, and LED status indication.
Made in: Italy.

Use Cases

Residential swing gate automation.
Villa entrance gate control systems.
Somfy Ixengo L 230V gate installations.
Swing gate PCB replacement.
Automatic gate maintenance and repair.
Gate control system upgrades.
Access automation systems requiring RTS radio control.
Installations requiring photocell, safety edge, warning light, and accessory control.

Compatibility and Installation Notes

Somfy CB 230 RTS control board should be used with compatible Somfy 230V swing gate motors and validated Somfy safety accessories. Before installation, the motor voltage, motor power, gate leaf movement, photocell wiring, safety edge resistance, accessory load, antenna connection, and lock output configuration must be checked carefully. Professional installation is necessary because wrong wiring, incorrect DIP switch setup, unsafe torque adjustment, or untested safety inputs can damage the system or create unsafe gate movement. For technical safety and wiring details, review the Somfy CB 230 RTS data sheet.

Packing Includes

1 × Somfy CB 230 RTS control module / control cabinet.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies gate control boards with local product support, compatibility checking, and installation-focused assistance for Abu Dhabi customers. Buyers get help selecting the right Somfy replacement control module and matching it correctly with their gate motor, safety devices, and automation accessories.

Buy CB 230 RTS today from POWERgate abu dhabi. Call/WhatsApp: +971 508844933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “Somfy CB 230 RTS Swing Gate Control Board”

Which Somfy 230V swing gate motors does the Somfy CB 230 RTS control board suit?

The Somfy CB 230 RTS (reference 1841212) is the control box for 230V Somfy swing gate motors, including the Ixengo JL 230V and Ixengo JS 230V RTS kits, with a maximum motor power of 520W. The 24V Ixengo L models use a different control unit, so check the motor voltage and model before ordering for an Abu Dhabi villa.

What remotes and radio frequency does the Somfy CB 230 RTS use?

The Somfy CB 230 RTS uses RTS radio at 433.42MHz and memorises up to 128 channels, with an offset aerial input. Use Somfy RTS remotes such as the Keytis, because standard 433.92MHz gate remotes will not pair, and install the offset aerial if the control box sits inside a metal pillar.

How are travel learning, torque, and remotes set up on the Somfy CB 230 RTS?

The Somfy CB 230 RTS offers one-button gate travel learning, one-button remote programming, soft stop, and adjustable torque, set with 2 buttons, 12 DIP switches, a trimmer, and LED status indication. Run travel learning after fitting, then test obstacle reversal, because heavy Abu Dhabi villa leaves change behaviour as hinges wear.

The Somfy CB 230 RTS has dry-contact safety inputs — which devices and loads can it handle?

The Somfy CB 230 RTS accepts dry-contact NC safety inputs for TX/RX photocells, reflex photocells, and an 8.2kΩ resistive safety edge, with a 230V 60W orange light output and a 24Vac, 315mA accessory supply. Add up accessory loads against 315mA before connecting, and test every safety input after fitting.

At AED 825, what enclosure rating and size does the Somfy CB 230 RTS offer?

At AED 825, the Somfy CB 230 RTS ships as one control box, made in Italy, rated IP44 from -20°C to +60°C and measuring 236 × 194 × 100mm. IP44 means splash protection only, so keep it shaded and sealed in Abu Dhabi. Contact POWERgate Abu Dhabi on WhatsApp +971 50 884 4933.
