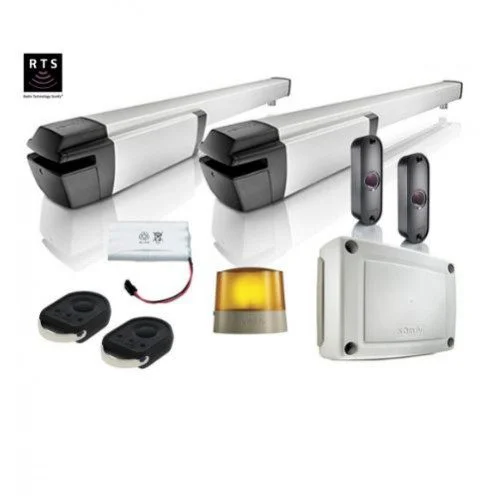

Somfy Ixengo L 24V RTS swing gate kit with motors, remotes and accessories
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

SOMFY IXENGO L 24V RTS Swing Gate Motor Kit

24V screw motorization kit for swing gates up to 4m and 400kg per leaf, with 465mm working stroke, 2000N thrust, 3S RTS control box, 433.42MHz radio, Keygo RTS remotes and safety photocells.



AED 2,425

Product price:AED 2,425
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

SOMFY IXENGO L 24V RTS is a 24V screw motorization kit for swing gates in Abu Dhabi, designed for large and heavy gate leaves within Somfy’s official application limits. The 1216555 Comfort Pack uses RTS radio technology and a 3S control system for smooth, safe, and adjustable gate automation. It is suitable for residential villas, private entrances, and collective gate installations where reliable swing gate movement, magnetic end limits, manual key release, and safety accessories are required. Somfy lists the IXENGO L 24V RTS Comfort Pack under reference 1216555.

Key Features and Technical Specifications

  • Brand: Somfy
  • Product name: IXENGO L 24V RTS Comfort Pack
  • Product reference: 1216555
  • Product type: Screw motorization for swinging gates
  • Technology: RTS
  • Radio frequency: 433.42 MHz
  • Main power supply: 220–230V / 50–60 Hz
  • Motor voltage: 24Vdc
  • Maximum power consumption: 40 W
  • Lighting output: 500 W maximum
  • Accessories power supply: 24Vdc / 1,200 mA
  • Thrust force: 2,000 N
  • Working stroke: 465 mm
  • Minimum room needed behind the leaf: 160 mm
  • Maximum hinge pin offset: 183 mm
  • Manual operation: Individual key
  • Use type: Intensive use
  • Residential / collective installation: Collective
  • Operating temperature: -20°C to +60°C
  • Protection class: IP44
  • Lubrication: Permanent grease
  • Application area: Overall up to 4 m / 400 kg per leaf according to Somfy brochure chart
  • Application detail: 4 m and 170 kg, 3 m and 300 kg, 2.6 m and 400 kg per leaf
  • Electric lock: Recommended by Somfy for leaves above 2 m
  • Installation support: Fix&GO app and adjustable pillar bracket with 11 positions
  • End limits: Magnetic end limits accessible from the top
  • Control system: 3S control box for Ixengo L 24V motorization
  • Remote memory: 40 channels maximum according to Somfy access technical data
  • Compliance note: Somfy installation guide references EN 12453 and EN 13241-1 when installed according to instructions

Use Cases

Compatibility and Installation Notes

The SOMFY IXENGO L 24V RTS should be selected after checking gate leaf length, gate leaf weight, hinge offset, available space behind the leaf, pillar width, bracket position, electric lock requirement, safety photocell position, and control box location. Somfy notes that installation requires a safe mechanical gate structure, correct 230V electrical supply, safety protection, and proper adjustment after installation. Professional installation is recommended for wiring, magnetic end-limit setup, force adjustment, photocell alignment, manual release testing, and compliance checks. For official product limits and pack details, review the Somfy Ixengo L 24V 3S brochure.

Packing Includes

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable swing gate automation products locally for Abu Dhabi customers, with support for product selection, accessories, and professional installation guidance. We help buyers choose the right Somfy gate motor setup for safe, smooth, and long-lasting gate operation.

Buy SOMFY IXENGO L 24V RTS today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “SOMFY IXENGO L 24V RTS Swing Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The Somfy Ixengo L 24V and the Somfy Ixengo JL 230V are both Somfy screw motorizations with permanent grease, IP44, and RTS radio. The Ixengo L 24V uses 24V DC at 40W, 2000N, 465mm stroke, +60°C, and intensive use rating, with backup battery, 3S control box, Keygo RTS remotes, and 24V/1200mA accessory output. The JL 230V uses 230V at 200W, 3000N, 300mm stroke, +55°C, and semi-intensive rating with CB 230 RTS and Keytis 2 RTS. Choose the Ixengo L 24V for intensive-use, battery-backup, higher-temp installations.

The Somfy Ixengo L 24V’s +60°C maximum operating temperature is one of the highest in the POWERgate Abu Dhabi range, exceeded only by LIFE motors at +70°C. Most recent products including the NICE WINGO HS, TO6024HS, and TOONA range are rated to +50°C. Abu Dhabi gate pillar surfaces facing south or west can reach 55–60°C in summer. The Ixengo L 24V’s +60°C ceiling provides meaningful headroom above these surface temperatures, keeping the motor within its rated range throughout Abu Dhabi’s peak summer conditions without thermal shutdowns.

The Somfy Ixengo L 24V Comfort Pack includes a backup battery as standard — the only Somfy kit in the POWERgate Abu Dhabi range to include one in the standard box. The 24V motor draws a maximum of 40W under load, making battery backup practical from a compact battery unit. During Abu Dhabi power cuts, the backup battery maintains gate operation for a defined number of cycles without any manual release. For the intensive use classification the Ixengo L 24V carries, backup power ensures continuity at high-traffic entrances even during grid interruptions.

Somfy’s Fix&GO app is a smartphone-guided installation assistant that walks the installer through correct bracket positioning, motor alignment, and commissioning steps for the Ixengo L 24V. The app calculates optimal geometry based on site measurements. The kit also includes an adjustable pillar bracket with 11 positions — the bracket can be set to 11 distinct fixing geometries without custom fabrication. For Abu Dhabi gate pillars where the hinge-to-motor geometry varies between properties, these 11 positions accommodate a wide range of site conditions without requiring custom brackets or modifications.

The Somfy Ixengo L 24V 3S control system provides a 500W lighting output — significantly more than the CB 230 RTS used in the Ixengo JL and JS kits, which is limited to 60W. The 500W output allows the gate system to power larger 230V floodlights or multiple LED garden lights from the control box directly, without a separate lighting circuit. For Abu Dhabi villa driveways where gate automation is combined with driveway lighting triggered by gate movement, the 500W output provides capacity for practical driveway illumination from one control point.

The Somfy Ixengo L 24V carries a 24-month manufacturer warranty. Critical geometric constraints: the installation requires a minimum 160mm of clear space behind the gate leaf for the screw mechanism’s travel, and the maximum hinge pin offset is 183mm. Exceeding either dimension forces off-axis rod travel that damages the screw. Magnetic end limits accessible from the top must be correctly set during commissioning. Ground stops are compulsory. Electric lock is recommended above 2m. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
