SOMMER GIGAline garage door operator is an industrial-grade automation solution for heavy sectional doors and demanding operating conditions in Abu Dhabi. It is designed for private, collective, underground, and industrial garage environments where higher load capacity and reliable daily operation are required. The GIGAline system uses an industrial door operator with an integrated frequency converter, a tear-resistant steel roller chain, and a robust extruded aluminium rail. With 100 Nm output torque, IP54 protection, and support for spring-balanced sectional doors up to 500 kg, it is built for serious garage door automation applications.
Key Features and Technical Specifications
- Brand: SOMMER
- Product range: GIGAline
- Operator set: GIGAsedo 024.100 DXFS0 Set
- Product type: Industrial garage door operator
- Drive system: Industrial door operator with frequency converter
- Rated voltage: 1~230V
- Rated frequency: 50–60 Hz
- Rated current: 3.45A
- Output torque: 100 Nm
- Output speed: 35 rpm
- Protection class: IP54
- Minimum operating temperature: -5°C
- Maximum operating temperature: +60°C
- Maximum sectional door width: 8,000 mm
- Maximum sectional door height: 3,500 mm
- Standard travel length: 3,060 mm
- Maximum extended travel length: 4,160 mm
- Maximum spring-balanced door weight: 500 kg
- Maximum running speed: 210 mm/s
- Maximum recommended number of parking spaces: 100
- Limit stop range: 14
- Quiet operation: Below 75 dB(A)
- Rail construction: Robust extruded aluminium track
- Chain type: Tear-resistant steel roller chain
- Control system compatibility: GIGAcontrol A R1
- GIGAcontrol A R1 rated voltage: 1~230V
- GIGAcontrol A R1 switching capacity: 1.5 kW
- GIGAcontrol A R1 protection class: IP54
Use Cases
- Industrial sectional garage doors
- Underground parking garage doors
- Collective residential garage entrances
- Commercial parking entrances
- Heavy-load garage door automation
- Warehouse sectional doors
- Large private garage doors
- Abu Dhabi facilities with frequent vehicle access
- Parking areas with up to 100 recommended spaces
Compatibility and Installation Notes
The GIGAline system is suitable for heavy spring-balanced sectional doors within SOMMER’s stated size, travel, and weight limits. It must be installed with correct rail alignment, shaft connection, door balancing, limit setup, safety accessories, and compatible control configuration. Professional installation is not optional here; this is an industrial operator, and poor installation can damage the door system or create safety risks. For technical matching, installers should review SOMMER’s official GIGAline product information before selecting the operator, rail, controller, and accessories.

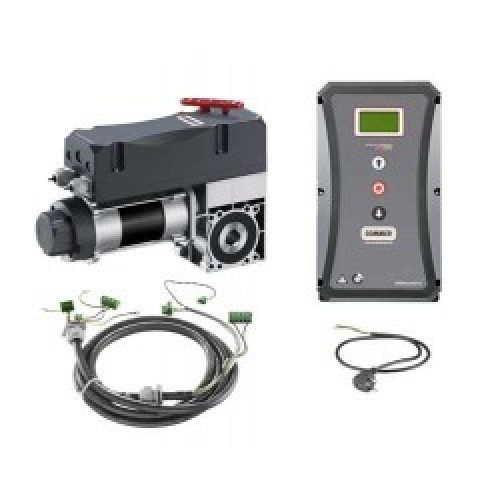

Packing Includes
- 1 x GIGAsedo 024.100 DXFS0 operator set
- 1 x Integrated frequency converter
- 1 x Emergency release system
- 1 x Pull cable, 7 m length
- 1 x GIGAcontrol A control system
- 1 x Connection cable, 7 m
- 1 x Power cable with Schuko angle plug, 1.3 m
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies industrial garage door automation products with local guidance, compatibility support, and after-sales assistance for Abu Dhabi customers. Buyers can get help selecting the right SOMMER operator, checking door suitability, and arranging professional installation support for safe and reliable operation.
Buy SOMMER GIGAline today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
