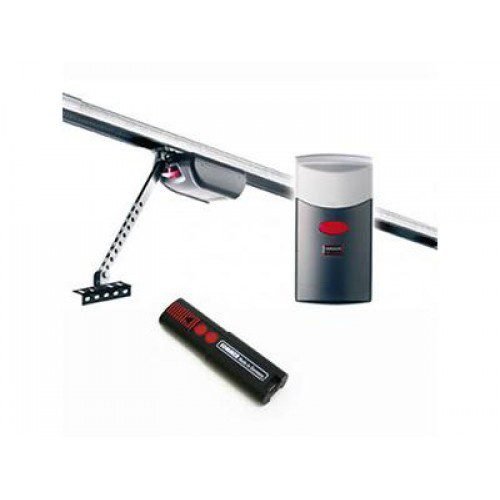

Sommer Duo Vision 650 garage door motor kit with rail, control unit and remote
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Sommer Duo Vision 650 Garage Door Motor

650N garage door operator with 230V AC supply, 868.8 MHz Somloq radio receiver, 112 memory positions, fixed chain drive, obstacle detection, soft running and integrated lighting.



AED 2,350

Product price:AED 2,350
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Sommer Duo Vision 650 garage door motor is a reliable operator for sectional and up-and-over garage doors in Abu Dhabi. It is built with a separate control unit housing, integrated radio receiver, fixed chain system, and travelling motor technology for smooth, quiet, and low-wear operation. The 650N drive force makes it suitable for medium to larger residential garage doors, depending on door size, weight, balance, and rail configuration. It also includes automatic obstacle detection, soft running, backjump function, and integrated lighting for practical everyday garage door automation.

Key Features and Technical Specifications

  • Product type: Garage door operator.
  • Brand: Sommer.
  • Model: Duo Vision 650.
  • Article number: S15001-00001.
  • Maximum tension and compression force: 650N.
  • Rated tension force: 195N.
  • Rated voltage: 230V AC.
  • Rated frequency: 50/60Hz.
  • Rated current consumption: 0.7A.
  • Rated wattage: 150W.
  • Maximum speed: 180 mm/s.
  • Standby power consumption: Approximately 2W.
  • Operating temperature range: -20°C to +50°C.
  • Protection rating: IP20.
  • Radio frequency: FM 868.8 MHz Somloq Rollingcode.
  • Radio memory: 112 memory positions.
  • Lighting: Integrated lighting, max. 32V, max. 18W, BA15s.
  • Control unit: Separate housing for wall or ceiling installation.
  • Integrated interior push-button: Included.
  • Drive system: Fixed chain with travelling motor technology.
  • Obstacle detection: Automatic obstacle detection with reversion.
  • Safety function: Self-locking motor against unauthorised manual opening.
  • Soft running: Controlled soft start and stop operation.
  • Backjump function: Helps reduce stress on the door and operator.
  • Compatible rail units: 1890V000, 1891V000, and 1892V000.

Use Cases

Compatibility and Installation Notes

Sommer Duo Vision 650 garage door motor should be used with compatible Sommer rail units and a mechanically smooth, correctly balanced garage door. The operator is suitable for sectional and up-and-over door applications within the approved force and rail limits. Professional installation is recommended because spring balance, rail fixing, travel learning, radio setup, force limitation, and safety testing must be completed correctly. For technical setup details, refer to the official Sommer product information.

Packing Includes

  • 1 × Sommer Duo Vision 650 garage door operator.
  • 1 × Separate control unit housing with integrated radio receiver.
  • 1 × Integrated interior push-button.
  • 1 × Integrated lighting.
  • 1 × Mounting set.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies Sommer garage door automation products with local support, product guidance, and installation-focused assistance. Customers get help selecting the right motor, compatible rail unit, and safety accessories for reliable garage door operation in Abu Dhabi.

Buy Duo Vision 650 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Sommer Duo Vision 650 Garage Door Motor”

Your email address will not be published. Required fields are marked *

In a standard chain-drive garage operator, the motor is fixed at the ceiling end and the chain pulls a carriage along the rail. The SOMMER Duo Vision 650’s travelling motor technology reverses this: the chain is fixed to the rail and the motor unit itself travels along the chain, driving the door through its movement. This design eliminates the carriage assembly, simplifies the rail profile, and reduces the number of moving components subject to wear, producing the low-maintenance quiet operation SOMMER associates with the Duo Vision range.

The SOMMER Duo Vision 650’s backjump function applies a brief controlled reversal of the motor at the end of each opening and closing travel before the door reaches its final stop position. This slight backward movement before the final stop reduces the mechanical stress on the door’s end-stop hardware, spring mechanism, and track by absorbing the door’s residual momentum before it contacts the stop. Over years of daily cycling in an Abu Dhabi garage, the backjump function extends the service life of the door hardware and reduces end-stop impact noise.

The SOMMER Duo Vision 650’s self-locking motor means the gearmotor’s irreversible mechanism cannot be back-driven manually when the motor is de-energised. An intruder attempting to push the garage door up manually cannot overcome the gearbox’s locked output shaft. This provides a secondary security layer on top of any physical door lock — particularly relevant for Abu Dhabi villa garages that are directly connected to the home interior, where the garage door represents a potential entry point if the automation can be manually bypassed.

The SOMMER Duo Vision 650’s 195N rated tension force is the sustained running load at which the motor operates within its continuous thermal rating. The 650N maximum force is the peak available at startup to overcome a heavier door’s initial inertia. The motor operates at 195N during steady travel but can surge to 650N momentarily. Obstacle detection is calibrated to the 195N rated profile — any sustained deviation above this during mid-travel triggers the automatic reversal, not the 650N peak.

The SOMMER Duo Vision 500 does not publish motor force, power, or IP specifications. The SOMMER Duo Vision 650 publishes 650N max, 195N rated, 150W, 0.7A, 180 mm/s, IP20, and 2W standby. Both share FM 868.8 MHz Somloq, 112 memory positions, wall/ceiling control unit, same rail compatibility (#1890–1892), and German build. Kit includes: Duo Vision 650 operator, separate control unit housing with receiver, integrated push-button, integrated lighting, and mounting set. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
