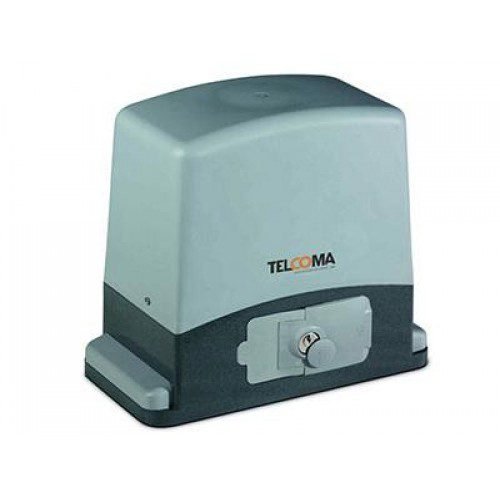

TELCOMA ACE 601 600kg Sliding Gate Motor

24V TELCOMA ACE 601 sliding gate gearmotor for gates up to 600kg, with A124A6 control unit, encoder, magnetic limit switch, 600N thrust, 16m/min speed, intensive cycle and TS10 grease lubrication.



AED 2,700

Product price:AED 2,700
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

TELCOMA ACE 601 Motor is a 24V electromechanical gearmotor for sliding gates up to 600kg in Abu Dhabi. It is designed with an integrated A124A6 control unit, encoder control and magnetic limit switch for safe, accurate gate movement. The motor supports intensive work cycles and provides 600N maximum thrust with 16m/min actuator speed. Its aluminium base, millimetric positioning adjustment and encoded-key release make it suitable for reliable sliding gate automation where safety, control and installation flexibility are important. A related TELCOMA sliding gate motor is the TELCOMA EVO 600.

Key Features and Technical Specifications

  • Product brand: TELCOMA
  • Product model: ACE 601
  • Product type: Electromechanical gearmotor for sliding gates
  • Maximum gate weight: 600kg
  • Motor power supply: 24V DC
  • Maximum motor current: 8A
  • Motor power: 250W
  • Maximum thrust: 600N
  • Actuator speed: 16m/min
  • Work cycles: Intensive
  • Control unit type: A124A6
  • Encoder: Yes
  • Magnetic limit switch: Yes
  • Lubrication: TS10 grease lubricant
  • Integrated control unit: Yes
  • Obstacle detection: Internal sensor sensitivity with encoder control
  • Slowdown ramps: Yes
  • 8K2 safety edge direct control option: Yes
  • Master and Slave configuration: Possible for opposing sliding leaves
  • Programming support: Compatible with Prg-LINK for main control unit parameters
  • Gearmotor positioning: Height and positioning with millimetric settings
  • Manual release: Encoded key release
  • Base construction: Corrosion-treated aluminium

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Commercial property gates
  • Semi-intensive entrance automation
  • Parking entrance gates
  • Warehouse sliding gates where 600kg capacity is suitable
  • Opposing sliding leaf automation using Master and Slave configuration
  • Sites requiring encoder-based safety and magnetic limit switching

Compatibility and Installation Notes

The TELCOMA ACE 601 Motor is compatible with sliding gates up to 600kg, provided the gate structure, track, rack, mechanical stops, electrical wiring and safety accessories are properly prepared before installation. Professional installation is recommended because encoder calibration, magnetic limit switch positioning, control unit setup, slowdown adjustment and 8K2 safety edge connection must be configured correctly for safe operation. For official technical details, refer to the TELCOMA ACE 601 product page.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable sliding gate automation products with local support, product guidance and assistance for selecting the correct motor according to gate weight, entrance usage, safety requirements and installation conditions. We help Abu Dhabi customers choose practical and durable gate automation solutions.

Buy TELCOMA ACE 601 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “TELCOMA ACE 601 600kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The TELCOMA ACE 601’s encoded key release uses a key with a specific coded profile rather than a generic cut key. The encoded key can only be duplicated by an authorised TELCOMA distributor or locksmith with the correct blank, making unauthorised key copying significantly more difficult. For Abu Dhabi commercial and compound gates where gate security extends to the manual release — not just the radio remote — the encoded key prevents a found or stolen standard key from disengaging the motor and allowing unauthorised manual gate movement.

The TELCOMA ACE 601’s millimetric positioning adjustment allows the motor’s height and lateral position to be fine-tuned in sub-millimetre increments after the aluminium base is fixed to the foundation. This level of precision ensures the pinion engages the rack with the exact specified clearance, minimising backlash and uneven tooth wear. For Abu Dhabi installations where foundation concrete placement cannot always achieve perfect positional accuracy, millimetric adjustment eliminates the need to re-pour or re-drill anchor positions.

The TELCOMA ACE 601’s 8K2 safety edge direct control means the A124A6 control unit can directly monitor a resistive safety edge with an 8,200Ω (8.2 kΩ) end-of-line resistor without a separate interface module. When the safety edge is compressed, the resistance changes and the board detects the deviation, triggering reversal. Direct 8K2 connection simplifies wiring by eliminating a resistive edge decoder box. The 8.2 kΩ value is the specific resistance that TELCOMA’s A124A6 board monitors as its safety edge standard.

The TELCOMA ACE 601 uses TS10 — TELCOMA’s proprietary gear lubricant formulated for the ACE range’s internal gear geometry and operating temperature range. Using a non-TELCOMA grease risks incorrect viscosity and premature wear. The corrosion-treated aluminium base has an anti-corrosion surface treatment applied during manufacturing — beyond standard bare aluminium — providing additional resistance to salt air, irrigation overspray, and long-term outdoor exposure in Abu Dhabi’s coastal humidity without painting or external coating by the installer.

The TELCOMA ACE 601 is compatible with Prg-LINK — TELCOMA’s professional programming interface that provides access to all A124A6 control unit parameters via PC or device, including force thresholds, slowdown ramp profiles, and encoder sensitivity. A Master and Slave configuration synchronises two ACE 601 motors on opposing sliding leaves. Key specs: 24V DC, 600 kg, 600N, 16 m/min, 250W, 8A, intensive use, magnetic limit switch. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
