Product Overview

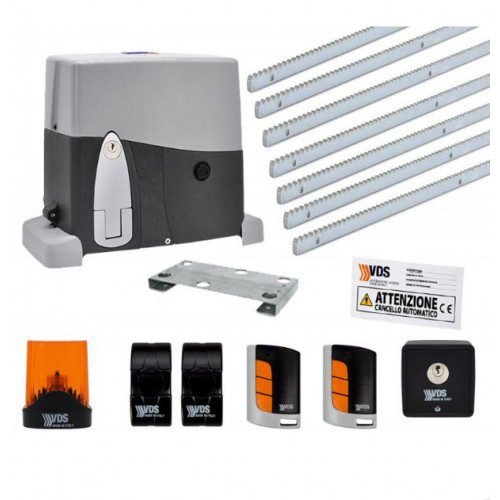

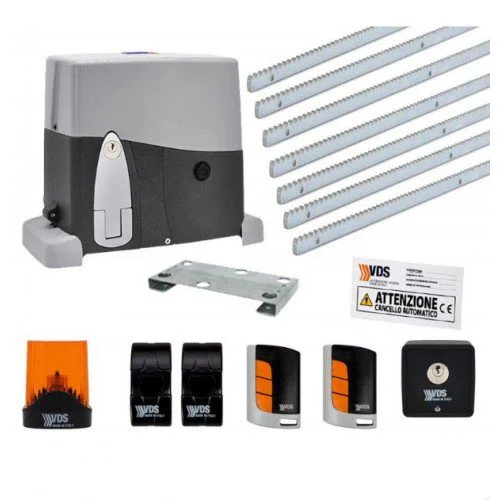

VDS Carrera 1000 motor is a 230V sliding gate operator for gates up to 1000kg, suitable for Abu Dhabi residential, collective, villa, and commercial gate automation. The official VDS Carrera range is designed with a die-cast aluminium powder-coated structure, steel and cast gears, lithium grease lubrication, electronic torque control, and quiet operation. The Carrera 1000 230V model is listed for sliding gates up to 1000kg and is available with or without control unit depending on model code. It is a reliable choice for customers needing strong sliding gate automation with IP44 protection.
Key Features and Technical Specifications
- Brand: VDS Automation
- Product range: Carrera
- Model: Carrera 1000 230V
- Model code without control unit: 100601
- Model code with control unit and built-in 433MHz receiver: 100604
- Product type: Sliding gate operator
- Maximum gate leaf weight: 1000kg
- Power supply: 230V AC
- Pinion: M4-Z16
- Motor RPM: 1400 rpm
- Average absorption: 2A
- Absorbed power: 330W
- Condenser: 12.5µF
- Operator weight: 9kg
- Noise level: <30 dBA
- Operating temperature: -20°C to +55°C
- Protection rating: IP44
- Frequency of use: 50% for 230V version
- Speed: 10 m/min for 230V version
- Structure: Die-cast aluminium, powder painted
- Release device: Customized key
- Battery backup: Optional kit
- Encoder availability: Available with and without encoder
Use Cases
- Residential sliding gates
- Villa entrance gates
- Commercial gate automation
- Collective residential gate systems
- Parking entrance gates
- Warehouse sliding gates
- Heavy sliding gate automation in Abu Dhabi
Compatibility and Installation Notes
The VDS Carrera 1000 motor is compatible with sliding gates up to 1000kg when the gate moves freely, has proper mechanical stops, and is installed with suitable rack, photocells, flashing warning light, antenna, key-switch, and remote-control accessories. Installation requires a 230V electrical line, correct foundation plate positioning, 2–3mm rack-to-pinion clearance, safe wiring, and full safety testing before handover. For more technical setup guidance, refer to the official VDS installation manual. Professional installation is recommended to ensure safe force adjustment, correct limit switch setup, and reliable long-term operation. (VDS Automation)
Packing Includes
- 1 x Geared motor
- 1 x Limit switch accessories
- 1 x Pair of unlocking keys
- 1 x Condenser for 230V AC version
