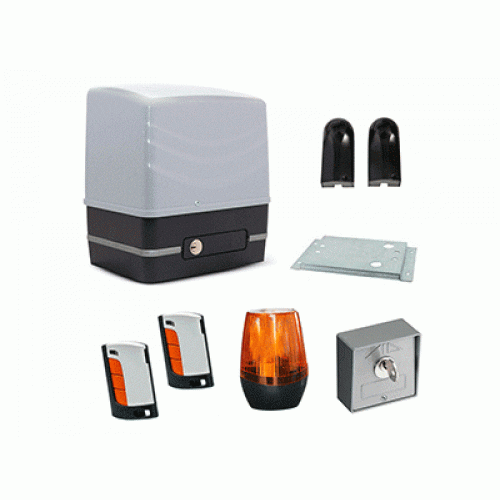

VDS SIMPLY sliding gate motor kit with remotes, photocells, key switch and light
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

VDS SIMPLY Sliding Gate Motor 600 Kg

230V electromechanical sliding gate operator for gates up to 600 kg, with M4-Z12 pinion, 250W absorbed power, 10 m/min speed, IP44 protection, key release, torque control, and slowdown function.



AED 1,750

Product price:AED 1,750
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

VDS SIMPLY gate motor is a sliding gate automation operator for gates up to 600 kg, suitable for Abu Dhabi residential, villa, collective, and light commercial entrances. The SIMPLY range is available in 230 Vac and 24 Vdc versions, with a die-cast aluminium powder-painted structure, steel and cast gears, lithium-grease lubrication, and quiet operation. It supports electronic torque control, anti-squashing system, slowdown function, and optional battery backup. For the 230 Vac 600 kg model, VDS lists an M4-Z12 pinion, 250W absorbed power, IP44 protection, and 10 m/min speed.

Key Features and Technical Specifications

  • Brand: VDS Automation
  • Product model: SIMPLY 230V
  • Product type: Sliding gate operator
  • Official code without control unit: 100010
  • Official code with control unit and built-in 433 MHz receiver: 100010/1
  • Maximum leaf weight: 600 kg
  • Power supply: 230 Vac
  • Pinion: M4-Z12
  • Engine RPM: 1400 RPM
  • Average absorption: 1.3 A
  • Absorbed power: 250 W
  • Condenser: 12.5 µF
  • Operator weight: 8 kg
  • Noise level: Less than 30 dBA
  • Environmental conditions: -20°C to +55°C
  • Protection degree: IP44
  • Speed: 10 m/min for 230 Vac version
  • Frequency of use: 50% for 230 Vac version
  • Operating cycle: Semi-intensive for 230 Vac version
  • Structure: Die-cast aluminium, powder painted
  • Gears: Steel and cast gears obtained from solid
  • Lubrication: Lithium grease for mechanical parts
  • Release device: Customized key release
  • Available with and without encoder
  • Available with and without control unit
  • Anti-squashing system and slowing down function according to EN 12453
  • Optional battery backup kit

Use Cases

Compatibility and Installation Notes

VDS SIMPLY gate motor is compatible with sliding gates up to 600 kg when the gate moves freely, the ground runner is level, the upper guide is firm, and the rack is correctly fixed with proper clearance from the motor pinion. Installation requires safe 230 Vac wiring, secure foundation positioning, limit switch setup, photocell connection, flashing light connection, and final safety testing. VDS states that installation and testing must be performed only by qualified personnel to guarantee safe automatic gate operation; for more technical setup details, refer to the official installation manual. Professional installation is recommended to prevent incorrect wiring, poor alignment, unsafe force settings, and long-term motor damage.

Packing Includes

  • 1 x VDS SIMPLY 230V sliding gate motor
  • 1 x Control unit with built-in 433 MHz receiver: Included only with 100010/1 version
  • 1 x Limit switch accessories
  • 1 x Pair of unlocking keys
  • 1 x Condenser for 230 Vac version
  • 1 x Counterplate / fixing plate: Included in official kit composition
  • 2 x Transmitters: Included in official kit composition
  • 1 x Pair of photocells: Included in official kit composition
  • 1 x LED flashing light: Included in official kit composition
  • 1 x Key selector: Included in official kit composition
  • 1 x Warning sign

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable sliding gate automation products with local support, technical guidance, and professional installation assistance. We help buyers choose the correct VDS SIMPLY version based on gate weight, site usage, control unit requirement, and safety accessories.

Buy VDS SIMPLY today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “VDS SIMPLY Sliding Gate Motor 600 Kg”

Your email address will not be published. Required fields are marked *

The VDS SIMPLY’s M4-Z12 pinion (12 teeth) has a smaller pitch circle than the VDS Carrera 1000’s M4-Z16 (16 teeth). Fewer teeth produce a higher gear reduction ratio at the same motor RPM, meaning the Z12 generates more torque per revolution but covers less rack distance per turn. Both motors run at 1400 RPM and achieve 10 m/min gate speed, confirming the gearbox reduction compensates for the different pinion size. The Z12 suits the SIMPLY’s lighter 600 kg load profile.

The VDS SIMPLY’s anti-squashing system with slowdown function complies with EN 12453 — the European standard for forces on powered gate leaves. The anti-squashing system monitors force during travel and reverses if resistance exceeds the set threshold, protecting a person or object caught between the gate and a fixed structure. The slowdown function reduces gate speed before the limit positions, lowering kinetic energy at end of travel. Together, these meet EN 12453’s maximum impact-force limits for Abu Dhabi safe gate installation.

The VDS SIMPLY’s official kit composition includes a key selector — a key-operated switch that activates the gate without a radio remote, typically mounted on the gate pillar or entrance wall. The VDS Carrera 1000 standard packing does not include a key selector. For Abu Dhabi gates where delivery drivers, security personnel, or visitors need physical key access without a remote — such as gated compound service entrances or controlled villa delivery points — the included key selector adds a practical access option from the factory kit.

Yes — both the VDS SIMPLY and VDS Carrera 1000 are rated at less than 30 dBA, confirming this is a VDS Automation brand standard applied across the range. The shared noise level reflects VDS’s consistent use of steel and cast gear combinations obtained from solid and lithium grease lubrication across their motor range. For Abu Dhabi buyers who prioritise near-silent gate operation regardless of gate weight (600 kg or 1000 kg), both VDS motors achieve the same acoustic performance.

The VDS SIMPLY 100010/1 complete kit is significantly more equipped than the Carrera 1000’s motor-only packing. SIMPLY includes: motor, control unit with 433 MHz receiver, limit switch accessories, unlocking keys, 12.5µF condenser, counterplate, 2× transmitters, photocell pair, LED flashing light, key selector, and warning sign. The Carrera 1000 includes only motor, limit switch accessories, keys, and condenser. Code 100010 is motor-only; 100010/1 is the full kit. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
