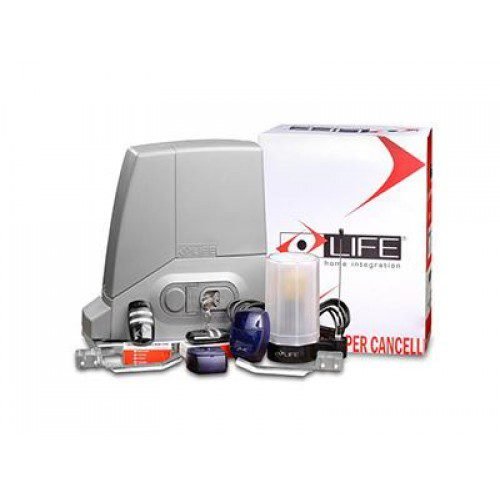

LIFE ACER AC6R DL sliding gate motor kit with remotes, photocells and warning light
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

LIFE ACER AC6R DL 600kg Sliding Gate Motor Kit

LIFE ACER AC6R DL 042 sliding gate operator for gates up to 600kg, with 230V AC supply, optical encoder, built-in ECU, 10m/min speed, grease lubrication and outdoor housing.



AED 1,275

Product price:AED 1,275
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

LIFE ACER Gate Motor is a sturdy sliding gate automation system for Abu Dhabi customers who need reliable operation for gates up to 600kg. The AC6R DL 042 model is part of the ACER range, designed as an irreversible electromechanical gear motor with encoder-assisted safety and Digital LIFE board control. It is built with a tough aluminium structure, outdoor-coated motor body, grease lubrication and 230V AC operation. With a supplied kit including remotes, photocells, blinker, rack and push button, it is suitable for residential and light commercial sliding gate automation.

Key Features and Technical Specifications

  • Product range: LIFE ACER
  • Product model: LIFE SETUP AC6R DL 042
  • Product type: Irreversible electromechanical sliding gate motor
  • Maximum gate leaf weight: 600kg
  • Motor version: AC6R DL
  • Power supply: 230V AC, 50Hz
  • Motor power supply: 230V AC
  • Motor power: 380W
  • Maximum absorption at pick-up: 1.2A
  • Capacitor: 14µF
  • Thrust: 700N
  • Lubrication: Grease
  • Thermal protection device: 140°C
  • Limit switch: 2 electromechanical limit switches
  • Encoder: Optical encoder
  • Speed: 10m/min
  • External toothed wheel module: 4
  • Number of teeth on external toothed wheel: 18
  • Work cycle: 35%
  • Nominal work time: 10 minutes
  • Operating temperature: -20°C to +70°C
  • Protection class: IP44 / IP55 with magnetic limit switch
  • Motor insulation class: F
  • Assembly: Horizontal with dedicated anchorage plate
  • Dimensions / weight: 170mm plate × 342mm × 288mm height / 10kg
  • Structure: Tough lightweight aluminium
  • External shell: Designed to protect against impacts
  • Motor body coating: Polyester paint for outdoor use
  • Battery backup: Optional battery kit, battery not provided by manufacturer
  • Origin: Made in Italy

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Private parking entrances
  • Light commercial sliding gates
  • Small business access gates
  • Warehouse entrance gates where 600kg capacity is suitable
  • Sliding gates requiring encoder-assisted movement control
  • Sites needing remote-controlled gate access with safety photocells

Compatibility and Installation Notes

The LIFE ACER AC6R DL 042 is compatible with sliding gates up to 600kg where the gate frame, track, rack, end stops, electrical supply, photocells and manual movement are correctly prepared before commissioning. Professional installation is required because rack alignment, limit switch positioning, encoder setup, control board configuration and safety testing directly affect performance and user safety. The motor should not be used in acid, saline or potentially explosive environments, and the gate must move smoothly before automation is fitted. For broader technical selection guidance, review LIFE’s official notes on choosing sliding gate automation.

Packing Includes

  • 1 × LIFE SETUP AC6R DL 042 sliding gate motor
  • 2 × MAXI2 remote controls, 433.92MHz rolling code
  • 1 × Pair of VISIO photocells for outdoor use
  • 1 × Blinker light with antenna and coaxial cable
  • 1 × Built-in control unit
  • 4 × Nylon rack, 1m each
  • 1 × Push button
  • 1 × Fixing bracket

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable sliding gate automation products with local support, product guidance and practical assistance for selecting the correct motor according to gate weight, usage level and site conditions. We help Abu Dhabi customers buy suitable automation with confidence and proper technical direction.

Buy LIFE ACER today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “LIFE ACER AC6R DL 600kg Sliding Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The LIFE ACER AC6R DL 600 kg (SETUP AC6R DL 042) uses 230V AC, 700N thrust, optical encoder, Z18 M4 toothed wheel, 14µF capacitor, 1.2A pick-up absorption, 10 m/min, 35% duty, -20°C/+70°C, and IP44 (IP55 with magnetic switch). For Abu Dhabi gates under 400 kg, the LIFE AC4R DL at 500N is the step down. The AC6R DL suits residential villas, commercial entrances, and light warehouse access gates within its 600 kg rating.

The LIFE ACER AC6R DL’s optical encoder tracks motor shaft rotation using a light-interrupted slotted disc, generating precise position pulses throughout every gate cycle. This allows the RG1R DL board to apply graduated slowdown before the limit switches and detect obstacles by deviations from the learned position profile. At 600 kg and 10 m/min, encoder-controlled deceleration reduces impact forces at end stops, protecting the gate structure and limit switches from sustained mechanical stress.

The LIFE ACER AC6R DL’s 14µF run capacitor provides the reactive current needed to start the asynchronous motor against 600 kg gate inertia reliably at 230V. The 1.2A maximum absorption at pick-up confirms the startup current demand from the mains circuit. Class F motor insulation is rated to 155°C continuously — significantly above the 140°C thermal switch cut-off — providing a safety margin that protects winding insulation before the thermal device activates in Abu Dhabi summer conditions.

The LIFE ACER AC6R DL explicitly supports an optional battery backup kit, allowing the gate to operate during Abu Dhabi power cuts. The battery connects via the RG1R DL board’s battery input; the board manages charging and switchover automatically. The horizontal assembly with dedicated anchorage plate secures the motor to a pre-cast or bolted foundation, with the control board accessible from the front. Kit includes MAXI2 remotes, VISIO photocells, blinker with antenna, 4m rack, and push button. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
