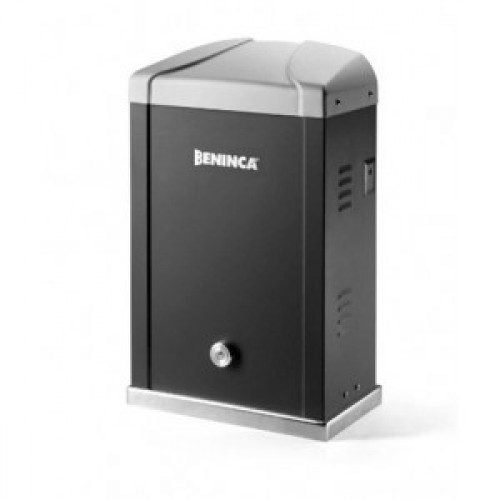

Beninca BISON 35 OTI sliding gate motor with industrial housing and key release
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

BENINCA BISON35 OTI 3500 kg Sliding Gate Motor

400 Vac three-phase sliding gate operator for gates up to 3500 kg, with built-in control unit, integrated receiver, encoder, inverter, IP44 protection, oil lubrication and 19 m/min speed.





AED 0

Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

BENINCA BISON35 OTI Motor is a heavy-duty sliding gate automation solution for Abu Dhabi industrial and high-traffic properties. Designed for sliding gates up to 3500 kg, this 400 Vac three-phase operator is suitable for demanding gate systems where strength, precision, and intensive duty performance are required. The motor comes with an integrated control unit, integrated receiver, encoder, and inverter technology for controlled acceleration, deceleration, and safer gate movement. Its oil-lubricated full-metal mechanism supports long service life, making it a strong choice for industrial entrances, warehouses, commercial access points, and large residential gate automation projects.

Key Features and Technical Specifications

  • Brand: BENINCA
  • Model: BISON35 OTI
  • Product type: Sliding gate geared motor
  • Application: Industrial sliding gate automation
  • Maximum gate weight: 3500 kg
  • Power supply: 400 Vac, 50–60 Hz
  • Motor supply: 400 Vac
  • Phase type: Three-phase
  • Maximum absorbed current: 3 A
  • Maximum thrust: 3000 N
  • Opening speed: 19 m/min
  • Duty cycle: Intensive use
  • Protection level: IP44
  • Built-in control unit: Yes
  • Integrated receiver: Yes
  • Receiver capacity: 64 transmitters
  • Encoder: Yes
  • Inverter technology: Yes
  • Virtual encoder: No
  • Magnetic limit switches: No
  • Pinion for rack: M6 Z13
  • Operating temperature: -20°C to +50°C
  • Lubrication: Oil
  • Operator weight: 50.8 kg
  • Foundation plate: Not included by manufacturer
  • Optional built-in FTC.S photocells: Available as accessory
  • Remote controls, photocells, nylon rack, blinker light, and push button in standard manufacturer packing: Not specified by manufacturer

Use Cases

  • Industrial sliding gates up to 3500 kg
  • Commercial property entrances
  • Warehouse access gates
  • Factory and logistics facility gates
  • Condominium and shared property access points
  • Large villa sliding gates requiring heavy-duty automation
  • Parking entrance automation
  • High-frequency access control locations

Compatibility and Installation Notes

The BENINCA BISON35 OTI Motor is compatible with heavy sliding gates up to 3500 kg and requires a 400 Vac three-phase electrical supply. Installation must include correct gate alignment, rack positioning, safety device setup, control unit programming, and operational testing before use. Because this is an industrial operator with encoder and inverter-controlled movement, professional installation is strongly recommended to avoid incorrect wiring, unsafe force settings, or poor gate travel performance. For more technical details, refer to the official Benincà product information. (Automatismi Benincà)

Packing Includes

  • 1 x BENINCA BISON35 OTI sliding gate motor with built-in control unit
  • Integrated receiver: Included with operator

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products with local support, practical product guidance, and installation-focused assistance for customers in Abu Dhabi. For a heavy-duty product like the BENINCA BISON35 OTI, correct selection and installation support matter more than cheap guesswork. Buying locally helps you get faster communication, better product matching, and support for industrial gate automation requirements.

Buy BENINCA BISON35 OTI Motor today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “BENINCA BISON35 OTI 3500 kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The BENINCA BISON35 OTI positions between the BISON25 OTI (230V/2500kg/2500N/41.2kg) and the Beninca BISON 45 OTI (400V/4500kg/5000N/66kg). The BISON35 uses 400 Vac three-phase at 3A, handles 3500 kg at 3000N, weighs 50.8 kg, and runs at 19 m/min intensive duty. For Abu Dhabi industrial sites needing more than 2500 kg capacity but where 400V three-phase is already available, the BISON35 is the intermediate heavy-duty selection.

The BENINCA BISON35 OTI uses an M6 Z13 pinion — module 6 with 13 teeth. The BISON25 OTI uses M4 Z18 (smaller module, more teeth) and the BISON45 OTI uses M6 Z18 (same module, more teeth). The M6 Z13 produces a different gear-to-rack engagement ratio and must be matched with M6-compatible steel or nylon rack. Using incompatible rack pitch causes rapid pinion and rack wear on a 3500 kg gate. Confirm the correct M6 rack specification with POWERgate Abu Dhabi before ordering rack sections.

The BENINCA BISON35 OTI standard packing includes only the motor with built-in control unit and integrated receiver. Unlike the BISON25 OTI (which includes foundation plate and anchor bolts) and the BISON45 OTI kit (which includes photocells, remotes, and rack), the BISON35 has no foundation plate, no photocells, no remote controls, no rack, and no blinker. All these must be specified and ordered separately. Optional FTC.S built-in photocells are available as an accessory from BENINCA.

The BENINCA BISON35 OTI combines three movement-control technologies. The encoder tracks gate position accurately throughout every cycle. The inverter varies motor speed during acceleration and deceleration, preventing shock loading at start and stop on a 3500 kg gate. The oil-lubricated full-metal gearbox maintains low friction under heavy load and intensive cycling. Together these enable smooth, repeatable gate movement at 3000N thrust and 19 m/min with safe obstacle response through the encoder’s force monitoring.

The BENINCA BISON35 OTI carries a 24-month BENINCA manufacturer warranty. Pre-installation requirements: confirm 400 Vac three-phase supply at the gate location; source a compatible foundation plate (not included) before groundwork; specify M6-compatible rack matching the M6 Z13 pinion; order photocells, safety edges, warning light, and remote controls separately. Price is available on request. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
