Product Overview
Beninca BULL15M gate motor is a 230 Vac sliding gate operator designed for heavy sliding gates up to 1500 kg. It is suitable for Abu Dhabi properties that need reliable gate automation for commercial entrances, villa gates, shared access points, and parking gates. The motor comes with an integrated control unit and receiver, helping reduce external control panel requirements. Its encoder supports safer and more accurate gate movement during operation. With a 60% duty cycle, 1250 N maximum thrust, and IP44 protection, the BULL15M is a strong option for demanding sliding gate automation applications.
Key Features and Technical Specifications
- Brand: Benincà
- Model: BULL15M
- Product type: Sliding gate motor / geared motor
- Application: Commercial use
- Power supply: 230 Vac, 50–60 Hz
- Motor supply: 230 Vac
- Maximum gate weight: Up to 1500 kg
- Maximum absorbed current: 2.5 A
- Maximum thrust: 1250 N
- Opening speed: 10.5 m/min
- Duty cycle: 60%
- Protection level: IP44
- Built-in control unit: Yes
- Integrated receiver: Yes
- Encoder: Yes
- Virtual encoder: Yes
- Receiver storage: Up to 64 transmitters
- Pinion for rack: M4 Z18
- Operating temperature: -20°C to +50°C
- Lubrication: Grease
- Motor weight: 19.6 kg
- Foundation plate with anchor bolts: Included by manufacturer
- Magnetic limit switches: Not specified for the standard BULL15M model; BULL15M.S is the magnetic-limit-switch variant
Use Cases
- Commercial sliding gates up to 1500 kg
- Villa and private property sliding gate automation
- Parking entrance gates
- Shared residential access gates
- Warehouse access gates
- Business premises with controlled vehicle entry
- Heavy sliding gates where 230 Vac automation is required
- Gate automation projects requiring an integrated receiver and control unit
Compatibility and Installation Notes
The Beninca BULL15M gate motor should be installed on a correctly aligned sliding gate with suitable rack, foundation fixing, safety photocells, warning light, and properly protected 230 Vac electrical supply. Gate weight, gate movement, rack position, floor level, and opening force must be checked before installation. The standard BULL15M should not be confused with the BULL15M.S version if magnetic limit switches are specifically required. Professional installation is strongly recommended because incorrect wiring, force setting, photocell placement, or rack alignment can damage the motor or create safety risks. For detailed technical reference, review Benincà’s BULL15M product information. (Automatismi Benincà)

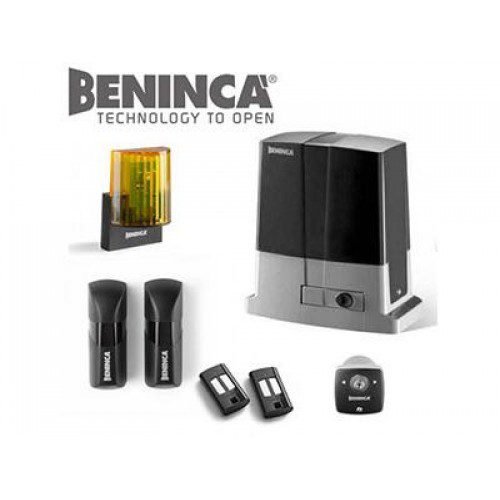

Packing Includes
- 1 × Benincà BULL15M gate motor
- 2 × Benincà remote controls, 433.92 MHz
- 1 × Pair of outdoor photocells
- 1 × Built-in control unit inside the motor
- 4 × Nylon racks, 1 metre each
- 1 × Blinker light
- 1 × Push button
- 1 × Foundation plate with anchor bolts
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies gate automation products with local support, practical product guidance, and installation-focused assistance for Abu Dhabi customers. We help buyers choose the correct motor capacity, accessories, and safety components for smooth sliding gate automation.
Buy Beninca BULL15M today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
