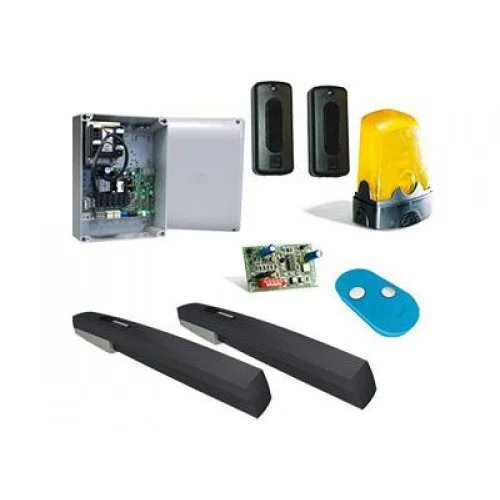

CAME AXL 2M Swing Gate Motor Kit

The CAME AXL 2M and AMICO A18230 share three distinctive CAME design features: trilobe key release, three-conductor cable connection, and 2.2m/200kg gate capacity. However, they differ in motor technology and kit completeness. The AXL 2M uses a 24V DC encoder motor with bevel gear and is supplied as a complete kit with control board, accessories, and all installation components. The AMICO A18230 uses a 230V AC motor without encoder and is sold as a single motor only. The AXL 2M’s encoder enables partial pedestrian opening and precise position-based slow-down; the AMICO relies on adjustable mechanical limits. The AXL 2M also explicitly supports up to 25 remote users on its control board. For buyers who prefer an all-inclusive 24V encoder kit, the AXL 2M is the stronger choice; for simpler 230V wiring, the AMICO A18230.

The CAME AXL 2M’s power outage readiness refers to the system’s ability to be manually operated quickly and safely when mains power is lost. The trilobe key release disengages the bevel gear from the motor drive, allowing the gate leaf to be pushed open or pulled closed by hand. Unlike some motors where the release is difficult to access or requires tools, the AXL 2M’s trilobe key design is intended for fast, straightforward manual disengagement. This readiness also implies the system can be connected to a battery backup or UPS supply via the standard 24V input to maintain motorised operation during power cuts — an advantage of 24V systems over 230V motors that cannot easily accept battery backup. For Abu Dhabi properties where 24/7 gate access is essential, compatibility with a 24V backup battery is a meaningful practical advantage.

The AXL 2M’s control board can store up to 25 individual remote control codes in its memory — meaning 25 different remote transmitters can be paired to the system, each operating the gate independently. For an Abu Dhabi villa with multiple family members, domestic staff, and regular visitors, 25 remote codes provides individual access for up to 25 people. Each code is stored independently, so one specific remote can be deleted from memory (for example, when a staff member leaves) without affecting the others. This 25-user capacity is the only explicitly stated control board memory limit in the POWERgate Abu Dhabi swing gate motor range, giving buyers a clear planning figure for access management. Additional remotes can be programmed using the board’s dip switch configuration up to the 25-unit maximum.

The CAME AXL 2M uses integrated adjustable mechanical limit switches alongside the encoder for gate position control — a dual system not seen in the AXI single-motor range. The encoder provides real-time position tracking throughout the cycle for smooth slow-down, precise stop positioning, and partial opening. The mechanical limit switches act as physical safety stops: if the encoder-based position system fails or loses calibration, the mechanical limits physically cut motor power before the gate over-travels its bracket. This redundancy is particularly valuable on a 24V bevel gear motor where encoder calibration drift over time is possible. The combination gives the AXL 2M both the intelligence of encoder control and the reliability of a mechanical backup — making it more robust for long-term residential use than a motor relying on encoder limits alone.

The CAME AXL 2M carries a 24-month manufacturer warranty from purchase covering all kit components including both motors and the control board. Key warranty considerations: the trilobe key must be kept safely — forced manual release without the correct key risks internal damage to the bevel gear release mechanism. The three-conductor cable connection must be correctly wired according to the control board’s terminal block labelling; incorrect wiring is a common cause of encoder signal errors and motor misbehaviour that may appear as a fault but is actually a wiring issue. The 25-user memory should not be exceeded; pairing more than 25 remotes can overwrite existing codes, causing access loss without physical fault. The IP44 rating applies across all kit components and requires sheltered pillar installation. POWERgate Abu Dhabi handles all warranty claims locally — contact us on WhatsApp (+971 50 884 4933) or at sales@powergatead.com.
