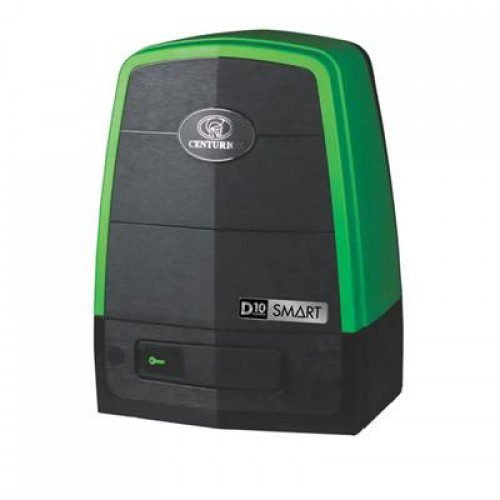

Centurion D10 Turbo SMART Sliding Gate Motor Kit

Product Overview

Centurion D10 Turbo SMART is a high-speed sliding gate motor designed for lighter gates that need fast, reliable and secure operation in Abu Dhabi. It is suitable for sliding gates up to 250kg and delivers rapid gate movement for improved access control performance. This 24V operator includes SMART technology features for convenient setup, system monitoring and dependable gate automation. With electronic collision sensing, lockable manual override and built-in receiver storage, the D10 Turbo SMART is a strong choice for residential, commercial and light-industrial entrances where speed, safety and controlled access are important. (centsys.co.za)

Key Features and Technical Specifications

• Brand: Centurion Systems
• Product model: D10 Turbo SMART
• Product type: Sliding gate motor
• Maximum gate weight: 250kg
• Gate speed: Up to 43m/min as per Centurion product page; up to 45m/min as per installation manual technical table
• Motor voltage: 24V battery-driven motor system
• Input voltage: 90V – 240V AC ±10% @ 50Hz
• Battery charger current output: 1.8A @ 27.4V ±1%
• Maximum operations per day: 750, based on manufacturer conditions
• Duty cycle with mains present: 25%
• Motor current consumption at rated load: 10A
• Starting push force: 24kgf
• Rated push force: 18kgf
• Maximum gate length: 50m
• Manual override: Lockable with key release
• Collision sensing: Electronic
• Operating temperature range: -15°C to +50°C
• Onboard receiver: Code-hopping multichannel receiver with selective add and delete
• Receiver storage capacity: 1500 remotes
• Receiver frequency: 433.92MHz
• Protection rating: IP54
• Packed unit mass with standard kit, excluding rack and battery: 13.5kg
• Batteries: Not supplied by manufacturer
• Standard battery requirement: 2 x 12V 7.2Ah batteries, according to manufacturer documentation

Use Cases

• Residential sliding gates requiring faster opening and closing
• Villa entrance gate automation
• Commercial gate access control
• Office park sliding gate systems
• Light-industrial entrances with gates up to 250kg
• Parking and controlled vehicle access points
• High-traffic entrances where fast gate movement is required

Compatibility and Installation Notes

The Centurion D10 Turbo SMART is compatible with sliding gates up to 250kg and is intended for lighter gates where higher operating speed is required. The gate must run freely, stay within the operator’s weight and force limits, and have correct endstops, guide rollers, rack alignment, earthing and safety devices before automation. Professional installation is recommended because the system requires correct foundation positioning, electrical isolation, safety beam connection, force testing, speed setup and final commissioning for safe operation. For technical setup, safety checks and mounting requirements, refer to the official installation manual.

Packing Includes

• 1 x Centurion D10 Turbo SMART sliding gate motor
• 4 x Gate racks
• 1 x Flashing light
• 1 x Pair of photocells
• 1 x NOVA receiver
• 2 x NOVA remote controls
