Product Overview

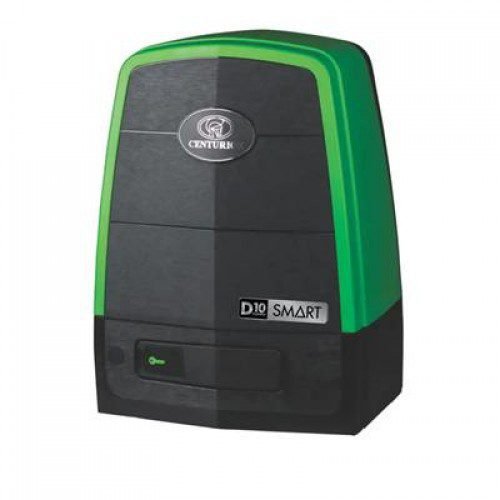

Centurion D10 Smart is a heavy-duty sliding gate motor designed for industrial and commercial gate automation in Abu Dhabi. It is suitable for sliding gates up to 1000kg and supports high-traffic access control applications. The operator uses 24V DC motor technology, SMART connectivity, in-app diagnostics, Hall Effect position control, and electronic collision sensing for reliable gate movement. With its die-cast aluminium gearbox, lockable manual override, onboard code-hopping receiver, and IP54 protection rating, the D10 SMART is built for secure, frequent, and professional sliding gate installations.
Key Features and Technical Specifications
- Brand: CENTURION / CENTSYS
- Model: D10 SMART
- Product type: Industrial and commercial sliding gate operator
- Maximum gate mass: 1000kg
- Maximum gate length: 50m
- Maximum daily operations: 750
- Motor voltage: 24V DC
- Motor power supply: Battery-driven standard capacity, 2 × 12V 7.2Ah
- Gate speed: Up to 26m/min, varies with load
- Motor push force starting: 40kgf
- Motor push force rated: 30kgf
- Collision sensing: Electronic
- Position control: Hall Effect technology
- Manual override: Lockable with key release
- Drive pinion: 17T Module 4
- Receiver type: Code-hopping multichannel receiver with selective add and delete
- Receiver storage capacity: 1500 remotes
- Receiver frequency: 433.92MHz
- Protection rating: IP54
- Operating temperature range: -15°C to +50°C
- SMART features: MyCENTSYS Pro app diagnostics, logs, setup support, and system monitoring
- Gearbox: Die-cast aluminium gearbox
- Packed unit mass with standard kit, excluding rack and battery: 13kg / 13.5kg depending on official regional document version
- Packaging dimensions with standard kit, excluding rack and battery: 350mm wide × 282mm deep × 470mm high
Use Cases
- Commercial sliding gates
- Industrial sliding gates
- Warehouses and logistics entrances
- Office parks and business facilities
- Residential estates and villa compounds
- High-traffic parking entrances
- Heavy-duty access control automation
Compatibility and Installation Notes
Centurion D10 Smart is compatible with sliding gates within the official 1000kg gate mass and 50m gate length limits. Installation requires a suitable gate structure, level track, secure foundation plate, correct rack alignment, safety accessories, and proper electrical setup. CENTURION recommends safety equipment such as safety beams or safety edges for additional protection against entrapment and mechanical risks. Professional installation is strongly recommended because the gate must move freely, meet local safety requirements, and be commissioned correctly through the SMART setup process. For technical installation guidance, refer to the official CENTSYS installation manual.
Packing Includes
- CENTURION D10 SMART standard operator kit: Exact component list not specified by manufacturer
