Product Overview
LIFE Optimo OP5 Swing Gate Motor is a 230V electromechanical swing gate automation kit for Abu Dhabi villas, residential entrances, and light commercial gate systems. The Optimo series is designed as an external-fitting irreversible gear motor for swing gates, with strong aluminium construction and outdoor-ready motor body finishing. The OP5 UNI version is listed by LIFE for gate leaves up to 5 m, with mechanical opening and closing stops, 230V AC power, and 28-second 90° movement time. It is suitable for customers who need a sturdy, versatile swing gate automation solution.
Key Features and Technical Specifications
- Brand: LIFE Home Integration
- Product family: Optimo
- Model: OP5 UNI
- Setup reference: SETUP OP5 UNI DL / SETUP OP5 UNI DL 042
- Product type: Irreversible electromechanical gear motor for swing gates
- Fitting type: External fitting
- Application: Swing gates with two leaves
- Motor power supply: 230V AC
- Frequency: 50 Hz
- Maximum gate leaf length: 5 m
- Power: 210 W
- Thrust: 2000 N
- Rod stroke: 487 mm
- Operating temperature: -20°C to +70°C
- Protection class: IP54
- Work intermittence: 35%
- Time to cover 90°: 28 seconds
- OP5 UNI version: Quick model with mechanical stop for opening and closing
- Pre-wired connector cables: 1 m
- Condenser supplied: Yes
- Release mechanism: Protected against water and foreign bodies
- Motor body: Polyester-painted body for outdoor use
- Maximum gate leaf weight: Not specified by manufacturer as one fixed value; follow the official limit-on-use chart according to leaf length and gate structure
- Rough code “942M”: Not specified by manufacturer in the checked technical sheet
Use Cases
- Abu Dhabi villa swing gates
- Residential entrance gates
- Private property access gates
- Light commercial swing gates
- Parking entrance gates
- Two-leaf swing gate automation
- Warehouse or facility entrances where gate size, weight, and duty cycle are suitable
Compatibility and Installation Notes
The LIFE Optimo OP5 UNI DL setup is designed for two-leaf swing gate automation and should be selected according to the gate leaf length, gate structure, hinge geometry, wind exposure, mounting position, and manufacturer limit-on-use chart. It is compatible with LIFE control and safety accessories such as GE UNI RS DL control unit, VISIO photocells, MAXI 2 transmitters, and SUNLED flashing light when supplied in the correct kit configuration. Professional installation is recommended because bracket alignment, 230V wiring, photocell positioning, force setup, mechanical stop adjustment, and safety testing must be completed correctly. For technical reference, review the LIFE Optimo technical sheet and accessories before installation or product selection.

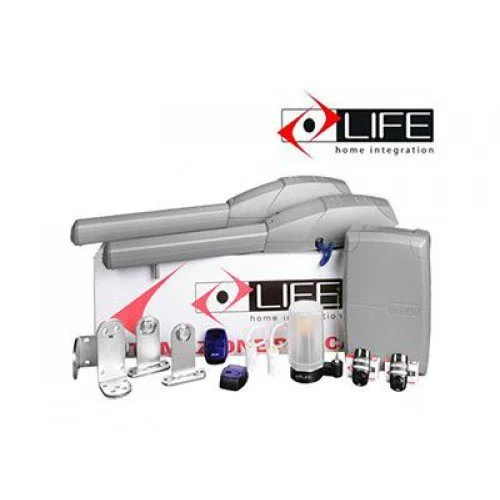

Packing Includes
- 2 x LIFE OP5 UNI gear motors for two-leaf swing gate setup
- 1 x GE UNI RS DL control unit with built-in receiver
- 1 x Pair of VISIO photocells for outdoor use
- 1 x SUNLED 23 flashing light with built-in antenna
- 2 x MAXI 2 transmitters, 433.92 MHz rolling code
- 1 x TL sign plate
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies automation products locally for Abu Dhabi customers, with support for selecting the correct swing gate motor, safety accessories, and installation setup. We help buyers choose reliable LIFE automation products for smooth and safe gate operation.
Buy LIFE Optimo OP5 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
