NICE HYKEBDKCE Swing Gate Opener

Product Overview

NICE HYKEBDKCE Swing Gate Opener is a 24V articulated arm automation kit for swing gates in Abu Dhabi. It is designed for external mounting and is suitable for residential, villa, and light commercial gate entrances where wide posts, offset hinges, or special pillar geometry require an articulated arm solution. The HYKE series uses electromechanical gearmotors with a sturdy anti-shear aluminium arm and is intended for intensive use on residential or industrial swing gates and doors. The kit is suitable for gate leaves up to 3.5 m within manufacturer usage limits.

Key Features and Technical Specifications

• Brand: Nice S.p.A.
• Product code: HYKEBDKCE
• Product type: Articulated arm swing gate automation kit
• Gearmotor models: HK7024 with integrated control unit and HK7224 without integrated control unit
• Motor technology: Electromechanical gearmotor with direct-current motor and mechanical unlocking mechanism
• Mounting type: External / surface mounted
• Gate application: Swing gates and doors
• Maximum leaf length: Up to 3.5 m with leaf weight up to 200 kg
• Maximum leaf weight: Up to 330 kg with leaf width up to 1.8 m
• Peak torque: 500 Nm
• Nominal torque: 120 Nm
• Maximum frequency of operating cycles at nominal torque: 40 cycles/hour
• Maximum continuous operating time at nominal torque: 7 minutes
• Power supply HYKE: 230V~ ±10%, 50/60 Hz
• Maximum power draw at nominal torque: 300 W
• Operating temperature: -20°C to +55°C
• Protection rating: IP54, with container intact
• Dimensions: 210 x 290 x h230 mm
• Weight: HK7024 10.5 kg, HK7224 9.5 kg
• Manual release: Mechanical unlocking with key
• Opening angle: Up to 110° with full-length arm installation; reduced arm configuration allows up to 90°
• Control compatibility: Opera System, BlueBUS system, and Solemyo solar system
• BLUEBUS output: Maximum load of 15 BlueBUS units
• Optional backup battery: PSS124, not included unless supplied separately
• Smart control support: Remote management through compatible Nice gateway Core or IT4WIFI / Yubii ecosystem accessories, not included unless supplied separately
• Obstacle detection and force management: Supported through control unit settings
• Automatic closing and pause time programming: Supported through control unit functions
• Durability estimate: 150,000 to 500,000 cycles depending on installation conditions and severity index
• Use in highly acid, saline, or potentially explosive atmosphere: No

Technical details are based on Nice HYKE installation documentation and Nice technical installer information.

Use Cases

• Abu Dhabi villa swing gates
• Residential entrance gates
• Private estate gate automation
• Gates with wide pillars or offset hinges
• Light commercial swing gates
• Residential compound entrances
• Parking entrance swing gates
• Warehouse or facility swing gates where size, weight, and usage limits are suitable

Compatibility and Installation Notes

The NICE HYKEBDKCE Swing Gate Opener should be selected after checking gate leaf width, gate leaf weight, hinge offset, pillar size, arm clearance, mechanical stops, wiring route, photocell position, and the manufacturer’s usage-limit chart. Installation must be completed by qualified personnel because electrical wiring, BlueBUS safety devices, mechanical unlocking, force settings, opening/closing learning, and final safety testing must be configured correctly. For technical installation guidance, refer to the Nice HYKE installation manual, which explains product limits, wiring, commissioning, and safety warnings.

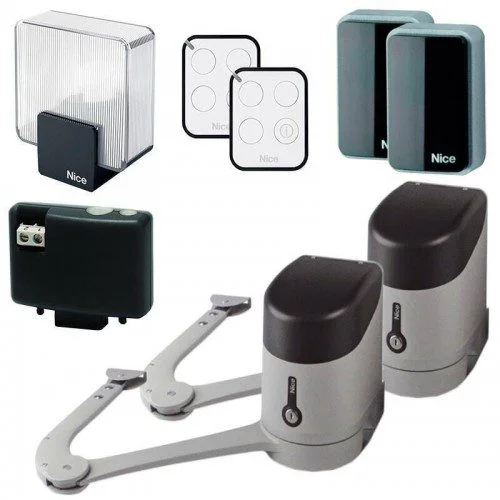

Packing Includes

• 1 x HK7024 24V articulated arm gearmotor with integrated control unit
• 1 x HK7224 24V articulated arm gearmotor without control unit
• 2 x ON2E transmitters
• 1 x EPMB pair of Nice BlueBUS external photocells
• 1 x ELDC LED flashing light
• 1 x TS warning sign plate

Packing list is based on the Nice HYKEBDKCE kit details in Nice technical installer documentation.
