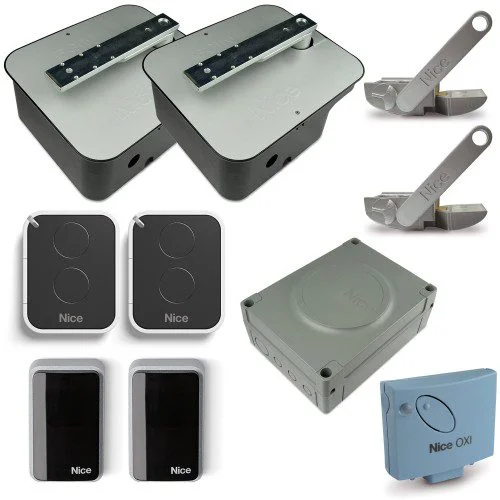

NICE BFAB5024 Underground Swing Gate Opener

The NICE BFAB5024 produces 400 Nm at peak torque — the maximum force applied momentarily during gate startup against inertia or an obstacle — and 100 Nm at nominal torque, which is the sustained force during normal gate movement. The 4:1 ratio between peak and nominal reflects the motor’s ability to burst beyond its continuous rating for short periods to get a heavy or stiff gate moving from standstill, then settle to efficient nominal operation. At 45 cycles per hour, the motor is designed to sustain nominal torque continuously without overheating, while the peak provides the startup force needed for a 5m gate leaf.

Both the NICE BFAB5024 and CAME FROG-X are premium 24V DC underground motors with encoders and IP67 protection for gates up to 5m. The BFAB5024 delivers 400Nm peak/100Nm nominal, 45 cycles/hour, 360° rotation capability, and requires the MC824H panel. The FROG-X delivers Adaptive Speed and Torque Technology, CXN BUS, CAME Connect IoT, 15A peak absorption, and requires the 801QA-0170 panel. The NICE BFAB5024 at AED 6,850 is the higher-priced option; the FROG-X offers more advanced motor management and smart ecosystem integration. Both are at the top of the underground motor range.

Yes — the NICE BFAB5024’s 45 cycles per hour at nominal torque is the highest frequency rating of any underground swing gate motor in the POWERgate Abu Dhabi range. For comparison, the DEA GHOST 100 24V reaches 40 cycles per hour, and most other underground motors range from 10 to 25 cycles per hour. The BFAB5024’s high cycle rate at 24V reflects the 50W nominal / 170W peak power design and the encoder’s precise load management, which keeps the motor operating efficiently at sustained high frequency without excessive thermal buildup.

The MC824H is NICE’s dedicated control unit for the BFAB5024, supporting the motor’s 24V encoder, dual-torque management, and 360° rotation programming. It handles the 7A peak startup current without tripping, decodes the encoder signal for position control and obstacle detection, and manages the timing of the nominal-to-peak torque transition at gate startup. Using any control unit other than the MC824H risks inability to correctly manage the 4:1 peak-to-nominal torque ratio and encoder protocol, potentially causing abrupt motor starts or incorrect position limits on a 5m gate leaf.

The NICE BFAB5024 carries a 24-month manufacturer warranty from NICE, one of Italy’s leading gate automation brands. At AED 6,850 for a single motor, correct installation is essential: foundation drainage must handle Abu Dhabi’s occasional heavy rainfall without water entering the IP67 pit; the MC824H must be the only control unit used; encoder wiring must be screened and routed separately from power cables; and the foundation box position must accommodate the 230×206×h88mm motor dimensions precisely before concrete is poured. NICE mandates qualified installer commissioning. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
