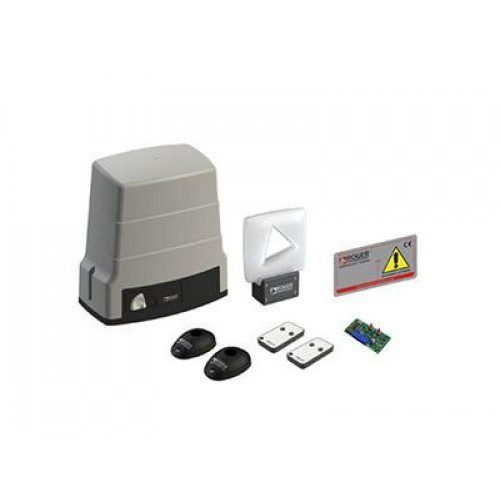

Roger H30/645 sliding gate motor kit with remotes, warning light and accessories
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

ROGER H30/645 600 Kg Sliding Gate Motor

ROGER H30/645 230V AC sliding gate operator for gates up to 600kg, with optical encoder, mechanical limit switch, H70 control unit, 240W motor, 300N thrust, IP43 protection, and 9.5m/min speed.



AED 1,310

Product price:AED 1,310
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

ROGER H30/645 is a 230V AC electromechanical sliding gate motor kit for Abu Dhabi customers who need reliable automation for gates up to 600kg. The official KIT H30/645 uses the H30/643 irreversible motor with built-in H70 control unit, optical encoder, and mechanical limit switch. It is designed for residential and light commercial sliding gates where controlled movement, dependable locking, and safe operation are required. With 240W power rating, 300N thrust, 50% frequency of use, and compact motor dimensions, it is suitable for professional sliding gate automation installations.

Key Features and Technical Specifications

  • Brand: ROGER Technology
  • Kit model: KIT H30/645
  • Motor model inside kit: H30/643
  • Product type: Electromechanical sliding gate motor kit
  • Gate type: Sliding gate
  • Maximum gate weight: 600kg
  • Power line supply: 230V AC, 50Hz
  • Motor power supply: 230V AC
  • Power rating: 240W
  • Frequency of use: 50%
  • Maximum thrust: 300N
  • Operating temperature: -20°C to +55°C
  • Protection level: IP43 as per official H30/643 data sheet
  • Reducer type: Irreversible
  • Manoeuvre speed: 9.5m/min
  • Motor thermal protection: 150°C
  • Limit switch: Mechanical
  • Built-in control unit: H70
  • Encoder: Optical encoder
  • Product dimensions: 315mm × 165mm × 329mm
  • Packaging size: 35cm × 23cm × 35.5cm
  • Fixing base and screws: Included in official motor description

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Light commercial gate automation
  • Private property entrances
  • Parking entrances
  • Small warehouse entrances
  • Sliding gates requiring mechanical limit switch control

Compatibility and Installation Notes

ROGER H30/645 is compatible with sliding gates up to 600kg when the gate is properly aligned, structurally stable, and moving smoothly on its track. Installation requires a solid foundation, correct fixing plate placement, accurate rack-to-pinion alignment, limit switch adjustment, photocell wiring, control unit setup, and safe testing of encoder-based movement control. Professional installation is recommended to ensure reliable operation, correct force settings, and safe access control performance. For more technical information, review the official H30/643 product data sheet.

Packing Includes

  • 1 × ROGER H30/643 sliding gate motor
  • 1 × Built-in H70 control unit
  • 1 × Fixing base with screws
  • 1 × Mechanical limit switch
  • 2 × ROGER E80 remote controls
  • 1 × ROGER R90 photocell sensors
  • 1 × ROGER blinker light
  • 4 × Nylon rack, 1m each
  • 1 × Push button
  • 1 × Fixing plate

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable ROGER sliding gate automation products with local support for residential and light commercial customers. We help buyers select the correct motor, understand installation requirements, and get dependable after-sales support for smooth gate operation.

Buy ROGER H30/645 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “ROGER H30/645 600 Kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The ROGER H30/643 motor’s official data sheet specifies IP43, not the IP44 found on most residential sliding gate motors in the range. The third digit (3) confirms protection against water sprayed at up to 60° from vertical, whereas IP44 confirms protection from water splash from any direction. The first digit (4) confirms the same 1mm solid object protection as IP44. For Abu Dhabi outdoor gate pillars where water can reach from multiple angles via irrigation or rain, a sheltered mounting position is advisable for the H30/643.

The ROGER H30/645’s 300N thrust is the lowest published figure for any 600 kg sliding gate motor in the POWERgate Abu Dhabi range. At 300N, the force margin above a 600 kg gate’s rolling resistance is narrower than motors rated at 600–700N for the same weight. The H30/645 is suitable for well-maintained gates with smooth track, new rollers, correctly aligned rack, and level foundation. Any friction, wear, or misalignment significantly reduces the available margin for obstacle detection sensitivity.

The ROGER H30/643 motor uses the H70 built-in control unit — ROGER Technology’s residential sliding gate board supporting obstacle detection, photocell wiring, and limit switch input. The optical encoder tracks motor shaft rotation continuously, enabling the H70 to measure exact gate travel, apply slowdown before the mechanical limit switches, and detect obstacles via deviation from the learned travel profile. ROGER’s H30/645 kit uses the H30/643 as the motor inside the kit — the 645 designation refers to the complete kit configuration.

The ROGER H30/645 carries a 24-month ROGER Technology warranty. Kit includes: 1× H30/643 motor with built-in H70 control unit and mechanical limit switch, 2× ROGER E80 remote controls, 1× ROGER R90 photocell pair, 1× blinker light, 4× 1m nylon rack, 1× push button, and 1× fixing plate with screws. At AED 1,310, it is one of the most affordable complete 600 kg kits in the range. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
