ROGER R30/1204 1200kg Sliding Gate Motor

Product Overview

ROGER R30/1204 is a 230V AC irreversible electromechanical sliding gate motor designed for commercial and industrial gates in Abu Dhabi. It is suitable for sliding gates weighing up to 1200kg and includes an onboard H70/104AC control unit, optical encoder, and magnetic limit switch. The motor provides 800N thrust, 50% frequency of use, and a manoeuvre speed of 9.5m/min. Its irreversible reducer, IP44 protection, and encoder-based control make it a reliable option for heavy sliding gates where smooth movement, accurate stopping, and dependable access automation are required.

Key Features and Technical Specifications

• Brand: ROGER Technology
• Model: R30/1204
• Product type: Electromechanical sliding gate motor
• Motor type: 230V AC irreversible operator
• Application: Sliding gates
• Maximum gate weight: 1200kg
• Power line supply: 230V AC, 50Hz
• Motor power supply: 230V AC
• Power rating: 420W
• Frequency of use: 50%
• Thrust: 800N
• Operating temperature: -20°C to +55°C
• Protection level: IP44
• Reducer type: Irreversible
• Manoeuvre speed: 9.5m/min, 0.16m/s
• Motor thermal protection: 150°C
• Incorporated condenser: 18µF
• Limit switch: Magnetic
• Onboard control unit: H70/104AC
• Encoder: Optical
• Exit gear type: Z17 / Module 4
• Maximum product dimensions: 325 × 162 × 294mm
• Packed product weight: 16.7kg
• Complete with fixing plate with tie rods and magnetic limit switch

Use Cases

• Commercial sliding gates
• Industrial sliding gates
• Warehouse access gates
• Factory entrance gates
• Parking entrance gates
• Residential compound gates
• High-use access control points
• Sliding gate automation requiring encoder control

Compatibility and Installation Notes

ROGER R30/1204 is compatible with sliding gates up to 1200kg when the gate frame, ground track, rack, foundation, wiring, magnetic limit switch, photocells, and safety accessories are correctly prepared. The gate must move smoothly by hand before automation, and the rack must be aligned correctly with the Z17 Module 4 pinion. Professional installation is recommended because encoder setup, H70/104AC control unit programming, force adjustment, limit switch positioning, earthing, and safety testing must be completed correctly. For technical product details, refer to the ROGER Technology official product page.

Packing Includes

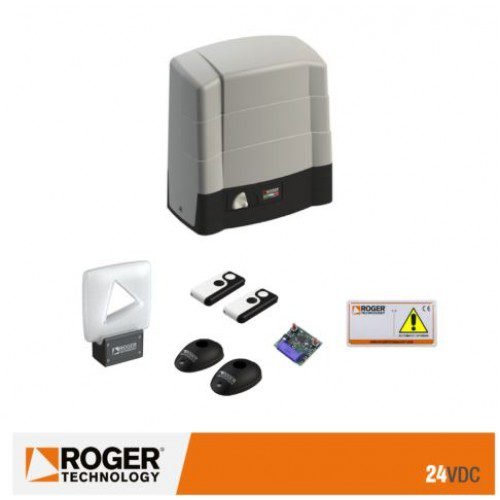

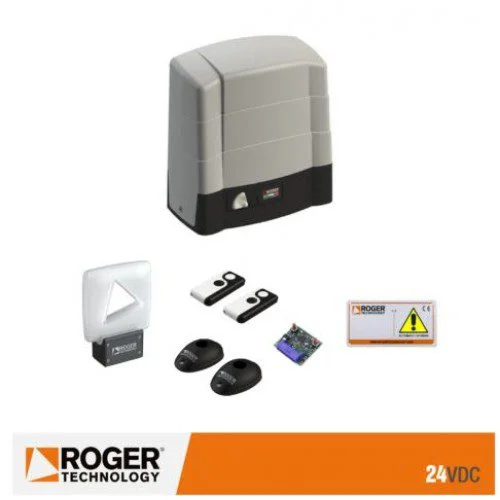

• 1 × ROGER R30/1204 1200kg sliding gate motor
• 2 × ROGER E80 remote controls
• 1 × ROGER R90 photocell sensor pair
• 1 × ROGER blinker light
• 4 × Nylon racks, 1m each
• 1 × Push button
