Roger R20/310 Swing Gate Motor Kit

Product Overview

Roger R20/310 Swing Gate Motor is a 230V AC electromechanical actuator kit for swing gate automation in Abu Dhabi. The official Roger Technology KIT R20/310 is designed for swing gates with leaves up to 2.5 m and includes irreversible R20/300 actuators with an opening microswitch limit switch. This kit is suitable for residential and commercial swing gate installations where a durable 230V motor, strong thrust, and controlled movement are required. With 2500N thrust, IP44 protection, and a 320 mm stroke, it is a reliable choice for professional gate automation projects.

Key Features and Technical Specifications

• Brand: Roger Technology
• Product model: KIT R20/310
• Main actuator model: R20/300
• Product type: Electromechanical swing gate actuator kit
• Technology: 230V AC
• Gearbox type: Irreversible
• Suitable gate leaf length: Up to 2.5 m
• Power line supply: 230V AC, 50Hz
• Motor power supply: 230V AC
• Power rating: 200W
• Frequency of use: 40%
• Thrust: 2500N
• Operating temperature: -20°C to +55°C
• Protection level: IP44
• Manoeuvre speed: 1.66 cm/s
• Opening time: 19 seconds
• Stroke: 320 mm
• Motor thermal protection: 150°C
• Incorporated condenser: 15 µF
• Limit switch: Microswitch in opening
• Closing limit switch: Optional with MC770
• Encoder: Not available
• Maximum product dimensions: 858.5 x 120 x 165 mm
• Packed product weight: 20.8 kg
• Residential use: Suitable
• Commercial use: Suitable
• Supplied with short weld-on brackets, as specified by manufacturer (Roger Technology)

Use Cases

• Residential swing gates in Abu Dhabi
• Villa entrance gate automation
• Commercial swing gate entrances
• Double-leaf swing gate systems
• Parking entrance swing gates
• Warehouse entrance gates where leaf size matches manufacturer limits
• Medium-duty gate automation requiring 230V AC actuators

Compatibility and Installation Notes

Roger R20/310 Swing Gate Motor is compatible with swing gate leaves up to 2.5 m, provided the gate structure, hinge condition, pillar geometry, opening angle, wiring route, and safety accessories are suitable. The kit uses two R20/300 irreversible actuators and an H70/200AC/BOX control unit for two 230V AC motors with slowdown functions. Professional installation is strongly recommended to ensure correct bracket positioning, actuator stroke setup, photocell alignment, flashing light wiring, limit switch adjustment, and safe commissioning. For full technical reference, check the official Roger Technology product sheet and kit composition. (Roger Technology)

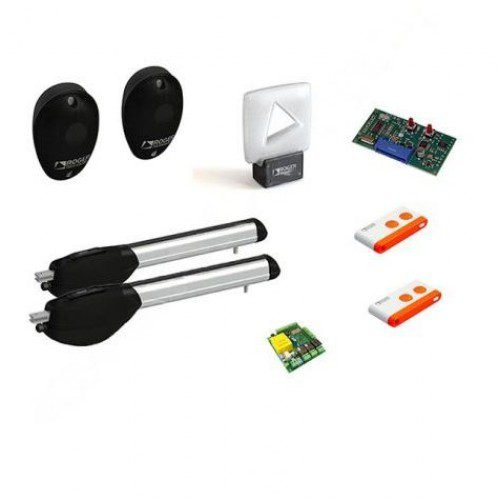

Packing Includes

• 2 x R20/300 electromechanical actuators 230V AC
• 1 x H70/200AC/BOX control unit for 2 motors 230V AC with slowdown functions
• 1 x H93/RX22A/I plug-in 2-channel radio receiver, 433.92 MHz
• 2 x T80/TX2 dual-code transmitters, 433.92 MHz, 2-channel
• 1 x R90/F2ES pair of synchronized external photocells
• 1 x FIFTHY/230 LED flashing light with integrated antenna
• 1 x R99/C/001 “Automatic Opening” signboard
• Short weld-on brackets supplied with actuators (Roger Technology)
