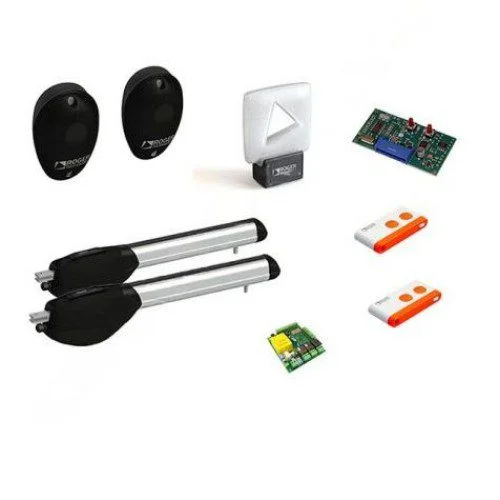

Roger R20/510 swing gate motor kit with actuators, remotes and control parts
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

ROGER R20/510 Swing Gate Motor Kit

230V irreversible electromechanical swing gate kit with R20/500 actuators, 520 mm stroke, 2500 N thrust, H70/200AC/BOX control unit, receiver, transmitter, photocells and LED flashing light.



AED 2,250

Product price:AED 2,250
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

ROGER R20/510 Swing Gate Motor is a 230V AC electromechanical automation kit for swing gates in Abu Dhabi, designed for gate leaves up to 3.5 m. The official Roger Technology listing confirms KIT R20/510 as an irreversible 230V AC swing gate kit with one opening microswitch limit switch, using two R20/500 actuators. It is suitable for residential villas, private entrances, and commercial swing gate applications where a strong linear actuator system is required. (Roge

Key Features and Technical Specifications

  • Model: KIT R20/510
  • Motor included: R20/500 electromechanical actuator
  • Motor type: 230V AC irreversible swing gate actuator
  • Suitable gate leaf length: Up to 3.5 m
  • Power line supply: 230V AC, 50Hz
  • Motor power supply: 230V AC
  • Power rating: 200W
  • Frequency of use: 40%
  • Thrust: 2500 N
  • Operating temperature: -20°C to +55°C
  • Protection level: IP44
  • Reductor type: Irreversible
  • Manoeuvre speed: 1.66 cm/s
  • Opening time: 27 seconds
  • Stroke: 520 mm
  • Motor thermal protection: 150°C
  • Incorporated condenser: 15 µF
  • Limit switch: Microswitch in opening, optional in closing with MC770
  • Encoder: Not specified by manufacturer
  • Product dimensions: 1088.5 x 120 x 165 mm
  • Packed product weight: 23.6 kg
  • Control unit: H70/200AC/BOX for 2 motors, 230V AC, with slow-down functions
  • Receiver: H93/RX433/I plug-in receiver, dual code, fixed code / rolling code
  • Transmitters: T80/TX2 dual-code transmitters, 433.92 MHz, 2 channels
  • Photocells: R90/F2ES pair of external synchronized photocells
  • Flashing light: FIFTHY/230 LED flashing light with integrated antenna
  • Signboard: R99/C/001 “Automatic Opening” signboard

Use Cases

  • Abu Dhabi residential swing gates
  • Villa entrance gates
  • Private home gates
  • Commercial swing gate entrances
  • Small warehouse entrances with suitable swing gate leaves
  • Residential compounds
  • Two-leaf swing gate automation up to 3.5 m per leaf

Compatibility and Installation Notes

The ROGER R20/510 kit is compatible with suitable swing gates up to 3.5 m per leaf when the gate structure, hinge condition, pillar position, opening angle, and mechanical movement are correct. The gate must move freely by hand before automation is installed, and safety accessories such as photocells, flashing light, and warning signage must be fitted properly. Professional installation is recommended for actuator alignment, bracket welding, control board setup, force adjustment, limit switch configuration, and final safety testing. For official manufacturer details, refer to the Roger Technology product data sheet.

Packing Includes

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable gate automation products with local Abu Dhabi support for product selection, installation guidance, and after-sales assistance. We help customers choose the right swing gate motor according to gate size, usage frequency, safety accessories, and site requirements.

Buy ROGER R20/510 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “ROGER R20/510 Swing Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The Roger R20/510 and Roger R20/310 share the same 230V/200W, 2500N thrust, 40% duty, 15 µF condenser, 150°C thermal, IP44, H70/200AC/BOX with slowdown, T80/TX2 remotes, R90/F2ES synchronized photocells, and FIFTHY/230 blinker. The R20/510 steps up to 3.5m with a 520mm stroke taking 27 seconds, in a 1088.5mm housing at 23.6 kg packed. The R20/310 handles 2.5m with a 320mm stroke in 19 seconds at 858.5mm. For Abu Dhabi gates between 2.5m and 3.5m per leaf, the R20/510 is the correct Roger Technology selection.

The Roger R20/500 actuator’s 520mm stroke ranks among the longest in the POWERgate Abu Dhabi surface motor range. Longer strokes include the MOTORLINE LINCE600 (600mm), KINGgates JET XL (540mm), and NICE TOONA 7 (584mm). The R20/510 at 520mm shares the top tier with the GIBIDI BL233 (500mm) and RIB KING EVO L (498mm) — all designed for 3.5–5m gates. The 520mm stroke provides the lever arm geometry needed for the R20/500’s 2500N force to drive a 3.5m gate leaf through its full arc from a standard pillar bracket position.

The Roger R20/510 kit includes the H93/RX433/I plug-in receiver, which supports both fixed code and rolling code radio protocols at 433.92 MHz. The Roger R20/310 includes the H93/RX22A/I receiver with a narrower protocol profile. Fixed code compatibility means the R20/510 works with a wider range of Roger Technology and third-party 433 MHz transmitters, not only the supplied T80/TX2 rolling code remotes. For Abu Dhabi properties where the owner has existing 433 MHz fixed-code remotes from another system, the H93/RX433/I eliminates the need to replace all handsets when upgrading the gate motor.

The Roger R20/500 and R20/300 actuators both deliver 2500N of linear thrust. For a 3.5m gate, the bracket position places the rod further from the hinge, creating a longer lever arm. A longer lever arm means the same 2500N force generates greater rotational torque at the gate hinge pivot — the larger gate actually benefits from the extended geometry. The R20/510’s 520mm stroke provides the rod travel needed for the longer arc at 3.5m, while the motor’s 200W and 40% duty stay unchanged since the torque requirement is met by geometry rather than increased thrust.

The Roger R20/510 kit ships at 1088.5mm in length and 23.6 kg per actuator packed, making it one of the heavier motor kits in the POWERgate Abu Dhabi range. The 1088.5mm body length must clear the gate pillar face, gate leaf travel arc, and any decorative pillar cap in both open and closed positions. At 3.5m gate size, the installer must calculate the correct rear bracket height and C-distance carefully: the long rod fully extended at 520mm must not foul the gate pillar or adjacent wall structure at the widest opening position.

The Roger R20/510 carries a 24-month manufacturer warranty. The kit includes weld-on brackets requiring a welding-capable installer. The H70/200AC/BOX slowdown function must be correctly programmed for the 3.5m gate geometry — a slowdown distance calibrated for a 2.5m gate will activate too early on a 3.5m arc, causing abrupt deceleration. The closing MC770 limit switch accessory is optional but recommended for 3.5m gates where timed closing is less precise. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
