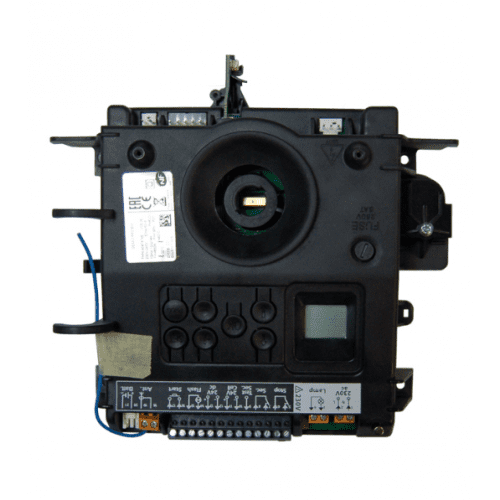

Somfy Dexxo PRO 1000 Control Board

Description

Exact product name available on branded site: ÉLECTRONIQUE DEXXO PRO 1000 RTS L.24V

ÉLECTRONIQUE DEXXO PRO 1000 RTS L.24V

Slug: somfy-dexxo-pro-1000-rts-l-24v-control-board

Product Description

Somfy ÉLECTRONIQUE DEXXO PRO 1000 RTS L.24V is the replacement electronic control board for the Dexxo Pro 1000 RTS garage door drive. It manages the core automation functions of the operator, including command processing, safety input response, built-in lighting control, accessory outputs, radio memory, obstacle detection, and programmable opening and closing behaviour. For replacement work in Abu Dhabi, this board is important because it restores the original operating logic of the drive without replacing the full motor assembly, helping maintain stable movement, accurate setup, and dependable day-to-day automation performance.

Key Features and Technical Specifications

• Official branded product name: ÉLECTRONIQUE DEXXO PRO 1000 RTS L.24V
• Official branded designation: replacement electronics for Dexxo Pro 1000 RTS
• Board type: replacement electronic control board / electronics assembly
• Compatible drive platform: Dexxo Pro 1000 RTS
• Mains supply on the official Dexxo Pro 1000 RTS system: 230 V, 50 Hz
• Max. power consumption: 5 W standby, 600 W in operation with 500 W remote lighting
• Programming interface: 7 buttons with 2-character LCD display
• Built-in radio frequency: RTS 433.42 MHz
• Radio memory capacity: up to 32 channels
• Built-in lighting output: 24 V / 21 W, BA15s socket
• Safety input type: dry contact NC
• Safety accessory compatibility: photoelectric cells, reflex cell, or sensor strip with dry contact output
• Pedestrian door safety input: dry contact NC
• Wired control input: dry contact NO
• Remote lighting output: 230 V, 500 W, class 2
• Orange light output: 24 V, 15 W with built-in flashing control
• Controlled 24 V output available for photoelectric cell self-test
• Safety input test output available for reflex cell or sensor strip self-test
• Accessory power output: 24 V, 500 mA max
• Remote aerial input: RTS aerial compatible
• Backup battery input supported with compatible battery pack
• Automatic closing time programmable from 10 to 120 seconds
• Lighting time delay programmable from 60 to 600 seconds
• Built-in obstacle detection with adjustable sensitivity on 4 levels
• Opening and closing speed programmable
• Operating temperature: -20 °C to +60 °C
• Protection rating: IP20
• Electrical insulation class: Class 2 double insulation

Main Benefits for the Customer

• Restores original Somfy control logic in a compatible Dexxo Pro 1000 RTS system
• Simplifies replacement when the installed electronics board is damaged or unstable
• Supports reliable command management for opening, closing, lighting, and safety functions
• Helps retain compatibility with photocells, warning light, antenna, and backup battery accessories
• Improves operational consistency through programmable timing, speed, and obstacle sensitivity
• Maintains smoother automated movement without replacing the complete drive unit

Use Cases

• Replacement of a damaged control board in a Dexxo Pro 1000 RTS operator
• Residential garage door automation repair
• Restoration of built-in lighting, radio memory, and safety-input functions
• Service replacement where original programming and accessory support must be retained
• Upgrade of a non-functioning Dexxo Pro electronics assembly using the correct spare board

Compatibility and Installation Notes

• Verified on the official Somfy branded spare-parts page for Dexxo Pro 1000 RTS L.24V
• Intended for the Dexxo Pro 1000 RTS drive platform
• The official Dexxo Pro documentation covers garage door applications rather than sliding or swing gates
• Supported system applications in the official manual include projecting up-and-over, sectional, sideways-opening sliding, swinging, and certain semi or non-projecting garage doors when the correct accessories are used
• Confirm the spare part reference and installed drive version before replacement
• Match the original voltage, terminal layout, and accessory configuration before fitting
• Installation, testing, and programming should be carried out by a qualified automation technician
• For setup and terminal verification, review the official manual before installation

Packing Includes

Restore Original Dexxo Automation Control

Choose the correct Somfy replacement electronics for reliable automated door operation in Abu Dhabi — Call/WhatsApp: +971 54 482 5472

Somfy replacement electronics for Dexxo Pro 1000 RTS L.24V, with RTS radio memory, safety inputs, 24 V accessory output, obstacle detection, LCD setup, and programmable operation.
