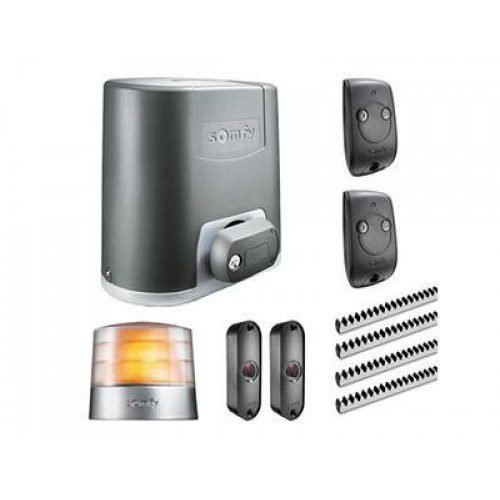

Somfy Elixo 2000 sliding gate motor kit with remotes, rack, photocells and light
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

SOMFY ELIXO 2000KG Sliding Gate Motor

230V RTS sliding gate motor for gates up to 2000kg and 20m, with full-steel reducer gear, built-in position encoder, adjustable obstacle force, safety inputs and oil-bath lubrication.



AED 3,425

Product price:AED 3,425
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

SOMFY ELIXO 2000KG is a powerful 230V RTS sliding gate motor designed for large sliding gates up to 2000kg and 20m. It is suitable for Abu Dhabi commercial properties, industrial entrances, community gates, warehouses, and high-use access points requiring strong, precise, and safe automation. The ELIXO 2000 uses RTS radio technology, a full-steel motor reducer gear, built-in position encoder, and controlled slowing phases for reliable gate movement. It also supports dedicated safety input lines for photocells and safety edge protection.

Key Features and Technical Specifications

  • Product name: SOMFY ELIXO 2000 230V RTS
  • Reference: 1216600
  • Application: Sliding gate automation
  • Technology: RTS technology
  • Maximum gate weight: 2000kg
  • Maximum gate length: 20m
  • Motor power supply: 220V / 240V, 50 / 60Hz
  • Maximum power consumption: 750W
  • Type of use: Very intensive, 100%
  • Opening speed: 9 m/min
  • Torque: 40Nm
  • RTS radio frequency: 433.42MHz
  • Number of remote-control channels: 40 channels maximum
  • Number of storable channels: 32
  • Operating temperature: -20°C to +60°C
  • Lubrication: Oil bath
  • Noise level: Less than 70 dBA
  • Full-steel motor reducer gear
  • Built-in position encoder
  • Precise movement and slowing phase handling
  • Adjustable obstacle impact force
  • Dedicated safety input lines for photocells and safety edge
  • Up to 100 openings and closings per day

Use Cases

  • Industrial sliding gates
  • Commercial property entrances
  • Warehouse access gates
  • Community access gates
  • Heavy-duty parking entrances
  • Large sliding gates up to 20m
  • High-use access-control points
  • Sites requiring RTS radio control and safety accessory integration

Compatibility and Installation Notes

The SOMFY ELIXO 2000KG is compatible with sliding gates up to 2000kg and 20m, provided the gate structure, track, rollers, rack, foundation, electrical supply, photocells, safety edge, and end-stop arrangements are correctly prepared. Professional installation is strongly recommended because heavy gate automation needs accurate mechanical alignment, correct force adjustment, safe wiring, and proper safety-device testing. Installers should review the official Somfy Elixo 2000 product information before installation to confirm model suitability, safety inputs, setup guidance, and technical limits. (Somfy)

Packing Includes

  • 1 × SOMFY ELIXO 2000 RTS motor
  • 2 × Keytis 2 remote controls
  • 1 × Orange flashing light
  • 1 × Photocells Master Pro Bitech
  • 4 × Nylon rack 1m
  • 1 × Push button

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies the SOMFY ELIXO 2000KG with local product guidance, automation support, and practical advice for heavy-duty sliding gate applications. We help Abu Dhabi customers select the right motor based on gate weight, gate length, usage level, safety accessories, and installation conditions.

Buy SOMFY ELIXO 2000KG today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “SOMFY ELIXO 2000KG Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

A 100% duty (very intensive) rating on a 230V 2000 kg motor is exceptional. Most 230V motors at this weight class carry 50–70% duty, requiring rest periods between cycles. The SOMFY ELIXO 2000’s 750W motor with full-steel gearing and oil-bath lubrication can sustain continuous operation within its 100 daily cycles limit without enforced thermal rest intervals, making it one of the highest-duty 230V commercial sliding gate motors in the POWERgate Abu Dhabi range.

SOMFY’s RTS (Radio Technology Somfy) operates at 433.42 MHz rather than the standard 433.92 MHz used by most other gate motors in the range. RTS is a bidirectional rolling-code protocol where the motor confirms receipt of each command back to the transmitter. This is incompatible with standard 433.92 MHz remotes — only SOMFY RTS transmitters such as the included Keytis 2 2-channel remote work with the ELIXO 2000’s built-in RTS receiver. Existing non-SOMFY remotes cannot be used.

The SOMFY ELIXO 2000’s full-steel motor reducer gear is stronger and more wear-resistant than aluminium, bronze-aluminium, or mixed-metal gear trains used in lighter motors. At 2000 kg and 40 Nm torque, all-steel gearing sustains the sustained force without creep or deformation. The oil-bath lubrication provides constant film coverage across all gear surfaces, and at -20°C to +60°C, the oil maintains adequate viscosity for Abu Dhabi’s summer peak temperatures without thinning excessively.

The SOMFY ELIXO 2000 kit includes: 1× ELIXO 2000 RTS motor, 2× Keytis 2 RTS 2-channel remotes, 1× Master Pro Bitech photocell pair, 1× orange flashing light, 4× 1m nylon rack, and 1× push button. The Master Pro Bitech photocells use SOMFY’s Bitech wiring protocol for direct connection to the ELIXO control board. Maximum 32 storable RTS channels, expandable to 40. Foundation plate must be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
