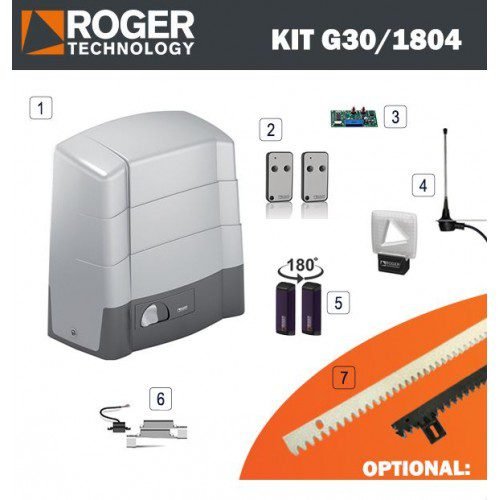

Roger G30/1804 sliding gate motor kit with remotes, receiver, antenna and rack
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Roger Technology G30/1804 1800kg Sliding Gate Motor

230V AC irreversible sliding gate motor for gates up to 1800 kg, with H70/104AC control unit, optical encoder, magnetic limit switch, 1200N thrust, IP44 protection, and Z17 module 4 gear.



AED 3,375

Product price:AED 3,375
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Roger G30/1804 motor is a 230V AC electromechanical sliding gate operator for gates up to 1800 kg. Built for commercial and industrial gate automation in Abu Dhabi, this irreversible motor includes an onboard H70/104AC control unit, optical encoder, and magnetic limit switch. Its 1200N thrust, 9.5 m/min manoeuvre speed, and IP44 protection make it suitable for heavy sliding gate systems where controlled movement and strong mechanical performance are required. The motor is completed with a fixing plate and tie rods for secure installation.

Key Features and Technical Specifications

  • Brand: Roger Technology
  • Model: G30/1804
  • Product type: Electromechanical sliding gate motor
  • Maximum gate weight: 1800 kg
  • Power line supply: 230V AC, 50Hz
  • Motor power supply: 230V AC
  • Power rating: 520W
  • Frequency of use: 50%
  • Thrust: 1200N
  • Operating temperature: -20°C to +55°C
  • Protection level: IP44
  • Reductor type: Irreversible
  • Manoeuvre speed: 9.5 m/min, 0.16 m/s
  • Motor thermal protection: 150°C
  • Incorporated condenser: 18 µF
  • Limit switch: Magnetic
  • Onboard control unit: H70/104AC
  • Encoder: Optical
  • Type exit gear: Z17, module 4
  • Maximum product dimensions: 346 × 180 × 362 mm
  • Product weight packed: 19.5 kg
  • Standard completion: Fixing plate with tie rods and magnetic limit switch

Use Cases

Compatibility and Installation Notes

Roger G30/1804 motor is compatible with sliding gates up to 1800 kg when the gate frame, track, rollers, rack, foundation, and travel path are properly prepared. The operator should be installed with suitable safety accessories such as photocells, warning light, and control devices according to the site risk assessment. Professional installation is recommended to ensure correct fixing, rack alignment, electrical wiring, magnetic limit switch setup, control unit programming, encoder testing, and safe force adjustment. For installation and technical details, check the official Roger Technology product page.

Packing Includes

  • Roger Technology G30/1804 sliding gate motor
  • Built-in H70/104AC control unit
  • Fixing plate with tie rods
  • Magnetic limit switch

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi provides local product support, reliable automation guidance, and professional assistance for customers choosing heavy-duty sliding gate motors in Abu Dhabi. We help buyers select the correct motor based on gate weight, usage frequency, site condition, and safety requirements.

Buy Roger G30/1804 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Roger Technology G30/1804 1800kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

ROGER Technology organises its sliding gate motors by series. The M30 series covers lighter residential gates (400 kg), the R30 series covers medium residential and commercial (600–1200 kg), and the G30 series covers heavy commercial and industrial gates at the top of the range — the G30/1804 handles 1800 kg at 1200N, 520W, and 19.5 kg. All three series share the same H70/104AC control unit, optical encoder, Z17 M4 pinion, and 9.5 m/min speed across the ROGER platform.

Yes — the Roger G30/1804’s 1200N thrust and 520W power are the highest published figures for any ROGER Technology sliding gate motor in the POWERgate Abu Dhabi range. The next highest are the R30/1204 at 800N and 420W. The G30/1804’s 1200N provides a substantial force margin above a 1800 kg gate’s rolling resistance, and its 18µF capacitor (same as the R30/1204) delivers the reactive current needed to start the higher-wattage motor reliably at 230V.

The Roger G30/1804 ships with motor, H70/104AC control unit, fixing plate with tie rods, and magnetic limit switch only. No receiver, remote controls, photocells, flashing light, rack, or push button are included. For a complete Abu Dhabi installation, all of these must be sourced separately. POWERgate Abu Dhabi can supply compatible ROGER accessories. This bare-component supply is typical of ROGER’s commercial-grade motors, which are specified by professional installers who source accessories per the site’s specific requirements.

The Roger G30/1804 and ROGER R30/1204 share 230V, H70/104AC, optical encoder, magnetic limit switch, Z17 M4, 18µF, 9.5 m/min, 50% duty, IP44, and 150°C thermal. The G30/1804 handles 1800 kg at 1200N, 520W, and 19.5 kg. The R30/1204 handles 1200 kg at 800N, 420W, and 16.7 kg. Both ship without remotes or photocells. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
