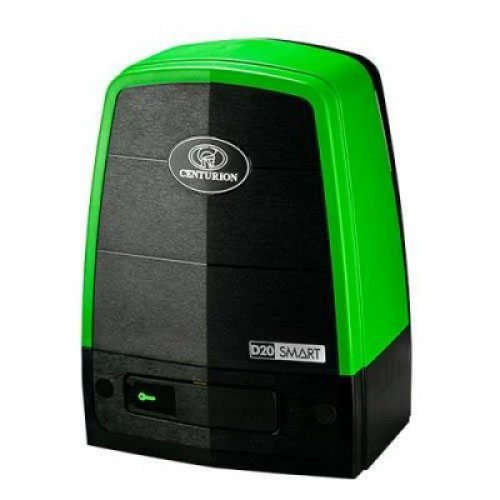

Centurion D20 SMART 2000kg Sliding Gate Motor

Heavy-duty 24V DC sliding gate operator for gates up to 2000kg and 25m, with electronic collision sensing, Hall Effect positioning, IP54 protection and rolling-code receiver.



AED 3,675

Product price:AED 3,675
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Centurion D20 Smart is a heavy-duty sliding gate motor designed for large commercial, industrial, and high-traffic gate automation in Abu Dhabi. Officially known as the D20 SMΔRT sliding gate operator, this motor is built for gates weighing up to 2000kg and up to 25m in length. It uses SMART technology, a 24V DC motor system, electronic collision sensing, Hall Effect position control, and a secure rolling-code onboard receiver. With a gate speed of up to 18m/min depending on load, the Centurion D20 Smart is suitable for demanding sites that require strong, reliable, and intelligent sliding gate operation.

Key Features and Technical Specifications

  • Official product name: D20 SMΔRT Sliding Gate Operator
  • Brand: Centurion Systems
  • Application: Heavy industrial and commercial sliding gates
  • Maximum gate weight: 2000kg
  • Maximum gate length: 25m
  • Maximum gate speed: Up to 18m/min, varies with load
  • Maximum operations per day: 750
  • Input voltage: 90V–240V AC ±10% @ 50Hz
  • Current consumption on mains: 250mA
  • Battery charger output: 1.8A @ 27.4V ±1%
  • Motor voltage: 24V DC
  • Motor power supply: Battery-driven, standard capacity 2 × 7.2Ah
  • Motor current at rated load: 9A
  • Duty cycle with mains present: 45%
  • Motor push force starting: 52kgf
  • Motor push force rated: 39kgf
  • Manual override: Lockable lever with key release
  • Drive pinion: 13T Module 4
  • Collision sensing: Electronic
  • Operating temperature range: -15°C to +50°C
  • Onboard receiver type: CENTURION rolling code, Keeloq encryption, multichannel
  • Receiver code storage capacity: 1500 remotes
  • Receiver frequency: 433.92MHz
  • Degree of protection: IP54
  • Packed unit mass with standard kit, excluding rack and battery: 13kg
  • Packaging dimensions with standard kit, excluding rack and battery: 350mm wide × 282mm deep × 470mm high

Use Cases

Compatibility and Installation Notes

Centurion D20 Smart is compatible with sliding gates within the manufacturer’s rated limits of up to 2000kg gate weight and 25m gate length. The gate must be mechanically sound, correctly aligned, and fitted with suitable rack, foundation plate, cabling, safety beams, and access control accessories where required. Professional installation is recommended because correct motor positioning, rack meshing, origin marker setup, collision-force settings, and safety testing are essential for reliable and safe operation. For more technical installation guidance, refer to the Centurion Systems official installation manual.

Packing Includes

  • Exact standard kit contents: Not specified by manufacturer

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products with local support, technical guidance, and professional assistance for heavy-duty sliding gate motor requirements. We help customers choose the correct motor capacity, safety accessories, and installation setup for reliable gate automation performance.

Buy Centurion D20 Smart today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Centurion D20 SMART 2000kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

Both the Centurion D20 SMART and the Centurion D10 SMART share 24V battery-driven motor, 90–240V input, 750 daily operations, 1500-remote receiver, Hall Effect position control, electronic collision sensing, IP54, and MyCENTSYS Pro SMART. The D20 handles 2000 kg at 18 m/min, 52kgf starting force, 13T M4 pinion, 45% duty, and 25m max leaf. The D10 handles 1000 kg at 26 m/min, 40kgf starting, 17T M4, and 50m leaf. For gates above 1000 kg in Abu Dhabi, the D20 is the correct CENTURION specification.

The Centurion D20 SMART uses a 13-tooth Module 4 pinion versus the D10 SMART’s 17-tooth M4 pinion. Fewer teeth on the drive pinion means a lower gear ratio between the motor shaft and the rack, producing higher force per motor revolution at a lower linear speed. This is why the D20 delivers a higher starting force of 52kgf vs the D10’s 40kgf, while moving at 18 m/min instead of the D10’s 26 m/min. For a 2000 kg gate, maximum starting force is more critical than gate speed, making the 13T pinion the correct choice.

The Centurion D20 SMART’s Keeloq encryption is a proprietary rolling-code algorithm developed by Microchip Technology, widely used in vehicle remote keyless entry and high-security gate automation. Each button press sends a new encrypted code, and the receiver discards any code used more than once. Keeloq’s specific cryptographic strength makes it resistant to code-grabbing attacks, where a device captures and replays a transmitted gate code to gain unauthorised access. For Abu Dhabi commercial and industrial sites where gate security is a priority, Keeloq-encrypted remotes provide a meaningful additional layer beyond basic rolling code.

The Centurion D20 SMART’s 250mA mains current consumption is the standby draw — the power consumed by the control board and battery charger circuit when the motor is idle. The 24V battery system absorbs the 9A motor current during gate movement directly from the batteries, not from the mains. Mains only charges the batteries at 1.8A / 27.4V between cycles. This architecture means the mains supply sees only the charger’s draw at 250mA standby and the charging rate between gate operations, keeping the installation’s electrical circuit requirements minimal despite the 2000 kg motor capacity.

The Centurion D20 SMART carries a 24-month CENTURION warranty. Exact kit contents are not specified by the manufacturer — confirm what is included before ordering with POWERgate Abu Dhabi. Batteries (2 × 12V 7.2Ah) are not supplied and must be purchased separately. The charger output is 1.8A at 27.4V; sealed lead-acid batteries are required. Safety beams, rack, foundation plate, and access control accessories must be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
