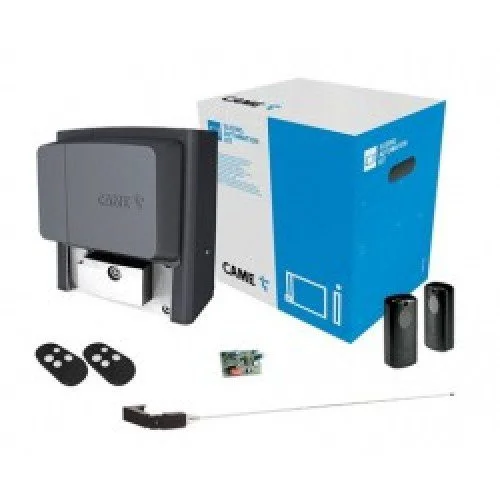

CAME BKS22TLS sliding gate motor kit with blue box, remotes and photocells
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

CAME BKS22TLS 2200kg 23m Sliding Gate Motor

Three-phase CAME BKS22TLS sliding gate motor for heavy gates up to 2200 kg, with IP44 housing, 10.5 m/min speed, 1650 N thrust and module 6 pinion for industrial gate automation use.



AED 5,875

Product price:AED 5,875
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

CAME BKS22TLS 2200kg Sliding Gate Motor is a heavy-duty three-phase operator for large sliding gates in Abu Dhabi. This model is listed by CAME under code 801MS-0131 and is designed for sliding gates up to 2200 kg and up to 23 m in length. It suits demanding commercial, industrial, and high-traffic gate automation where strong movement, reliable operation, and professional safety setup are required. Official CAME data confirms 230/400 V AC three-phase operation, 520 W power, 10.5 m/min manoeuvring speed, IP44 protection, 1650 N thrust, and module 6 pinion.

Key Features and Technical Specifications

  • Brand: CAME
  • Product model: BKS22TLS
  • CAME product code: 801MS-0131
  • Product type: Sliding gate gearmotor / operator
  • Maximum gate weight: 2200 kg
  • Maximum gate length: 23 m
  • Power supply: 230/400 V AC three-phase, 50/60 Hz
  • Motor power supply: 230/400 V AC three-phase
  • Power: 520 W
  • Absorption: 1.5 A
  • Manoeuvring speed: 10.5 m/min
  • Thrust: 1650 N
  • Pinion module: 6
  • Protection rating: IP44
  • Operating temperature: -20°C to +55°C
  • Cycles per hour: 14
  • Mechanical limit switch: Yes
  • Compatible control panels listed by CAME: 002ZT6 and 002ZT6C
  • Safety-device self-diagnosis available through compatible ZT6 / ZT6C control panels
  • Warranty: Not specified by manufacturer

Use Cases

  • Heavy residential sliding gates
  • Commercial entrance gates
  • Industrial sliding gates
  • Warehouse access gates
  • Office and facility entrance automation
  • Parking entrance sliding gates
  • High-traffic controlled access systems
  • Apartment block sliding gate automation

Compatibility and Installation Notes

The CAME BKS22TLS 2200kg Sliding Gate Motor is suitable for large sliding gates that match the manufacturer’s weight, length, power, and mechanical limits. Installation requires a correct foundation base, rack-and-pinion alignment, mechanical gate stops, stable ground rails, safety devices, and a compatible CAME three-phase control panel such as ZT6 or ZT6C. Professional installation is strongly recommended because incorrect wiring, poor gate balance, missing safety edges, or weak anchoring can damage the motor and create safety risks. For technical product reference, see the official CAME BK sliding gate automation page. The installation manual also states that this product must be installed by skilled, qualified technicians.

Packing Includes

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products locally with practical product guidance, installation support, and after-sales assistance for residential, commercial, and industrial gate automation needs. We help customers choose the right motor according to gate weight, gate length, power supply, and site condition instead of selling the wrong product blindly.

Buy CAME BKS22TLS today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “CAME BKS22TLS 2200kg 23m Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

Both handle 2200 kg at 10.5 m/min with IP44 and CAME Connect compatibility. The CAME BKS22TLS steps up with 23m max leaf, three-phase 230/400V exclusively, 1650N thrust, Module 6 pinion only, 14 cycles/hour, and motor-only packing requiring a separate ZT6/ZT6C control panel. The CAME BK 2200 offers 20m max leaf, single or three-phase option, M4 or M6 pinion choice, and a complete kit. Choose the BKS22TLS for maximum leaf span, three-phase industrial sites, and highest-thrust operation; the BK 2200 for a more complete ready-to-install package.

Yes — the CAME BKS22TLS’s 23m maximum gate leaf length is the longest of any sliding gate motor in the POWERgate Abu Dhabi range, exceeding the CAME BK 1800 and BK 2200 at 20m. A 23m sliding gate represents an extremely large industrial or perimeter gate — typical at Abu Dhabi logistics hubs, airport perimeter facilities, military or government compound entrances, and very large private estate boundaries. At 23m, the gate’s track, rollers, and Module 6 rack alignment are critical: even minor rack misalignment across 23m creates significant pinion stress at the motor.

The CAME BKS22TLS packing contains the motor only (801MS-0131). A compatible CAME ZT6 or ZT6C three-phase control panel must be purchased separately before the system can operate. The ZT6/ZT6C also enables the safety-device self-diagnosis function. Additionally, remote controls, photocells, safety edges, flashing light, push button, rack, and foundation plate must all be sourced independently. For Abu Dhabi buyers, POWERgate Abu Dhabi can supply the matching ZT6/ZT6C and full accessory set for the BKS22TLS installation.

The CAME BKS22TLS’s 1650N thrust is the highest published CAME BK thrust value in the range, generating the force needed at Module 6 pinion engagement to move a 2200 kg gate. The published 14 cycles per hour specifies the maximum operational frequency — approximately one full open-and-close cycle every 4 minutes. For Abu Dhabi commercial sites expecting higher vehicle throughput, this cycle rate limits peak-hour gate capacity. Sites requiring more than 14 cycles per hour need either a supplementary gate lane or a higher-duty motor specification.

The CAME BKS22TLS carries a 24-month CAME manufacturer warranty. Pre-installation requirements: confirm three-phase 230/400V supply at the gate location; source a ZT6 or ZT6C control panel separately before installation; specify Module 6 rack for the full gate span; prepare a reinforced concrete foundation rated for a 2200 kg gate at 1650N thrust. The -20°C to +55°C operating range covers Abu Dhabi year-round conditions. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
