BFT E5 BT A18 Swing Gate Opener

D-Track is BFT’s proprietary obstruction detection system built into the E5 BT A18. It uses the absolute encoder’s real-time position and speed data to calculate expected motor load at every point in the gate’s travel arc. If the actual load deviates from the expected curve — indicating an obstruction — D-Track triggers a stop or reversal within milliseconds. This is more precise than a standard electronic clutch (which detects load spikes against a fixed threshold), because D-Track accounts for the gate’s varying mechanical resistance throughout the full 14-second cycle. For gates operating on narrow 80mm pillar installations where installation geometry may create uneven load distribution, this adaptive detection is a meaningful safety advantage.

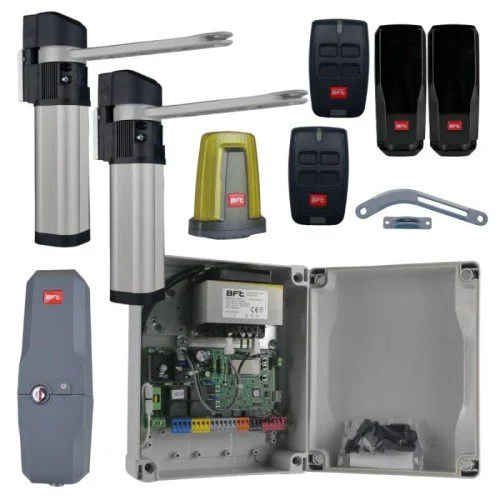

The BFT E5 BT A18 is engineered to install on gate pillars or columns as narrow as 80mm wide — significantly narrower than what most surface-mounted swing gate motors accommodate. This makes it the correct choice for Abu Dhabi villa entrances where the gate columns are slim stone, brick, or concrete pillars with limited bracket space. The operator is supplied with a primary lever arm, with an articulated arm or long slide lever available as an add-on depending on the specific installation geometry. The kit also includes both fixing brackets and wall brackets, giving the installer flexibility in how the motor is mounted to the column structure.

The THALIA BT A80 is BFT’s advanced control board supplied with the E5 BT A18 kit. The BT designation stands for Bluetooth, meaning the THALIA BT A80 supports wireless configuration and diagnostics via a Bluetooth-connected device without needing physical access to the control board terminals. This is a significant advantage for service and commissioning — a technician can adjust force settings, encoder limits, and timing parameters using a smartphone or tablet at distance. The THALIA BT A80 also supports interconnectivity (listed as “Yes” in the E5 BT A18 specs), meaning it can be networked with other BFT THALIA-compatible devices for multi-point access control across a property.

The E5 BT A18 is rated at 20 cycles per hour — BFT specifies this model’s frequency in cycles-per-hour rather than a percentage duty cycle. At a 14-second cycle time, each open/close sequence takes approximately 30 seconds including dwell time, meaning 20 cycles per hour represents one full gate operation every 3 minutes sustained continuously. For an Abu Dhabi residential villa gate handling 10–20 daily vehicle movements, this capacity is more than adequate. For a small commercial entrance with occasional queuing, the 20 cycles/hour rating means the E5 BT A18 can manage moderate traffic flow without overheating or requiring rest intervals.

The BFT E5 BT A18 carries a 24-month manufacturer warranty from the purchase date covering material and workmanship defects under normal use. Because this model uses a 24V reversible motor with absolute encoder control, warranty is particularly sensitive to incorrect power supply connections and encoder wiring errors — both of which can permanently damage the encoder or motor driver circuitry. The IP44 protection rating means the motor must be installed in a location offering reasonable shelter from direct dust exposure; installations in open, fully exposed positions risk moisture ingress that would void the IP44 seal. POWERgate Abu Dhabi handles all warranty claims locally — contact us on WhatsApp (+971 50 884 4933) or at sales@powergatead.com.
