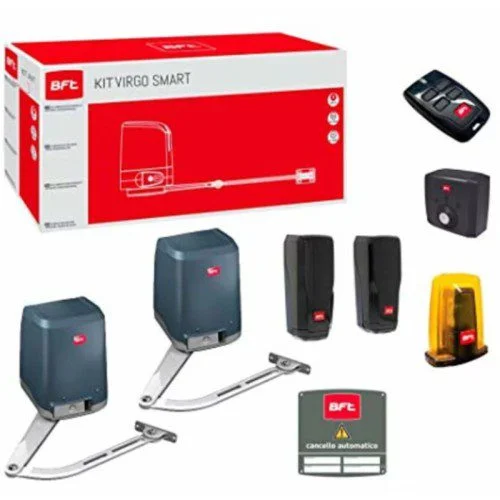

BFT VIRGO SMART BT A 20 Swing Gate Opener Kit

The BFT VIRGO SMART BT A 20 master operator has the THALIA control unit built directly into the motor housing — there is no separate control panel box to mount on a pillar or inside a gate post. This is a significant installation simplification: the installer only needs to wire the 230V board power supply to the master operator, connect the master to the slave via a two-wire U-Link cable, and connect the photocells and flashing light to the master’s terminals. The result is a cleaner installation with fewer enclosures, fewer cable runs, and no separate panel mounting points. For Abu Dhabi villa installations where pillar space is limited or the gate post is too narrow for a standard external control box, the integrated design removes a common constraint.

The BFT VIRGO SMART BT A 20 uses an electronic torque limiter for obstruction detection — a mechanism that monitors the motor’s output torque and cuts power when the measured torque exceeds a pre-set limit, indicating the gate has met an obstruction. This differs from D-Track (which uses encoder position data to calculate expected load at each gate position) and an electronic clutch (which detects load spikes via motor current draw against a fixed threshold). The torque limiter is specific to the VIRGO SMART’s articulated arm and integrated control unit design, where the motor’s torque output can be precisely measured and capped within the integrated THALIA board without additional sensing hardware. For a light 200 kg gate at 2.0m, the torque limiter provides responsive safety protection well-matched to the motor’s compact power output.

U-Link is BFT’s two-wire communication protocol connecting the master and slave operators — all motor commands, status signals, and D-Track data travel over this single pair of wires, replacing the multi-wire conventional wiring between two gate operators. EE LINK is BFT’s energy-efficient communication standard enabling the integrated THALIA board to maintain active monitoring of the slave operator’s status with minimal standby power consumption — complying with European low-energy standby regulations. ER-READY indicates the VIRGO SMART is prepared for BFT’s Emergency Release system integration, meaning an automatic emergency release device can be added to unlock the gate remotely in a fire, power emergency, or access-control failure scenario. Together, these three technologies make the VIRGO SMART the most connectivity-rich articulated arm swing gate motor in the POWERgate Abu Dhabi range.

Both are 24V articulated arm motors for residential swing gates, but they target different gate sizes and integration levels. The VIRGO SMART handles up to 2.0m and 200 kg at 110W with an integrated control unit, U-Link master-slave, electronic torque limiter, and ER-READY. The IGEA BT handles up to 2.5m and 250 kg at 40W with a separate THALIA board, standard wiring, and D-Track. The IGEA BT opens to 125° versus the VIRGO SMART’s 120°. The IGEA BT is rated intensive use; the VIRGO SMART is semi-intensive. For simple residential installations preferring a standard external control box, the IGEA BT is the more economical fit. For premium installations prioritising minimal wiring, integrated intelligence, and ER-READY connectivity, the VIRGO SMART is the step up.

The BFT VIRGO SMART BT A 20 carries a 24-month manufacturer warranty from purchase covering material and workmanship defects. Because the THALIA control unit is integrated inside the master operator housing, any damage to the control electronics — from power surges on the 230V supply, incorrect U-Link wiring causing a short, or moisture ingress through the IP44 housing — affects the entire master unit and is not field-repairable in the same way as a separate external control box. Surge protection on the 230V input is especially important for the VIRGO SMART’s integrated design. The electronic torque limiter must also be calibrated during commissioning — if set too low for the gate’s actual startup inertia, the motor will repeatedly trigger safety stops, stressing the articulated arm mechanism. POWERgate Abu Dhabi handles all warranty claims locally — contact us on WhatsApp (+971 50 884 4933) or at sales@powergatead.com.
