Product Overview

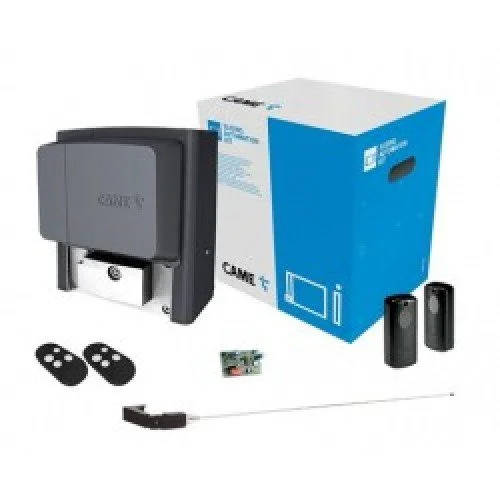

CAME BX704ALS motor is a 230 V AC sliding gate automation system for residential gates up to 400 kg and 14 m leaf length. It is suitable for Abu Dhabi homes, villas, and controlled property entrances where safe, smooth, and reliable gate movement is required. The operator includes an electronic board with programming display, built-in radio decoding, movement control, obstacle detection, and mechanical limit switches. Official CAME data identifies the product as model BX704ALS, code 801MS-0021, designed for residential sliding gate automation.
Key Features and Technical Specifications
- Brand: CAME
- Model: BX704ALS
- Product code: 801MS-0021
- Product type: Sliding gate motor / automation operator
- Application: Residential sliding gates
- Maximum gate weight: 400 kg
- Maximum gate leaf length: 14 m
- Power supply: 230 V AC, 50/60 Hz
- Motor power supply: 230 V
- Absorption: 1.5 A
- Power: 320 W
- Manoeuvring speed: 10.5 m/min
- Duty cycle: 30%
- Cycles per hour: 17
- Thrust: 600 N
- Pinion module: 4
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
- Movement control: Encoder-based
- Limit switches: Mechanical
- Control board: Electronic board with terminal blocks and programming display
- Radio decoding: Built-in
- User memory: Up to 250 users
- Safety inputs: Configurable for 8k2Ω resistive sensitive safety edges
- Safety diagnostics: Self-diagnosing safety devices
- CAME Connect technology: Supported via gateway or locally via CAME KEY
- EN compliance: Tested in compliance with EN 12453 standards
Use Cases
- Residential sliding gates
- Villa entrance gates
- Private parking entrances
- Home access automation
- Gated property entrances
- Light commercial gates where the gate weight and duty cycle are suitable
- Replacement for existing compatible CAME BX704ALS / 801MS-0021 installations
Compatibility and Installation Notes
The CAME BX704ALS motor is compatible with sliding gates up to 400 kg and 14 m leaf length using a module 4 rack system and 230 V AC power supply. Installation should include secure motor fixing, accurate rack alignment, mechanical limit switch setting, photocell positioning, safety edge configuration where required, transmitter programming, and complete force/safety testing before use. Professional installation is strongly recommended because this operator includes mains electrical wiring, moving gate mechanics, obstacle detection, and EN 12453 safety compliance requirements. For official product details, check the CAME BX technical information.
