Product Overview

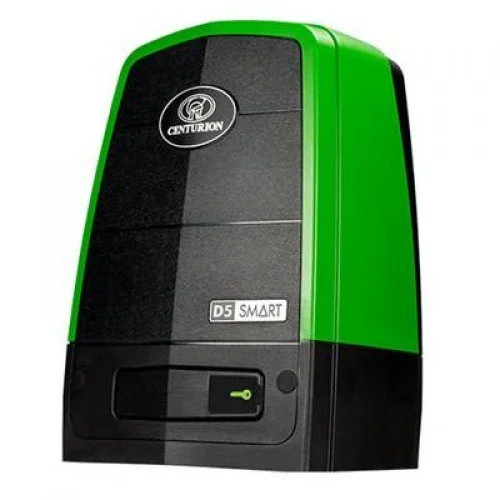

D5 SMART Gate Motor is a high-speed CENTURION sliding gate automation system for Abu Dhabi customers who need reliable access control for domestic and light-industrial gates. Designed for gates up to 500kg, it combines 24V DC operation, smartphone-based setup, electronic collision sensing, and onboard code-hopping receiver technology. The motor supports advanced diagnostics, intelligent logging, configurable inputs and outputs, and a lockable manual override for secure daily operation. Its IP55 protection and battery-driven motor design make it suitable for demanding outdoor gate automation where speed, safety, and dependable backup operation matter.
Key Features and Technical Specifications
- Official product name: CENTURION D5 SMART
- Gate type: Sliding gate automation
- Maximum gate mass: 500kg
- Maximum gate length: 100m
- Input voltage: 90V – 240V AC +/-10% @ 50Hz
- Current consumption on mains: 200mA
- Battery charger current output: 1.3A
- Maximum operations per day: 150
- Duty cycle with mains present: 50%
- Motor voltage: 24V DC
- Motor power supply: Battery-driven, standard capacity 2 x 12V
- Motor current consumption at rated load: 13A
- Starting push force: 30kgf
- Rated push force: 17kgf
- Gate speed: 35m/min @ 17kgf
- Manual override: Lockable with key release
- Standby operations with 2 x 7Ah battery: up to 183 full-day operations in Power Saving mode
- Collision sensing: Electronic
- Operating temperature range: -15°C to +50°C
- Onboard receiver: Code-hopping multichannel receiver
- Receiver storage capacity: 1500 remotes
- Receiver frequency: 433.92MHz
- Degree of protection: IP55
- Smartphone setup and configuration supported
- Advanced diagnostics, logging, and reporting
- Improved theft-resistant cage with patented design
- Vibration sensor for tamper notification through a third-party device
- Intelligent battery charger with onboard diagnostics
- Individually configurable inputs and outputs
- Packed unit mass with standard kit, excluding rack and battery: 9.1kg
Use Cases
- Residential sliding gates
- Villa entrance gates
- Light-industrial sliding gates
- Commercial property gates
- Parking entrance automation
- Small compound access control
- Warehouses with medium-weight sliding gates
- Automated security entrances requiring fast gate movement
Compatibility and Installation Notes
The D5 SMART Gate Motor is compatible with sliding gates up to 500kg and up to 100m gate length, provided the gate structure, rack alignment, power supply, safety devices, and travel path are correctly prepared. Professional installation is strongly recommended because incorrect mounting, poor rack alignment, unsafe wiring, or missing safety accessories can damage the motor and create safety risks for vehicles and pedestrians. Installers should follow the official CENTURION D5 SMART technical information before setup, wiring, commissioning, and safety testing.
Packing Includes
- CENTURION D5 SMART sliding gate motor/operator
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies reliable gate automation products with local support, professional product guidance, and after-sales assistance for Abu Dhabi customers. We help buyers choose the correct motor capacity, compatible accessories, and installation approach for safe long-term gate operation.
Buy D5 SMART today from POWERgate abu dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
