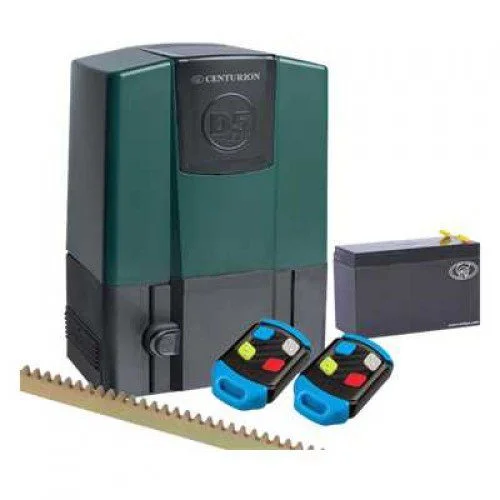

Centurion D5 Evo sliding gate motor kit with remotes, battery and gate rack
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

CENTURION D5-Evo 500kg Sliding Gate Motor

12V CENTURION D5-Evo operator for sliding gates up to 500kg, with battery backup, LCD setup, intelligent speed control, 433MHz onboard receiver, D-Series controller and electronic collision sensing.





AED 1,180

Product price:AED 1,180
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

D5 Evo Sliding Gate Motor is a reliable CENTURION automation solution for residential and light-industrial sliding gates in Abu Dhabi. Designed for gates weighing up to 500kg, it combines battery backup, intelligent speed control, smooth acceleration and deceleration, and an easy LCD-based setup interface. The motor supports secure access control through its onboard CENTSYS code-hopping multichannel receiver. With anti-crushing protection, intruder-detection alarm modes, and configurable operating features, the D5-Evo is suitable for customers who need strong, safe, and practical gate automation for daily use. A similar 500kg sliding gate motor is the KINGgates Dynamos 500.

Key Features and Technical Specifications

  • Product model: CENTURION D5-Evo
  • Product type: Sliding gate motor/operator
  • Application type: Domestic and light-industrial sliding gates
  • Maximum gate weight: 500kg
  • Input voltage: 90–240V AC ±10%, 50Hz
  • Motor voltage: 12V DC
  • Motor power supply: Battery-driven with charger
  • Rated push force: 17kgf
  • Gate speed at push force below 5kgf: 22m/min
  • Gate speed at rated push force: 18m/min
  • Duty cycle with mains present: 50%
  • Maximum daily cycle: 150 cycles
  • Battery backup: Yes
  • Intelligent speed control: Yes
  • Smooth acceleration and deceleration: Yes
  • LCD user interface: Yes
  • Intruder-detection alarm modes: Yes, requires safety beams
  • Onboard receiver: CENTSYS code-hopping multichannel receiver
  • Receiver frequency: 433.92MHz
  • Receiver storage capacity: 500 transmitter buttons
  • Collision sensing: Electronic
  • Degree of protection: IP54
  • Operating temperature: -15°C to +50°C
  • Packed unit mass: 10kg
  • Packaging dimensions: 303mm length × 231mm width × 432mm height

Use Cases

Compatibility and Installation Notes

The CENTURION D5-Evo is compatible with sliding gates up to 500kg where the gate structure, track, rack alignment, safety beams, power supply, and opening/closing travel are correctly prepared. Professional installation is strongly recommended because incorrect rack spacing, poor gate movement, missing safety devices, or unsuitable wiring can reduce performance and create safety risks. For technical setup guidance, refer to the official CENTSYS D5-Evo product information before installation.

Packing Includes

  • CENTURION D5-Evo sliding gate motor/operator

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable gate automation products with local support, product guidance, and professional assistance for Abu Dhabi customers. We help buyers choose the correct sliding gate motor based on gate weight, site usage, safety needs, and installation requirements.

Buy CENTURION D5-Evo today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “CENTURION D5-Evo 500kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

Both the Centurion D5-Evo and the Centurion D5 SMART handle 500 kg at 150 daily cycles, 50% duty, battery backup, electronic collision sensing, and IP54. The D5-Evo uses a 12V DC motor, LCD user interface, 18–22 m/min, 500 transmitter buttons, and intruder-detection alarm modes at AED 1,180. The D5 SMART uses a 24V DC motor, smartphone/MyCENTSYS app, 35 m/min, 1500 remotes, IP55, vibration sensor, and patented cage at AED 1,775. Choose the D5-Evo for straightforward residential use at lower cost; the D5 SMART for higher speed and smart connectivity.

Yes — the Centurion D5-Evo’s 12V DC motor is the only 12V motor in the CENTURION sliding gate range at POWERgate Abu Dhabi. The D5 SMART, D10 SMART, D10 Turbo, and D20 SMART all use 24V DC motors. The 12V architecture means the D5-Evo is compatible with standard 12V sealed lead-acid batteries available widely in Abu Dhabi, and the charger circuit is simpler. The trade-off is lower motor efficiency and speed compared to the 24V D5 SMART, which delivers 35 m/min versus the D5-Evo’s 18–22 m/min from the same 500 kg gate weight class.

The Centurion D5-Evo’s speed varies with gate resistance: it reaches 22 m/min when the push force is below 5 kgf (a light, well-balanced gate on good rollers) and slows to 18 m/min at its rated 17 kgf load (a heavier or slightly stiff gate with more rolling resistance). This is the natural characteristic of a 12V DC motor without active speed regulation — more resistance draws more current and reduces speed. A well-maintained Abu Dhabi villa gate on new rollers with correct rack alignment will operate closer to the 22 m/min figure.

The Centurion D5-Evo includes intruder-detection alarm modes that use the connected safety beams as a detection perimeter. When the gate is closed and armed, an object or person breaking the safety beam triggers an alarm output. This repurposes the photocell infrastructure already required for gate safety into a basic perimeter intrusion detection system without additional sensors. For Abu Dhabi villa or compound gates that are closed overnight, the intruder-detection mode adds a security layer beyond standard gate automation at no extra hardware cost, provided safety beams are correctly installed and aligned.

The Centurion D5-Evo carries a 24-month CENTURION warranty. Standard packing contains the motor unit only. Batteries, rack, photocells (required for intruder-detection modes), flashing light, remote controls, push button, and foundation plate must all be sourced separately. At AED 1,180, the D5-Evo is the most affordable CENTURION sliding gate motor in the POWERgate Abu Dhabi range. The LCD user interface guides commissioning without a smartphone or app. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
