Product Overview

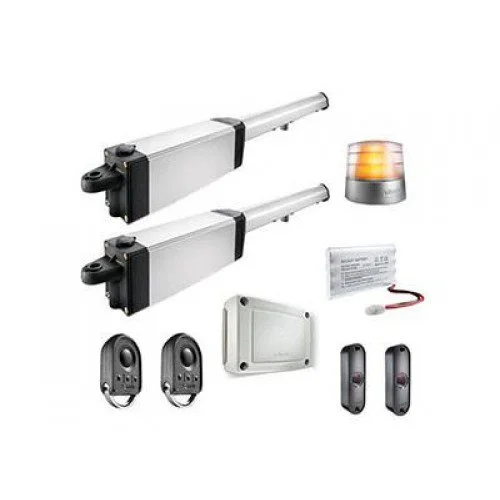

SOMFY Ixengo L 3S RTS is a screw motorization system for swing gates, designed for reliable gate automation in Abu Dhabi residential and commercial properties. It is suitable for iron-and-steel swing gates up to 4 m and 400 kg per leaf. The system uses a 24V motor with 220–230V mains supply, magnetic end limits, soft stop, adjustable torque, and RTS 433.42 MHz radio technology. Its non-reversing mechanism helps resist wind pressure and forcing, while individual-key unlocking allows manual operation when needed.
Key Features and Technical Specifications
- Brand: Somfy
- Product model: Ixengo L 3S RTS
- Product type: Screw motorization for swing gates
- Application: Swing gates for residential, commercial, and collective housing use
- Maximum leaf length: Up to 4 m
- Maximum leaf weight: Up to 400 kg per leaf
- Mains power supply: 220–230V, 50–60Hz
- Motor voltage: 24V DC
- Maximum power consumption: 40 W
- Lighting output: 500 W maximum
- Accessories power supply: 24V DC / 1,200 mA
- Thrust force: 2,000 N
- Working stroke: 465 mm
- Opening time to 90°: 10 to 34 seconds, depending on installation
- RTS radio frequency: 433.42 MHz
- Number of remote controls: 40 channels maximum
- Protection index: IP44
- Operating temperature: -20°C to +60°C
- Magnetic end limit
- 3S control box: quick installation, customizable, and intuitive
- Soft stop and adjustable torque
- Non-reversing mechanism for resistance against wind pressure or forcing
- Easy secured declutching with individual key
- Compatible with solar power supply where mains electricity is difficult to obtain
Use Cases
- Abu Dhabi villa swing gates
- Residential iron-and-steel gates
- Commercial entrance gates
- Collective housing swing gates
- Private property access gates
- Parking entrance swing gates
- Medium to heavy swing gate automation
Compatibility and Installation Notes
SOMFY Ixengo L 3S RTS is compatible with swing gate leaves up to 4 m and 400 kg per leaf, subject to correct gate structure, hinge condition, pillar space, and site installation requirements. The manufacturer specifies a minimum room behind the leaf of 160 mm and maximum hinge pin offset of 183 mm. Professional installation is recommended for motor alignment, bracket fixing, control box programming, end-limit setting, safety accessory connection, and force testing. For technical reference, check the Somfy UAE access brochure.
